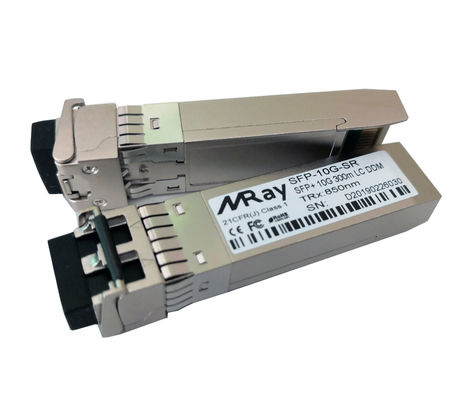

Product Details:
|
| Product Name: | 10G Dual Fiber MM 300m LC | Rate: | 10G |
|---|---|---|---|
| Connector: | Dual LC Connector | Wavelength: | 850nm |
| Distance: | 300m | Fiber Type: | MMF |
| Application: | Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network, | Operating Temperature: | 0°C To 70°C |
| Compatible: | Cisco, Huawei, HP, Finisar | Certification: | CE RoHS FCC ISO9001 |
| Warranty: | 3 Years | ||
| High Light: | ISO9001 cisco 10g sfp sr,MMF sfp+ lc sr,Dual LC sfp+ lc sr |
||
Miray’s SFP+ SR is specifically designed for the high performance integrated duplex data transmission over multi mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-SR/SW base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L.
● Duplex LC Connector
● Support hot-pluggable
● Metal with lower EMI
● Excellent ESD protection
● VCSEL Transmitter and PIN Receiver
● Typical Center Wavelength:850nm
● Max link length up to 300m on MMF
● RoHS Compliant and Lead-Free
● Digital diagnostic compatible with SFF-8472
● Case Operation Temperature:-5℃~+70℃
● Single 3.3V power supply and Low power dissipation <1.0W
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Notes |
|
Power Supply Voltage |
Vcc |
3.13 |
3.30 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
- |
- |
300 |
mA |
|
|
Case Operating Temperature |
Top |
-5 |
- |
70 |
°C |
|
|
Data Rate |
- |
- |
10.3125 |
- |
Gb/s |
|
|
9/125um G652 SMF |
Lmax |
- |
- |
300 |
m |
|
|
Baud Rate Tolerance |
|
-100 |
|
+100 |
ppm |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Note |
Unit |
|
Transmitter |
||||||
|
Nominal Wavelength |
λ |
840 |
|
860 |
|
nm |
|
Optical Output Power |
Pav |
-6 |
|
0.5 |
|
dBm |
|
Extinction Ratio |
ER |
3 |
|
|
|
dB |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
|
dB/Hz |
|
Transmitter |
||||||
|
Center Wavelength |
λC |
840 |
|
860 |
|
nm |
|
Receiver Sensitivity@8.5Gb/s |
RSENSE |
|
|
-11.5 |
1 |
dBm |
|
Receiver Sensitivity@10.52Gb/s |
RSENSE |
|
|
-11 |
1 |
dBm |
|
Average Receiver Power |
Pavg |
|
|
0.5 |
|
dBm |
|
LOS Assert |
LOSA |
-30 |
|
|
|
dBm |
|
LOS De-Assert LOS |
LOSD |
|
|
-12 |
|
dBm |
|
LOS Hysteresis |
|
0.5 |
|
|
|
dB |
