| Brand Name: | Trixon |
| Model Number: | TPS-TG40-55DCR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |

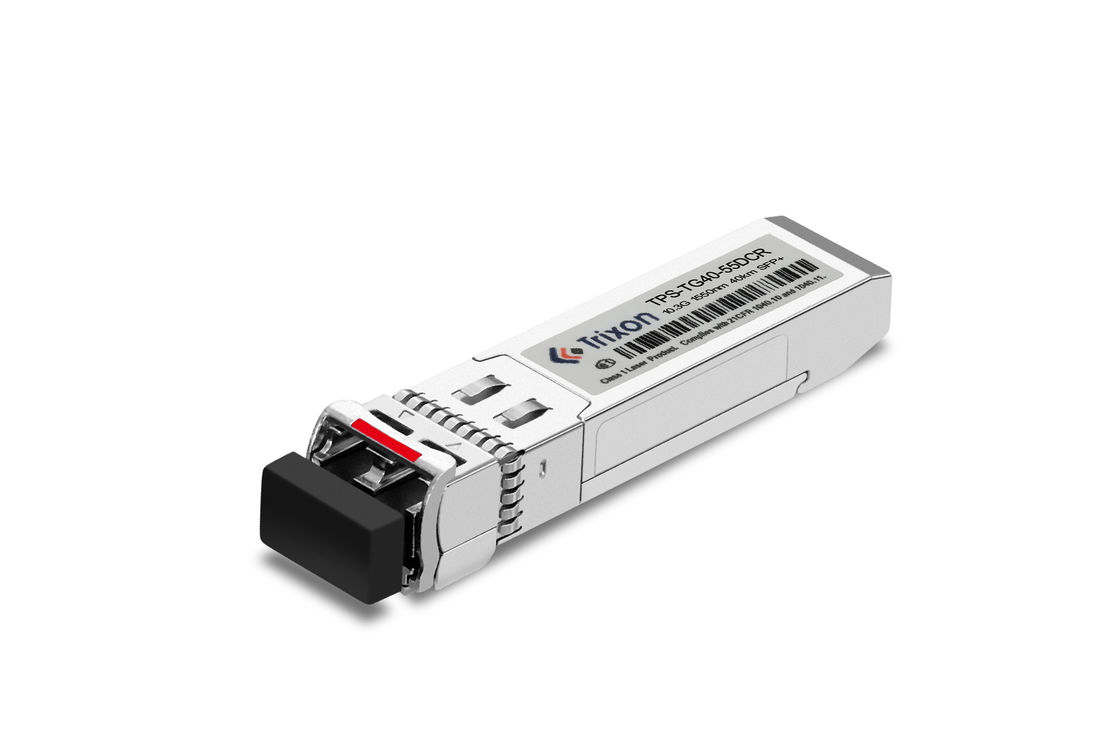

10G SFP+ Transceiver Module, 40km,1550nm-EML,-5℃~+70℃,TPS-TG40-55DCR
The 10G SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module, specifically designed for high-speed communication links that require 10G bandwidth. It is equipped with Duplex LC Connector Interface and is compatible with SMF (Single-Mode Fiber) cables. It features a wavelength of 1310nm-DFB, allowing for efficient and reliable data transmission. This module is also DDM/DOM (Digital Diagnostic Monitoring) enabled, providing greater accuracy and reliability in its performance. The 10G SFP+ Transceiver Module is an ideal choice for any 10G network application.
| Properties | Details |
|---|---|
| Fiber Type | SMF |
| Wavelength |
1550nm-EML |
| Distance | 40km |
| Product Name | 10G SFP+ Transceiver Module |
| DDM/DOM | Yes |
| Compliant | Compliant With MSA SFP Specification |
| Temperature Range | -5℃~+70℃ |
| Data Rate | Operating Data Rate Is 11.3Gbps |
| Optical Interface | Duplex LC Connector Interface |
Performance Specifications – Optical
(1550nm EML and PIN,40km)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1530 | - | 1565 | nm |
| Spectral Width (-20dB) | Δλ | - | - | 0.3 | nm |
|
Side Mode Suppression Ratio |
SMSR | 30 | - | - | dB |
| Average Output Power*note11 | Pout | -4 | - | 4.7 | dBm |
| Extinction Ratio | ER | 3 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 3.0 | dB |
| Optical Return Loss Tolerance | ORLT | - | - | 21 | dB |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1265 | - | 1610 | nm |
| Receiver Sensitivity*note12 | SEN | - | - | -15.8 | dBm |
| Receiver Overload | Pmax | -1 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -16.5 | dBm |
| LOS Assert | LOSA | -30 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Note11: Output is coupled into a 9/125um SMF. The typical value is +0.5dBm.
Note12: Measured with a PRBS 231-1 test pattern @10.3125Gbps, BER≤10-12.
Trixon TPS-TG40-55DCR SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module with a Duplex LC Connector Interface. It is compliant with MSA SFP Specification, with a Fiber Type of SMF and a Wavelength of 1310nm-DFB. It has a Temperature Range of -5℃~+70℃.
The Trixon TPS-TG40-55DCR SFP+ Transceiver Module is designed for various applications and scenarios, such as optical communication networks, data centers and enterprise networks. It can be used in 10 Gigabit Ethernet (10G), Fibre Channel and InfiniBand applications. It is suitable for short-range, high-speed interconnects, including switches and routers.
The Trixon TPS-TG40-55DCR SFP+ Transceiver Module offers a cost-effective solution for data center, enterprise, and storage applications. It is one of the most reliable and cost-effective solutions for high-speed interconnects. It is a great choice for customers who need to expand their network bandwidth and performance.
Small Form-Factor Pluggable Plus Transceiver Module
Brand Name: Trixon
Model Number: TPS-TG40-55DCR
Place of Origin: CHINA
Compliant: Compliant With MSA SFP Specification
Data Rate: Operating Data Rate Is 11.3Gbps
Optical Interface: Duplex LC Connector Interface
Product Name: 10G SFP+ Transceiver Module
Wavelength: 1550nm-EML
The technical support and services for SFP+ Transceiver Module include:
Reference Datasheet File code: DS090010
|
|
