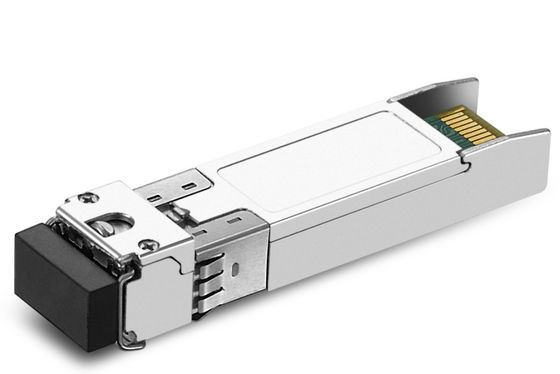

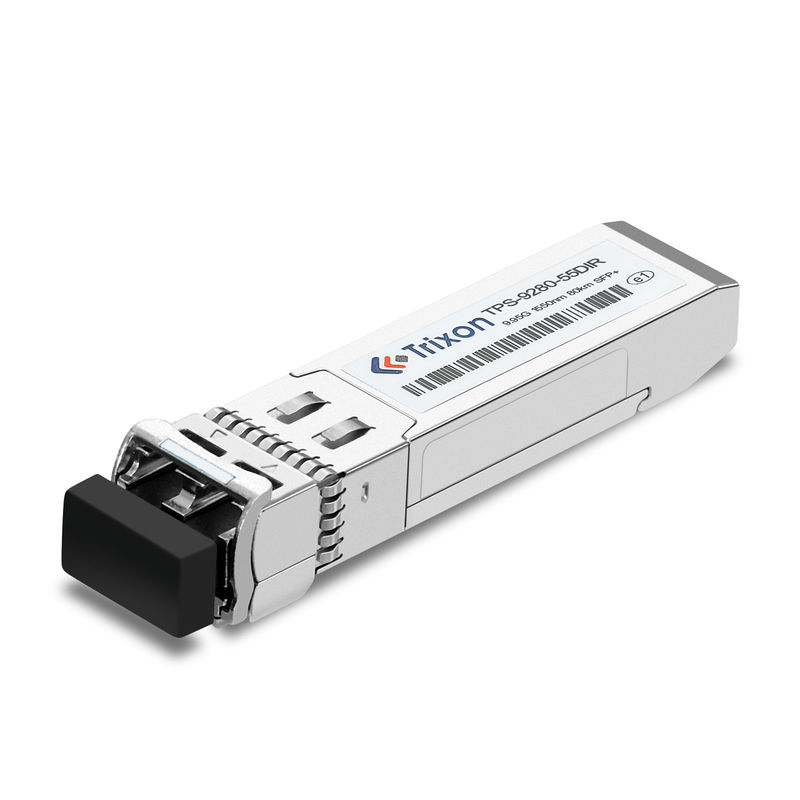

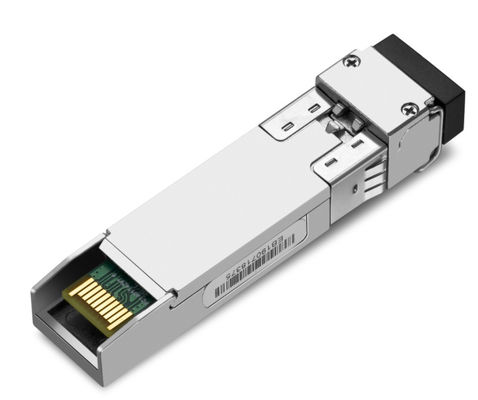

9.95Gbps SFP+ Transceiver Module 80km With Duplex LC Connector Interface

Negotiable
MOQ
Negotiable
Price
9.95Gbps SFP+ Transceiver Module 80km With Duplex LC Connector Interface
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: OC192/STM64 SFP+ Transceiver Module
Fiber Type: SMF
Distance: 80km
Compliant: Compliant With MSA SFP Specification
Wavelength: 1550nm-DFB
Temperature Range: -40℃~+85℃
Data Rate: Operating Data Rate Is 9.95Gbps
Optical Interface: Duplex LC Connector Interface
Highlight:

Duplex LC Connector Interface sfp+ 80km

,

9.95Gbps sfp+ 80km

,

Duplex LC Connector Interface SFP+ Transceiver Module

Basic Infomation
Place of Origin: CHINA
Brand Name: Trixon
Model Number: TPS-9280-55DIR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

TPS-9280-55DIR 9.95Gbps OC192/STM64 SFP+ Transceiver Module 80km -40℃~+85℃,Industry Temperature,1550nm-DFB,with CDR,

Product Description:

The OC192/STM64 SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module that is designed for use with Single-Mode Fiber (SMF). It features a Duplex LC Connector Interface and is capable of delivering up to 10km of transmission distance. This transceiver module provides excellent performance in a wide temperature range (-5℃~+70℃). It is an ideal solution for high-speed data transmission in OC192/STM64 networks.



Features:

Parameter Value
Data Rate 9.95Gbps
Wavelength 1550nm-DFB
Distance 80km
Optical Interface Duplex LC Connector Interface
DDM/DOM Yes
Compliant Compliant With MSA SFP Specification
Temperature Range -40℃~+85℃
Fiber Type SMF
Product Name OC192/STM64 SFP+ Transceiver Module

Technical Parameters:


Performance Specifications – Optical
(1550nm EML and APD,80km, OC-192 IR-2/STM S-64.2b)

Parameter Symbol Min Typ. Max Unit
Transmitter
Centre Wavelength λc 1530 - 1565 nm

Side Mode
Suppression Ratio

SMSR 30 - - dB
Spectral Width (-20dB) Δλ - - 0.3 nm
Average Output Power*note13 Pout 0 - 4 dBm
Extinction Ratio ER 9 - - dB
Average Power of OFF Transmitter Pout-off - - -30 dBm
Transmitter Dispersion Penalty TDP - - 2.0 dB
Optical Return Loss Tolerance ORLT - - 21 dB
Output Optical Eye Compliant with OC192/STM64
Receiver
Centre Wavelength  λc  1260 - 1570 nm
Receiver Sensitivity*note14  SEN - - -24 dBm
Receiver Overload  Pmax -7 - - dBm
LOS De-Assert  LOSD - - -22 dBm
LOS Assert LOSA -36 - - dBm
LOS Hysteresis  LOSH 0.5 - 4 dB

Note11: Output is coupled into a 9/125um SMF. The typical value is +2dBm.
Note12: Measured with a PRBS 231-1 test pattern @9.95Gbps, BER≤10-12.

Applications:

Long-Haul Telecommunications Networks: The TPS-9280-55DIR module is well-suited for long-haul telecommunications networks that require high-speed and long-distance transmission. It can be used to establish reliable connections between different cities or regions, enabling voice, data, and video communication over extensive distances.

Fiber Backbone Networks: The module can be deployed in fiber backbone networks to provide high-capacity and long-distance connectivity between different network nodes. It allows for efficient data transmission and interconnection of various network elements, such as routers, switches, or data centers.

Internet Service Providers (ISPs): ISPs can utilize the TPS-9280-55DIR module to expand their network coverage and offer high-speed internet services to customers in remote or distant areas. The module enables ISPs to bridge long distances and deliver reliable broadband connectivity to underserved regions.

Data Centers Interconnect: The module can be used to interconnect multiple data centers that are geographically dispersed. It facilitates fast and secure data transfer between data centers, supporting activities such as data replication, backup, or disaster recovery.

Enterprise Wide-Area Networks (WANs): The TPS-9280-55DIR module can be deployed in enterprise WANs to connect different office locations or branches that are separated by long distances. It enables high-speed data transmission, facilitating efficient collaboration and communication between geographically distributed teams.

Research and Education Networks: The module can be utilized in research and education networks that require high-speed connectivity between universities, research institutions, or laboratories. It supports the transfer of large datasets, scientific collaboration, and remote learning applications.



Customization:

Connector Type: The module may come with a specific connector type, such as LC or SC. If you require a different connector type to match your existing infrastructure, you can discuss the possibility of customizing the connector type with the manufacturer.

Compatibility: If you have compatibility concerns with your existing equipment or network setup, you can discuss with the manufacturer to ensure that the customized module will be compatible with your specific environment. This may involve adjusting parameters or configurations to ensure seamless integration.

Temperature Range: The standard temperature range for the TPS-9280-55DIR module is -40°C to +85°C. If you require a different temperature range to match your specific operational environment, you can discuss your requirements with the manufacturer. They may offer customization options to accommodate a wider or narrower temperature range.

Power Budget: If you have specific power budget requirements for your network, you can discuss with the manufacturer to determine if the module can be customized to meet those requirements. This may involve adjusting the power consumption or sensitivity of the module.

Labeling and Branding: If you require specific labeling or branding on the module, such as custom logos or serial numbers, you can discuss these customization options with the manufacturer. They may be able to accommodate your branding requirements.

Testing and Certification: If you require additional testing or certification for the module to meet specific industry standards or compliance requirements, you can discuss these customization needs with the manufacturer. They may be able to provide tailored testing or certification processes.



Support and Services:

SFP+ Transceiver Module Technical Support & Services

Our team of experts provide technical support and services for SFP+ Transceiver Modules. We offer in-depth support for all aspects of the module, from installation and debugging to troubleshooting and maintenance.
We can provide guidance on the best use of the module, as well as advice on the best suited product for your needs. Our team can also provide assistance in understanding the complexities of the product and offer advice on the most cost-effective solutions.
In addition, we can provide help with any issues that may arise during the use of the module. We provide direct and rapid support to any problems that may arise. Our team is dedicated to providing the best customer service to ensure a smooth and efficient operation of the module.
We also provide comprehensive support for the product, from the initial purchase to the eventual upgrade or replacement. We strive to provide a solution that meets your needs and offers the best value for money.



Packing and Shipping:

Packaging and Shipping

SFP+ Transceiver Module is packaged in an ESD bag and shipped in a cardboard box to ensure safe delivery.

Reference Datasheet File code: DS090016
