| Brand Name: | Trixon |
| Model Number: | TPS-9210-31DIR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |

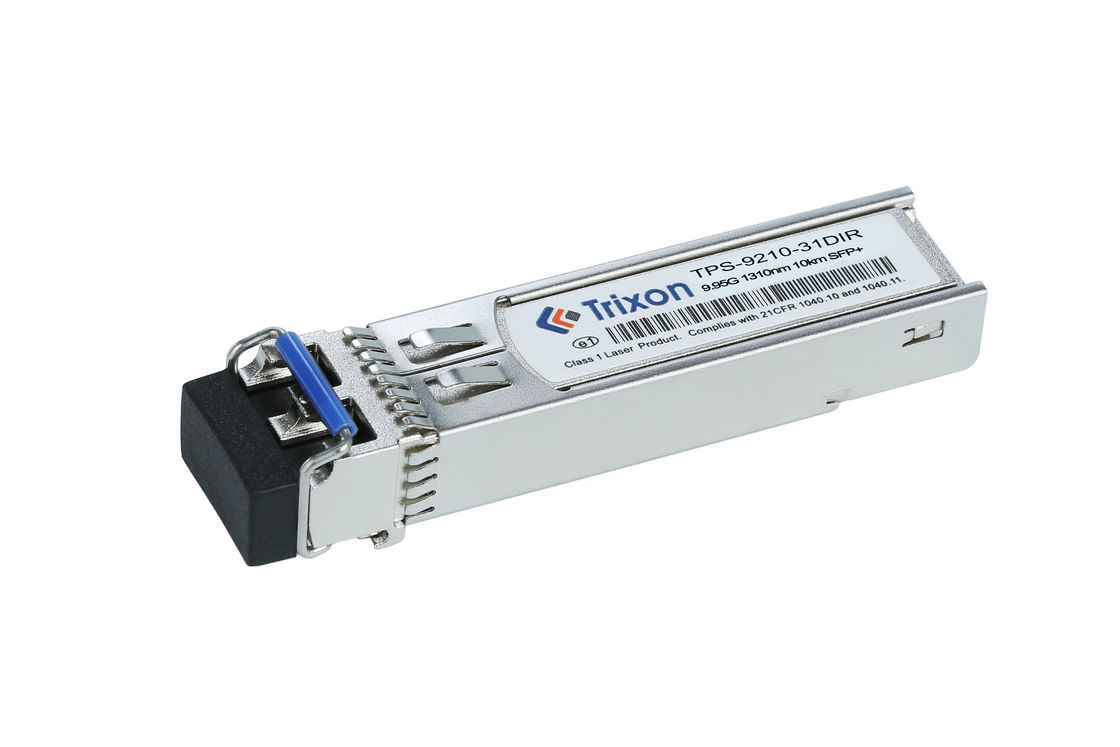

The OC192/STM64 SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module that is designed for use with Single-Mode Fiber (SMF). It features a Duplex LC Connector Interface and is capable of delivering up to 10km of transmission distance. This transceiver module provides excellent performance in a wide temperature range (-5℃~+70℃). It is an ideal solution for high-speed data transmission in OC192/STM64 networks.
| Parameter | Value |
|---|---|
| Data Rate | 9.95Gbps |
| Wavelength | 1310nm-DFB |
| Distance | 10km |
| Optical Interface | Duplex LC Connector Interface |
| DDM/DOM | Yes |
| Compliant | Compliant With MSA SFP Specification |
| Temperature Range | -5℃~+70℃ |
| Fiber Type | SMF |
| Product Name | OC192/STM64 SFP+ Transceiver Module |
Performance Specifications – Optical
(1310nm DFB and PIN,10km,OC-192 SR-1/STM I-64.1)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1270 | 1310 | 1355 | nm |
|
Side Mode |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note9 | Pout | -6 | - | -1 | dBm |
| Extinction Ratio | ER | 6 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB |
| Optical Return Loss Tolerance | ORLT | - | - | 12 | dB |
| Output Optical Eye | Compliant with OC192/STM64 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1260 | - | 1610 | nm |
| Receiver Sensitivity*note10 | SEN | - | - | -13.5 | dBm |
| Receiver Overload | Pmax | -1 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -14 | dBm |
| LOS Assert | LOSA | -25 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Note5: Output is coupled into a 9/125um SMF. The typical value is -2dBm.
Note6: Measured with a PRBS 231-1 test pattern @9.95Gbps, BER≤10-12.
Industrial Networking: The TPS-9210-31DIR module is well-suited for industrial networking applications that require reliable and high-speed data transmission in harsh environments. It can be used to connect industrial devices, machinery, or sensors over short distances within industrial facilities.
Oil and Gas Industry: The module can be utilized in the oil and gas industry for communication and data transmission in remote drilling sites, refineries, or pipelines. Its ability to operate in a wide temperature range and withstand harsh conditions makes it suitable for these demanding environments.
Transportation and Railway Systems: The TPS-9210-31DIR module can be deployed in transportation and railway systems to support high-speed communication and signaling between different components, such as control systems, switches, or sensors. Its rugged design and wide temperature range make it suitable for use in railway tracks, trains, or outdoor transportation infrastructure.
Power Substations and Utilities: The module can be used in power substations and utilities for communication and data transmission between control systems, meters, or monitoring devices. Its ability to withstand extreme temperatures and harsh conditions makes it suitable for use in power distribution environments.
Military and Defense Applications: The TPS-9210-31DIR module can be employed in military and defense applications where reliable and secure data transmission is crucial. It can be used in communication systems, surveillance equipment, or military vehicles to ensure robust connectivity in challenging environments.
Harsh Industrial Environments: The module is suitable for any industrial environment that experiences extreme temperatures, humidity, or vibrations. It can be deployed in manufacturing plants, mining operations, or chemical facilities to enable high-speed data transmission and connectivity.
Temperature Range: The standard temperature range for the TPS-9210-31DIR module is -40°C to +85°C, suitable for industrial environments. If you require a different temperature range to match your specific operational environment, you can discuss your requirements with the manufacturer. They may offer customization options to accommodate a wider or narrower temperature range.
Connector Type: The module may come with a specific connector type, such as LC or SC. If you require a different connector type to match your existing infrastructure, you can discuss the possibility of customizing the connector type with the manufacturer.
Compatibility: If you have compatibility concerns with your existing equipment or network setup, you can discuss with the manufacturer to ensure that the customized module will be compatible with your specific environment. This may involve adjusting parameters or configurations to ensure seamless integration.
Power Budget: If you have specific power budget requirements for your network, you can discuss with the manufacturer to determine if the module can be customized to meet those requirements. This may involve adjusting the power consumption or sensitivity of the module.
Labeling and Branding: If you require specific labeling or branding on the module, such as custom logos or serial numbers, you can discuss these customization options with the manufacturer. They may be able to accommodate your branding requirements.
Testing and Certification: If you require additional testing or certification for the module to meet specific industry standards or compliance requirements, you can discuss these customization needs with the manufacturer. They may be able to provide tailored testing or certification processes.
Our team of experts provide technical support and services for SFP+ Transceiver Modules. We offer in-depth support for all aspects of the module, from installation and debugging to troubleshooting and maintenance.
We can provide guidance on the best use of the module, as well as advice on the best suited product for your needs. Our team can also provide assistance in understanding the complexities of the product and offer advice on the most cost-effective solutions.
In addition, we can provide help with any issues that may arise during the use of the module. We provide direct and rapid support to any problems that may arise. Our team is dedicated to providing the best customer service to ensure a smooth and efficient operation of the module.
We also provide comprehensive support for the product, from the initial purchase to the eventual upgrade or replacement. We strive to provide a solution that meets your needs and offers the best value for money.
SFP+ Transceiver Module is packaged in an ESD bag and shipped in a cardboard box to ensure safe delivery.
Reference Datasheet File code: DS090016
|
|
