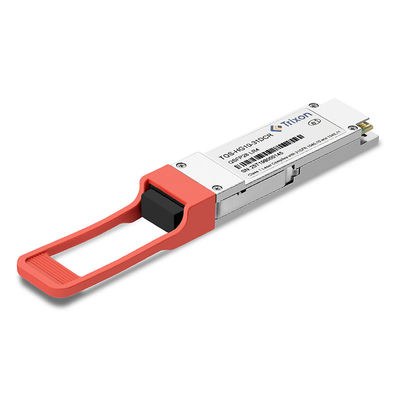

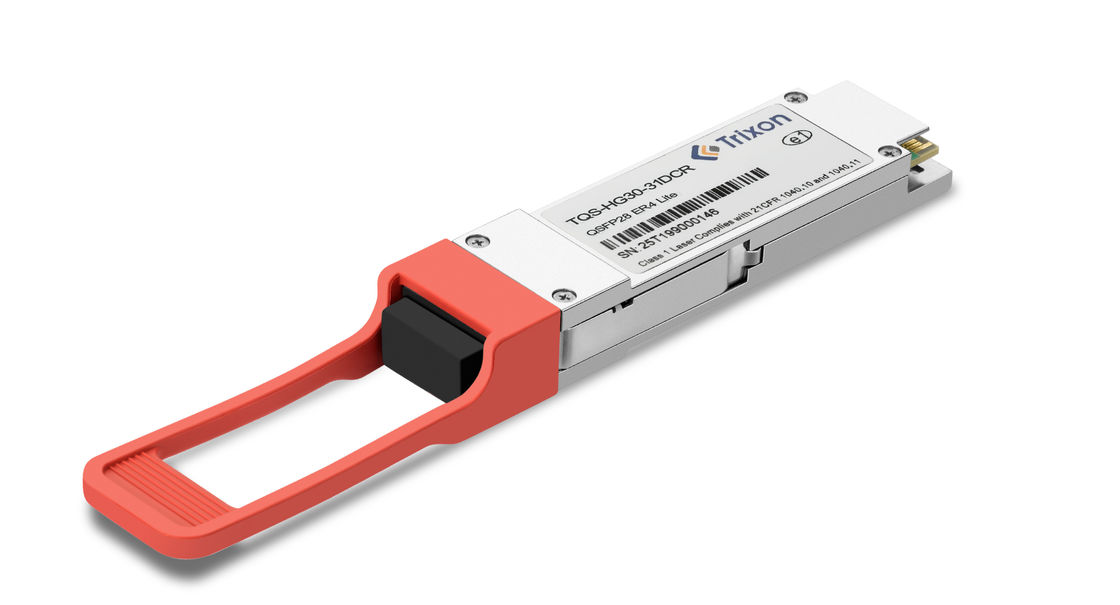

The TQS-HG10-31DCR is a high-speed parallel 100Gbps QSFP optical module designed for increased port density and cost savings. It supports full-duplex communication with 4 independent channels, each capable of operating at 25.78125Gbps. This allows for a total aggregate data rate of 100Gbps over a distance of 10km using single mode fiber.
The module is compatible with duplex LC connectors, making it easy to connect with optical fiber cables. It operates on a single +3.3V power supply and offers various control signals such as Module Present, Reset, Interrupt, and Low Power Mode. Additionally, it features a 2-wire serial interface for more complex control signals and digital diagnostic information.
Designed according to the QSFP Multi-Source Agreement (SFF-8436), the TQS-HG10-31DCR ensures a standardized form factor, optical/electrical connection, and digital diagnostic interface. It is built to withstand harsh operating conditions including temperature, humidity, and EMI interference. With its high functionality and integration, the module can be easily accessed and controlled through the two-wire serial interface.
|
Product Name |
QSFP28 LR4 Transciver Module |
|---|---|
| Warranty | 3 Years |
| Power Supply | 3.3V |
| Temperature Range | 0℃ To 70℃ |
| DDMI | DDM |
| Pluggable | Hot Pluggable |
| Data Rate | 100Gbps |
| Fiber Type | Single-Mode |
| Connector Type | Duplex LC |
| Distance | Up to 10km |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λ |
1294.53 1299.02 1303.54 1309.09 |
1296.59 1301.09 1305.63 1310.19 |
nm | |
| Side-mode Suppression ratio | SMSR | 30 | - | - | dB |
| Average Optical Power, each Lane | Pavg | -4.3 | - | +4.5 | dBm |
| Extinction Ratio | ER | 4 | - | - | dB |
| Transmitter Eye Mask Definition | Complied with IEEE802.3 Clause 88 100Gbase-LR4 | ||||
| Average Launch Power OFF Transmitter, each Lane | Poff | - | - | -30 | dBm |
| Receiver | |||||
| Center Wavelength | λ |
1294.53 1299.02 1303.54 1309.09 |
1296.59 1301.09 1305.63 1310.19 |
nm | |
| Average Power at Receiver Input, each Lane | -10.6 | - | 4.5 | dBm | |
| Receiver Sensitivity each Lane | -8.6 | dBm | |||
| Receiver Reflectance | - | - | -12 | dB | |
| Los Assert | LosA | -25 | - | - | dBm |
| Los Dessert | LosD | - | - | -13 | dBm |
| Los Hysteresis | LosH | 0.5 | - | - | dB |
100G QSFP28 LR4 optical modules are often used to build high-capacity, high-speed network connections. It can be used to build high-density data center networks, supporting fast and reliable server-to-server communication. In addition, it is also suitable for WAN access, connecting remote office locations or data centers in different regions.
