Product Details:
|
| Product Name: | POE IP Ethernet Over 2 Wires Extender Converter | Distance Reach: | 600m |
|---|---|---|---|
| RJ45 Port: | 1Ch RJ45 | BNC Port: | 1Ch Twisted Pair |
| Working Temp.: | 0~70℃ | POE: | Support |
| High Light: | 2km ethernet over 2 wires,IP Cameras Ethernet over Coaxial Extender,CCTV Ethernet over Coaxial Extender |
||

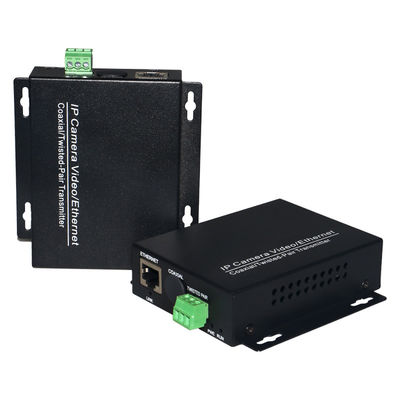

Miray MR-1T1RP-T/R is Ethernet over Twisted Pair Converter which can convert the signal over TP-LAN , and extend the video signal transmission distance of digital camera,and supports POE function.Terminal POE device such as cameras can be powered by the transmitter,not need to set the power supply separately.Product adopts industrial design,suitable for all kinds of video transmission systems,such as security monitoring system,elevator video network coverage,multimedia network teaching system,industrial automation control system,medical monitoring display system,advertising screen real-time playback system,etc.
Features
1. One 10/100Base TX (TX) Ethernet port with RJ45 connector
2. Auto negotiation of speed and duplex mode on TX port
3. Auto MDI/MDIX on Ethernet port
4. IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX compliant
5. Line port uses BNC connector or F-Type connector
6. Line port link is full-duplex up to 85Mbps over existing coaxial cable
7. One DIP switch for configuring local or remote mode
8. Status LED’s for monitoring and connection status
9. External AC to DC power adapter included
10. 3 years warranty
1.Elevator network video surveillance.
2.Elevator swipe card control management system(elevator control).
3.Elevator network coverage.
4.Product equipment monitoring and management.
5.Industrial control.
|
Interface |
10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1 |
|
Transmission medium |
75-5 coaxial cable, RG59 |
|
LED Indicators |
PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet) L/A(Links/Data) |
|
Protocol standard |
IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.3af DTE Power via MDI |
|
Data rate |
10/100Mbps |
|
Transmission distance |
1500M(No POE), 300~600M(with POE) |
|
Performance Specification |
Store-and-forward |
|
Network Latency |
Less than 20µs for 64-byte frames in Store and forward mode for 100Mbps to 100Mbps transmission |
|
DC Power input |
DC 48V(Peak Value 44~56V) , MR-1T1RP-T |
|
No power, MR-1T1RP-R |
|
|
Operating environment |
Operating temperature; -10℃~ +50℃ |
|
Dimension |
95*72*25mm |
| Part No. | Description |
| MR-1B1R-T/R | 10/100Mbps EOC Extender for IP Camera, 1 BNC port + 1 RJ45 port, distance to 1.5KM |
| MR-2B1R-T/R | 10/100Mbps EOC Extender for IP Camera, 2 BNC port + 1 RJ45 port, distance to 1.5KM |
| MR-4B1R-T/R | 10/100Mbps EOC Extender for IP Camera, 4 BNC port + 1 RJ45 port, distance to 1.5KM |
| MR-1B4R-T/R | 10/100Mbps EOC Extender for IP Camera, 1 BNC port + 4 RJ45 port, distance to 1.5KM |
| MR-1B1RP-T/R | 10/100Mbps POE EOC Extender for IP Camera, 1 BNC port + 1 RJ45 port, distance to 0.6KM |
| MR-1T1R-T/R | 10/100Mbps Ethernet over Twisted Pair Extender for IP Camera, 1 Twisted Pair port + 1 RJ45 port, distance to 1.5KM |
| MR-1T1RP-T/R | 10/100Mbps POE Ethernet over Twisted Pair Extender for IP Camera, 1 Twisted Pair port + 1 RJ45 port, distance to 0.6KM |
For more details, welcome to inquire us freely.
