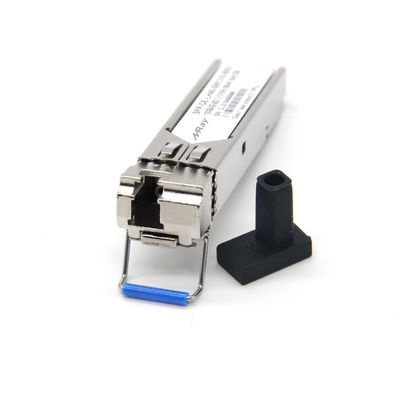

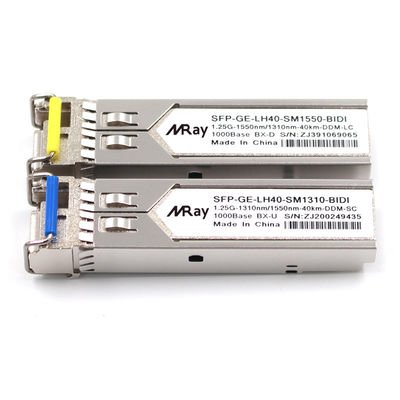

Product Details:
|
| Product Name: | 1.25G SFP Bidi Tx1310 Rx1550nm 40Km Transceiver | Rate: | 1.25G |
|---|---|---|---|
| Wavelength: | 1310nm/1550nm | Distance: | 40km |
| Warranty: | 3 Years | Connector Type: | LC/UPC |
| High Light: | DDM fiber sfp module types,Rx1550nm LC SFP Transceiver Modules,Tx1310 40Km SFP Transceiver Modules |
||
Miray’s GE-BX40-SM1310 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-EX Ethernet 40km application.
Single Mode bi-directional Transmission
SFP Multi-source Package with LC Receptacle
Up to 1.25Gb/s Data Links
Hot-Pluggable Capability
Up to 40 km on 9/125μm SMF
Single +3.3V Power Supply
Built-in WDM
Isolation > 30dB, Cross Talk < -45dB
Monitoring Interface Compliant with SFF-8472
Metal Enclosure,Excellent EMI & ESD Protection
Compliant with Specifications for IEEE802.3Z
Compliant with Bellcore TA-NWT-000983
Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1
RoHS Compliant
♦ Gigabit Ethernet
♦ Fiber Channel
♦ Switch to Switch interface
♦ Switched backplane applications
♦ Router/Server interface
♦ Other optical transmission systems
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
|
Data Rate
|
1250 | Mb/s | ||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 220 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| -10 | 80 | °C | ||||
| -40 | 85 | °C |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Average Output Power |
Po |
-1 |
|
3 |
dBm |
|
|
Laser OMA output power |
POMA |
0 |
|
|
dBm |
|
|
Disable Power |
Poff |
|
|
-40 |
dBm |
|
|
Extinction Ratio |
ER |
6 |
|
|
dB |
|
|
Output Centre Wavelength |
λc |
1530 |
1550 |
1565 |
nm |
|
|
Side-Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Spectral Width (-20dB) |
∆λ |
|
|
1 |
nm |
|
|
Optical Rise/Fall Time (20%~80%) |
tr/tf |
0.03 |
|
|
ns |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
1 |
|
Generation Jitter (20KHZ-80MHZ) |
GJ |
|
|
0.3 |
UIp-p |
|
|
Optical Return Loss |
ORL |
|
|
-12 |
dB |
|
|
Optical Eye Mask |
MM |
Compliant to IEEE802.3ae |
1 |
|||
|
Data Dependent Input Jitter |
DDJ |
|
|
0.1 |
UI |
|
|
Data Input Total Jitter |
TJ |
|
|
0.28 |
UI |
|
|
Data Rate |
1.25G |
Fiber Mode |
Single Mode Fiber (SMF) |
|
Types of Interface |
LC |
Types of Laser |
DFB/FP |
|
Operating Temperature |
Standard 0~70°C |
Operating Humidity |
0%~90% RH (non condensing) |
|
Transmission distance |
3/20/30/40/60/80km |
Modes of Communications |
Simplex |
|
Wavelength |
1310nm TX/1550 nm RX |
Types of Multiplexing |
BIDI WDM |
|
Receiver Sensitivity |
<-23dBm |
Extinction Ratio |
>9dB |
|
Form Factor |
SFP BIDI |
Power Consumption |
<3W |
|
Weight |
0.024kg |
Power Supply |
+3.3V |
|
Hot Pluggable Times |
200 |
Average Output Power |
-5 ~ -0dBm |
