Product Details:
|
| Product Name: | 10/100Mbps Single Port PoE Injector 30W 48VDC IEEE802.3at | Data Rate: | 10/100Mbps |
|---|---|---|---|
| Power: | 30W | Standard: | IEEE802.3at |
| Pin Assignment And Polarity: | 1/2(+), 3/6 (-) | Input Power AC Voltage: | 100~240 VAC |
| Warranty: | 3 Years | ||
| High Light: | Midspan single port power over ethernet,30W POE Devices,IEEE802.3at POE Devices |
||

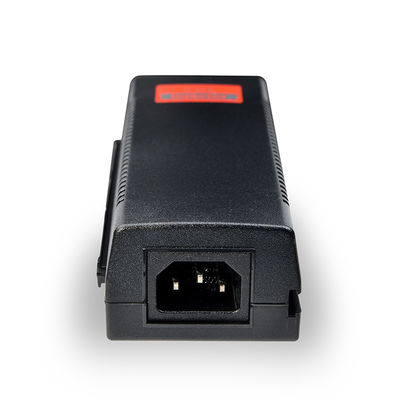

Miray MR-P30 is Single-port PoE injector, Compliant with IEEE 802.3af/at PoE Standard, support output power of 15.4W or 30W,Supply power to wireless AP, surveillance cameras, IP phones, PDAs and other PoE PDs through a single network cable together with data transmission. Transmission distance up to 100m, Adopt plug-and-play design, easy to install, Excellent choice for Wireless City, Security Surveillance Industry or other network construction.
routers, switches, wireless APs, network telephones, industrial network terminals or IP cameras, massager, sos telephone, fetal monitor equipment, robot
|
Item |
Description |
|
|
Power
|
PoE Power Supply |
End-span : 1/2,3/6 data line pair(default); mid-span: 4/5,7/8 spare line pair (can be customized) |
|
Power Input Voltage |
AC 110V-240V |
|
|
Power Output Voltage |
48V |
|
|
Power Consumption |
≤30W |
|
|
Ethernet Port |
Communication Port |
1×RJ45 |
|
Transmission Rate |
10/100/1000Mbps |
|
|
Transmission Medium |
Cat5/5e/6 Standard Network Cable |
|
|
Transmission Distance |
100m (Maximum) |
|
|
Protocols and Standards |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1at DTE Power via MDI IEEE 802.3af/at |
|
|
LED Status Indicator |
Power |
1 (Blue) |
|
PoE |
1 (Red) |
|
|
Protection |
ESD |
1a Contact discharge Level 3 1b Air discharge Level Per: IEC61000-4-2 |
|
Environmental |
Working Temperature |
0Degree centigrade~55Degree centigrade |
|
Storage Temperature |
-20Degree centigrade~70Degree centigrade |
|
|
Humidity (non-condensing) |
0~90% |
|
|
Mechanical |
Dimension (L×W×H) |
115mm×50mm×31mm |
|
Material |
ABS Plastic |
|
|
Color |
Black |
|
|
Weight |
350g |
|
|
Stability |
MTBF |
>30000h |
|
Part Number |
Description |
|
MR-P15 |
10/100M POE injector, 1 POE in, 1 POE out, 48V, 15W |
|
MR-15G |
10/100/1000M POE injector, 1 POE in, 1 POE out, 48V, 15W |
|
MR-P30 |
10/100M POE injector, 1 POE in, 1 POE out, 48V, 30W |
|
MR-P30G |
10/100/1000M POE injector, 1 POE in, 1 POE out, 48V, 30W |
|
MR-P60G |
10/100/1000M POE injector,1 POE in, 1 POE out, 48V, 60W |
Installation Diagram: Non PoE Switch/Router to PoE PD
Installation Diagram: Non PoE Switch/Router to Non-PoE PD
