Product Details:
|
| Product Name: | 1080p 4 Channels HD AHD TVI CVI Video Fiber Optical Transmitter And Receiver | BNC Port: | 4Ch BNC Port |
|---|---|---|---|
| Wavelength: | 1310/1550nm | Fiber Type: | Single Fiber Single Mode |
| Application: | FTTH FTTB FTTX Network | Warranty: | 3 Years |
| High Light: | BNC Port ahd fiber converter,4Ch fiber optic transmitter and receiver,TVI fiber optic transmitter and receiver |
||
Miray's 4CH HDTVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 4 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Features
|
Feature |
Description |
|
|
Optical |
Fiber Type |
Multi-mode fiber or Single mode fiber |
|
Fiber Connector |
FC/ST/SC |
|
|
Distance |
0~80km (Optional) |
|
|
Wavelength |
Transmitter |
|
|
Tx |
Input level |
>500mVp-p |
|
self-adaption cable equilibrium |
1080p:75-5 |
|
|
Input/Output Impedance |
75Ω |
|
|
Physical Interface |
1/2/4/8 channel BNC connector |
|
|
Rx |
Output level |
1Vp-p |
|
Input/Output Impedance |
75Ω |
|
|
Physical Interface |
1/2/4/8 channel BNC connector |
|
|
Data |
Transmission Media |
Coaxial cable |
|
Baud Rate |
1200~9600bit/s |
|
|
Bit Error Rate |
≦10 |
|
|
Operation Mode |
Half-Duplex |
|
|
Indicators |
LOS,PWR,DATA,VIDEO |
|
|
Mean time between failures (MTBF) |
>100 000 hours |
|
|
General |
EPS |
DC5V |
|
Power Consumption |
≦5W |
|
|
Operation Temperature |
-40℃~75℃ |
|
|
Operation Humidity |
10%~90% |
|
|
Atmospheric Pressure |
86kpa~106kpa |
|
|
Mounting Method |
Wall-mounted |
|
Data |
Physical interface: Industrial standard terminal |
|
Audio |
Connector: Terminal Blocks |
|
Telephone |
Connector: RJ11 |
|
Ethernet |
Connector: RJ45 |
|
Contact Closure |
Physical connector: Industrial standard connector port |
|
Optical Budget |
Multi-mode / 20dBm / 2KM |
|
Model |
Description |
|
MR-4V-F20-720P |
720P AHD/TVI/CVI Fiber Video Converter,single mode single fiber , 4CH video, 20KM, FC, Iron, 1V↑ |
|
MR-4V1D-F20-720P |
720P AHD/TVI/CVI Fiber Video Converter,single mode single fiber, 4CH video+ reverse data, 20KM, FC, Iron, 1V↑+1D↓ |
|
MR-4V-F20-1080P |
1080P AHD/TVI/CVI Fiber Video Converter,single mode single fiber , 4CH video, 20KM, FC, Iron, 1V↑ |
|
MR-4V1D-F20-1080P |
1080P AHD/TVI/CVI Fiber Video Converter,single mode single fiber, 4CH video+ reverse data, 20KM, FC, Iron, 1V↑+1D↓ |

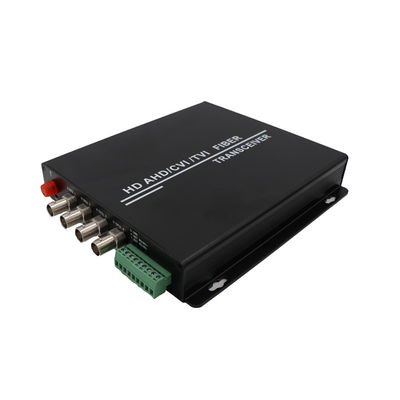

Product Show
