Product Details:
|
| Product Name: | 10/100Base-FX Fiber Media Converter Simplex | Data Rate: | 10/100Mbps |
|---|---|---|---|
| Fiber Type: | Single Fiber | Distance: | 60km |
| Wavelength: | 1310/1550nm | Operating Temperature: | 0℃ To +70℃ |
| Warranty: | 3 Years | Connector: | SC/ST/FC/LC |
| High Light: | 512KB single fiber media converter,60km single fiber media converter,100Base tx fx media converter |
||

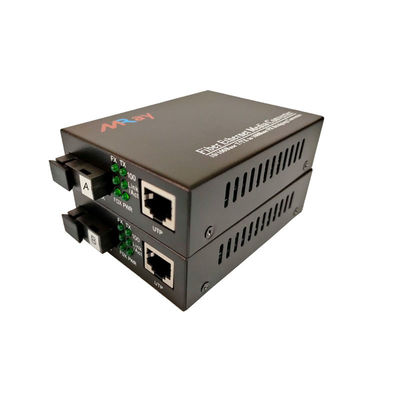

Miray MR-101S20A/B series Media Converter are compact, cost-effective, low dissipative, industrial grade device for converting data signal between 10/100/1000 Base-Tx and 100/1000 Base-Fx fast Ethernet bridging. The 10/100/1000M Media Converter is housed in a metal case, comes with external AC (110-220V) -DC (5V) power supply. The 100Base-TX and the 100Base-FX converter feature LED diagnostics for FX-100, FX-Link/Act,TX-100,TX-Link/ Act,FDX, PWR.
1. Plug and play, high performance, Low power consumption
2. Card-type or stand-alone, apply in centralized management 2U aluminum chassis
3. Cache is 512KB, MAC address table is 4KB
4. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
5. . Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
6. Automatic MDI/MDI-X crossover
7. Distances up to: 20 km Single Mode
8. SC optical connectors.
9. AC/DC powered
10. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
11. CE approved
|
Parameters |
Values |
|
Operating Standards |
EEE802.3u 100Base-TX and 100Base-FX |
|
Connector |
UTP: RJ-45,10/100Mbp & 10/100/1000M |
|
Fiber |
100M or 1000M (1G) in Duplex or Simplex SC ( Optional: FC ) |
|
UTP Cable |
UTP cable : Cat. 5 (the max distance up to 100m) |
|
Fiber Singlemode |
8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km) |
|
Fiber Multimode |
50/125, 62.5/125μm (the max distance up to 2km) |
|
Wavelength |
Distance |
|
Multimode 850nm |
0-2km (100M), 0-500m (1000M) |
|
Singlemode 1310nm |
0-2km, 0-20km, 0-40km |
|
Singlemode 1550nm |
0-100km (100M), 0-60km & 0-100km (1000M) |
|
Half / Full Duplex |
IEEE802.3x flow control |
|
Power |
AC170 ～ 240V,DC5V 2A |
|
DIP Option |
Converter (9k) or Switch mode, Link Fault Pass through function, Flow control, Half / Full Duplex |
|
Operating Temperature |
0 ～ +55℃ |
|
Storage Temperature |
-20 ~ 70℃ |
|
Humidity |
5%-95% |
|
Dimension Standalone |
95x70x26mm |
|
Dimensions (19” Chassis) |
19″ 2U height |
|
Part Number |
Description |
|
MR-101S20AB |
10/100M Single fiber SM 20KM SC External Power Supply |
|
MR-101S40AB |
10/100M Single fiber SM 40KM SC External Power Supply |
|
MR-101S60AB |
10/100M Single fiber SM 60KM SC External Power Supply |
|
MR-101S80AB |
10/100M Single fiber SM 80KM SC External Power Supply |
| MR-101S100AB | 10/100M Single fiber SM 100KM SC External Power Supply |
| MR-101S120AB | 10/100M Single fiber SM 120KM SC External Power Supply |
