Product Details:
|
| Product Name: | 10G BiDi 10km SFP+ Transceiver Module | Rate: | 10G |
|---|---|---|---|
| Connector: | Simplex LC | Wavelength: | 1330/1270nm |
| Distance: | 10km | Application: | Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network, |
| High Light: | Simplex LC 10km sfp+ fiber module,1270nm cisco 10g single mode sfp,1330nm cisco 10g single mode sfp |
||

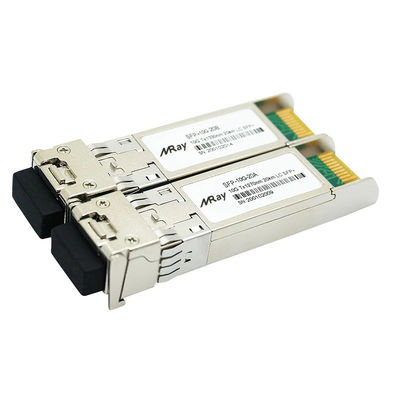

Miray’ SFP-10G-BX10-SM1270 & SFP-10G-BX10-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Operating data rate up to 10.3Gbps
Two types: 1270nm DFB Transmitter/ 1330nm Receiver 1330nm DFB Transmitter/ 1270nm Receiver
Distance up to 10km @50 / 125 um MMF
Single 3.3V Power supply and TTL Logic Interface
LC Connector Interface
Hot Pluggable
Power Dissipation < 1.5 W
Compliant with MSA SFP+ Specification SFF-8431
Compliant with IEEE 802.3ae 10GBASE-LR/LW
Operating Case Temperature Standard : 0°C to +70°C
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Case operating Temperature |
TC |
-5 |
|
+70 |
°C |
|
Supply Voltage |
VCCT, R |
+3.135 |
|
+3.465 |
V |
|
Supply Current |
ICC |
|
|
450 |
mA |
|
Power Dissipation |
PD |
|
|
1.5 |
W |
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. | ||
| Transmitter | ||||||||
| Bit Rate | BR | 9.9 | 11.3 | Gb/s | ||||
| Optical Wavelength | SFP-10G-BX10-SM1270 | λ | 1260 | 1270 | 1280 | nm | ||
| SFP-10G-BX10-SM1330 | 1320 | 1330 | 1340 | |||||
| Average output power | Po | -6 | -1 | dBm | ||||
| Optical Extinction Ratio | ER | 3.5 | dB | |||||
| Spectral width | Δλ | 1 | nm | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Optical Eye Mask | Compliant with IEEE802.3ae | |||||||
| Receiver | ||||||||
| Bit Rate | BR | 9.9 | 11.3 | Gb/s | ||||
| Optical Wavelength | SFP-10G-BX10-SM1270 | λ | 1320 | 1330 | 1340 | nm | ||
| SFP-10G-BX10-SM1330 | 1260 | 1270 | 1280 | |||||
| Receiver Sensitivity | Sen | -14.5 | dBm | 1 | ||||
| Maximum Input Power | PMAX | 0 | dBm | |||||
| LOS De-Assert | LOSD | -15 | dBm | |||||
| LOS Assert | LOSA | -25 | dBm | |||||
| LOS Hysteresis | LOSH | 0.5 | 4 | dB | ||||
|
Ordering Information |
|
|
Model No. |
Description |
|
SFP-10G-BX10-SM1270 |
10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 10km, LC, DDM |
|
SFP-10G-BX10-SM1310 |
10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 10km, LC, DDM |
|
SFP-10G-BX20-SM1270 |
10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 20km, LC, DDM |
|
SFP-10G-BX20-SM1310 |
10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 20km, LC, DDM |
|
SFP-10G-BX40-SM1270 |
10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 40km, LC, DDM |
|
SFP-10G-BX40-SM1310 |
10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 40km, LC, DDM |
|
SFP-10G-BX60-SM1270 |
10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 60km, LC, DDM |
|
SFP-10G-BX60-SM1310 |
10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 60km, LC, DDM |
|
SFP-10G-BX80-SM1490 |
10G bidi SFP+ transceiver module, Tx1490/Rx1550nm, 80km, LC, DDM |
|
SFP-10G-BX80-SM1550 |
10G bidi SFP+ transceiver module, Tx1550/Rx1490nm, 80km, LC, DDM |
