Product Details:
|

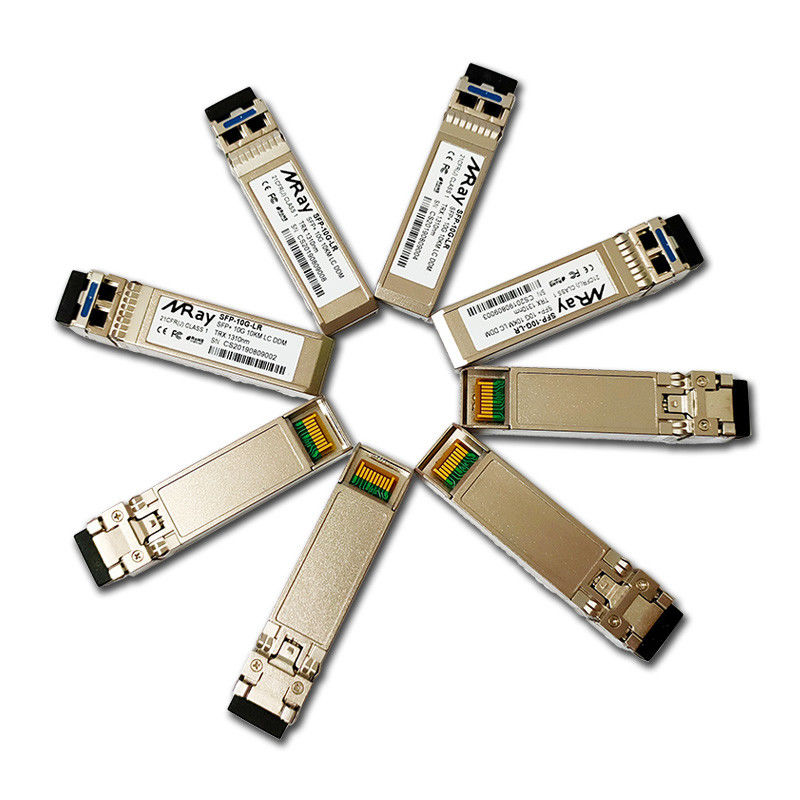

| Product Name: | 10G 1310NM 20KM Fiber Optical Transceiver Module | Data Rate: | 10Gbps |
|---|---|---|---|
| Distance: | 20km SMF | Connector: | Dual LC |
| Compatiable: | Dell, HP, Cisco, Juniper, Ubiquiti... | Application: | FTTH FTTB FTTO Network |
| Power Supply: | +3.3V | Operating Temperature: | 0~70 °C |
| High Light: | Dual LC cisco 10g sfp lr,1310NM 20KM SFP+ Transceiver Module,Lr Dual LC SFP+ Transceiver Module |
||
SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L.
Support hot-pluggable
Metal with lower EMI
Excellent ESD protection
DFB Transmitter and PIN Receiver
Typical Center Wavelength:1310nm
Max link length up to 20Km on SMF
RoHS Compliant and Lead-Free
Digital diagnostic compatible with SFF-8472
Case Operation Temperature:-40℃~+85℃
Single 3.3V power supply and Low power dissipation <1.0W
10GBASE-LR/LW Ethernet @10.3125G
Fiber Channel 800-SM-LC-L 8GFC @8.5G, 1200-SM-LL-L 10GFC @10.51875G
SONET OC-192 & SDH STM-64 @9.953G
CPRI Option #7 @9.83G, #8 @10.1376G
OTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
8.5 |
10.3125 |
11.32 |
Gb/s |
|
|
Optical Launch Power |
Po |
-8.2 |
|
+0.5 |
dBm |
1 |
|
Optical Center Wavelength |
λc |
1260 |
1310 |
1355 |
nm |
|
|
Spectral Width (-20dB) |
Δλ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Optical Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
|
Optical Eye Mask |
|
IEEE802.3ae |
|
|||
|
Relative Intensity Noise |
RIN |
|
|
-128 |
dB/Hz |
|
|
Differential Data Input Swing |
VIN |
180 |
|
850 |
mV |
|
|
TX Disable Input Voltage-Low (TX ON) |
TDISVL |
GND |
|
0.8 |
V |
|
|
TX Disable Input Voltage-High (TX OFF) |
TDISVH |
2.0 |
|
Vcc |
V |
|
|
TX Fault Output Voltage-Low (TX Normal) |
TFLTVL |
GND |
|
0.8 |
V |
|
|
TX Fault Output Voltage-High (TX Fault) |
TFLTVH |
2.0 |
|
Vcc |
V |
|
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
8.5 |
10.3125 |
11.32 |
Gb/s |
|
|
Receiver Sensitivity |
PIN_min |
|
|
-14.5 |
dBm |
1 |
|
Maximum Input Power |
PIN_max |
+0.5 |
|
|
dBm |
1 |
|
Optical Center Wavelength |
λc |
1260 |
|
1620 |
nm |
|
|
LOS De-Assert |
LOSD |
|
|
-15.5 |
dBm |
|
|
LOS Assert |
LOSA |
-30 |
|
|
dBm |
|
|
LOS Hysteresis |
LOSHY |
0.5 |
|
|
dB |
|
|
Differential Data Output Swing |
VOUT |
300 |
|
900 |
mV |
|
|
Receiver LOS Signal Output Voltage-Low |
LOSVL |
GND |
|
0.8 |
V |
|
|
Receiver LOS Signal Output Voltage-High |
LOSVH |
2.0 |
|
Vcc |
V |
