Product Details:
|
| Product Name: | 10GBASE-LR SFP+ SMF 1310nm 10km Fiber Optic Transceiver Module | Rate: | 10G |
|---|---|---|---|
| Distance: | 10km | Fiber Type: | SMF |
| Power Supply: | +3.3V | Warranty: | 3 Years |
| Application: | FTTH FTTB FTTO Network | Operating Temperature: | 0~70 °C |
| High Light: | FTTO Network sfp module 1310nm,Low EMI 1310nm 10g Sfp+ Lr,IEC-60825 10g sfp+ lr |
||

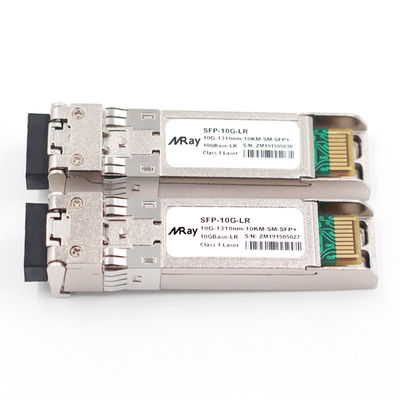

Miray SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
10GBASE-SR,LRM,LR,ER,ZR at 10.31/11.3Gbps
SDH/SONET
OTN G.709/G.959.1
10GBASE-LW/EW at 9.95Gbps
8G/10G Fibre Channel
CPRI options 7/8
Other optical links
|
Parameter |
Symbol |
Unit |
Min |
Max |
|
Storage Temperature Range |
Ts |
oC |
-40 |
85 |
|
Relative Humidity |
RH |
% |
0 |
95 |
|
Maximum Supply Voltage |
Vcc3 |
V |
-0.5 |
4.0 |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Note |
Unit |
|
Optical Transmitter Characteristics |
||||||
|
Nominal Wavelength |
λ |
|
1310 |
|
|
nm |
|
Optical Output Power |
Pav |
-6 |
|
2 |
|
dBm |
|
Extinction Ratio |
ER |
3.5 |
|
|
|
dB |
|
Average Launch Power of OFF Transmitter |
POFF |
|
|
-35 |
|
dBm |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
|
dB/Hz |
|
Optical Receiver Characteristics |
||||||
|
Center Wavelength |
λC |
1260 |
|
1620 |
|
nm |
|
Receiver Sensitivity@10.3Gb/s |
RSENSE |
|
|
-14.4 |
1 |
dBm |
|
Receiver Overload |
|
0.5 |
|
|
|
dBm |
|
Optical Return Loss |
|
27 |
|
- |
|
dB |
|
LOS Assert |
LOSA |
-30 |
|
|
|
dBm |
|
LOS De-Assert LOS |
LOSD |
|
|
-17 |
|
dBm |
|
LOS Hysteresis |
|
0.5 |
|
|
|
dB |
