Product Details:
|
| Product Name: | Mikrotik SFP Transceiver 1.25G 1310nm 20km Single-Mode LC | Data Rate: | 1.25Gb/s |
|---|---|---|---|
| Wavelength: | 1310nm | Transmission Distance: | 20km |
| Optical Connector: | LC Connector | Compatibility: | All Brands |
| Application: | Telecommunication, FTTH, FTTX, FTTB | Power Supply: | +3.3V |
| High Light: | 1310nm SFP Transceiver Modules,1310nm 20km SFP Transceiver Modules,aruba 1g sfp lc lx 10km smf transceiver j4859d |
||
The small form-factor pluggable (sfp transceiver ) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network component vendors.

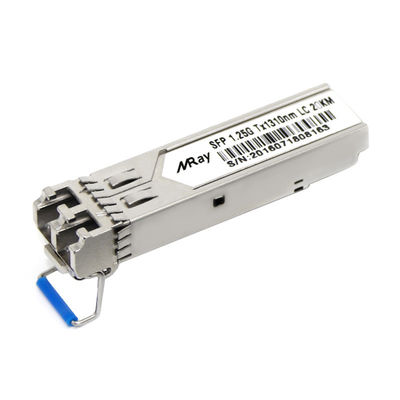

Miray's SFP-GE-LX20 Small Form Factor Pluggable SFP transceivers are compliant with the current SFP Multi-Source Agreement (MSA) Specification. The high performance uncooled 1310nm FP transmitter and high sensitivity PIN receiver provide superior performance for Fast Ethernet 100BASE-LX, Gigabit Ethernet 1000BASE-LX and Fiber Channel applications up to SMF 20km optical links.
| Parameter | Symbol | Min. | Typical | Max. | Unit | |
| Case operating Temperature | Industrial | TC | -40 | 85 | °C | |
| Extended | -5 | 85 | °C | |||
| Commercial | 0 | +70 | °C | |||
| Supply Voltage | VCC | 3.135 | 3.465 | V | ||
| Supply Current | Icc | 300 | mA | |||
| Inrush Current | Isurge | Icc+30 | mA | |||
| Maximum Power | Pmax | 1 | W | |||
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
125 |
|
1250 |
Mb/s |
|
|
Optical Launch Power |
Po |
-9 |
|
-3 |
dBm |
1 |
|
Optical Center Wavelength |
λc |
1260 |
1310 |
1355 |
nm |
|
|
Spectral Width (RMS) |
Δλ |
|
|
3 |
nm |
|
|
Optical Extinction Ratio |
ER |
9 |
|
|
dB |
|
|
Optical Eye Mask |
|
IEEE802.3ah |
|
|||
|
Relative Intensity Noise |
RIN |
|
|
-120 |
dB/Hz |
|
|
Differential Data Input Swing |
VIN |
180 |
|
1200 |
mV |
|
|
TX Disable Input Voltage-Low (TX ON) |
TDISVL |
GND |
|
0.8 |
V |
|
|
TX Disable Input Voltage-High (TX OFF) |
TDISVH |
2.0 |
|
Vcc |
V |
|
|
TX Fault Output Voltage-Low (TX Normal) |
TFLTVL |
GND |
|
0.8 |
V |
|
|
TX Fault Output Voltage-High (TX Fault) |
TFLTVH |
2.0 |
|
Vcc |
V |
|
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
125 |
|
1250 |
Mb/s |
|
|
Receiver Sensitivity @1250Mbps |
PIN_min |
|
|
-24 |
dBm |
1 |
|
Receiver Sensitivity @125Mbps |
|
|
|
-25 |
dBm |
1 |
|
Maximum Input Power |
PIN_max |
-3 |
|
|
dBm |
|
|
Optical Center Wavelength |
λc |
1260 |
|
1620 |
nm |
|
|
LOS De-Assert |
LOSD |
|
|
-25 |
dBm |
|
|
LOS Assert |
LOSA |
-35 |
|
|
dBm |
|
|
LOS Hysteresis |
LOSHY |
0.5 |
|
|
dB |
|
|
Differential Data Output Swing |
VOUT |
600 |
|
1000 |
mV |
|
|
Receiver LOS Signal Output Voltage-Low |
LOSVL |
GND |
|
0.8 |
V |
|
|
Receiver LOS Signal Output Voltage-High |
LOSVH |
2.0 |
|
Vcc |
V |
