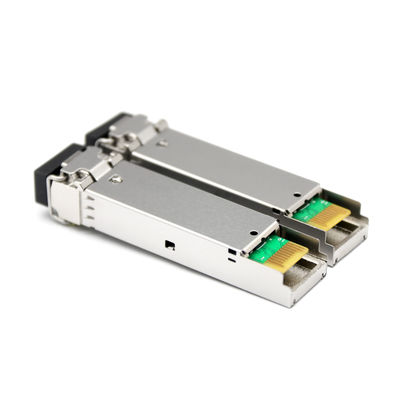

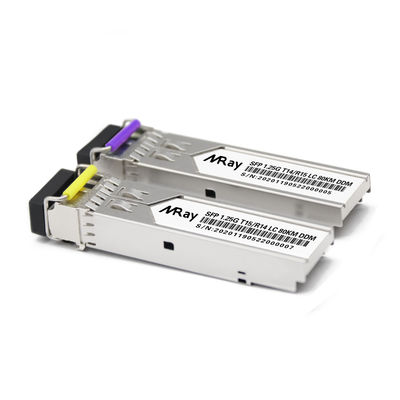

Product Details:
|
| Product Name: | 1.25G 80km Simplex SFP Module Switch Ethernet Fiber Optic Transceiver | Rate: | 1.25G |
|---|---|---|---|
| Connector: | Simplex LC Connector | Wavelength: | 1550nm/1490nm |
| Distance: | 80km | Fiber Type: | SMF |
| Application: | Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network, | Operating Temperature: | 0°C To 70°C |
| Compatible: | Cisco, Huawei, HP, Finisar | Certification: | CE RoHS FCC ISO9001 |
| Warranty: | 3 Years | ||
| High Light: | 80km cisco sfp 1g single mode,Simplex LC SFP Transceiver Modules,80km 1.25G SFP Transceiver Modules |
||
Miray’s SFP Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1550 nm DFB laser, up to 22dB link budge ensure this module 1000Base-ZX Ethernet 80km application.
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
|
Case operating Temperature |
Industrial |
TC |
-40 |
|
85 |
°C |
|
Extended |
-5 |
|
85 |
°C |
||
|
Commercial |
0 |
|
+70 |
°C |
||
|
Supply Voltage |
VCC |
3.135 |
|
3.465 |
V |
|
|
Supply Current |
Icc |
|
|
300 |
mA |
|
|
Inrush Current |
Isurge |
|
|
Icc+30 |
mA |
|
|
Maximum Power |
Pmax |
|
|
1 |
W |
|
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
1530 |
1550 |
1570 |
nm |
|
|
Spectral Width |
σ |
|
|
1 |
nm |
|
|
Sidemode Supression ratio |
SSRmin |
30 |
|
|
dB |
|
|
Optical Output Power |
Pout |
-2 |
|
+3 |
dBm |
1 |
|
Extinction Ratio |
ER |
9 |
|
|
dB |
|
|
Optical Rise/Fall Time |
tr / tf |
|
|
260 |
ps |
2 |
|
Relative Intensity Noise |
RIN |
|
|
-120 |
dB/Hz |
|
|
Total Jitter Contribution |
TX Δ TJ |
|
|
0.284 |
UI |
3 |
|
Eye Mask for Optical Output |
Compliant with IEEE802.3 z (class 1 laser safety) |
|
||||
|
Receiver Section: |
|
|||||
|
Optical Input Wavelength |
λc |
1470 |
1490 |
1510 |
nm |
|
|
Receiver Overload |
Pol |
-3 |
|
|
dBm |
4 |
|
RX Sensitivity |
Sen |
|
|
-24 |
dBm |
4 |
|
RX_LOS Assert |
LOS A |
-40 |
|
|
dBm |
|
|
RX_LOS De-assert |
LOS D |
|
|
-25 |
dBm |
|
|
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
|
General Specifications: |
||||||
|
Data Rate |
BR |
|
1.25 |
|
Gb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s |
LMAX |
|
80 |
|
km |
|
|
Total System Budget |
LB |
22 |
|
|
dB |
|
