Product Description:

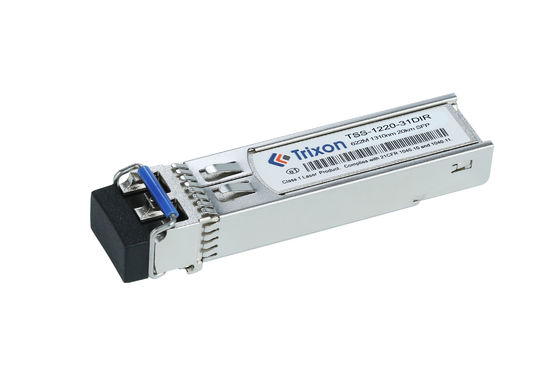

SFP Transceiver Module
This SFP Transceiver Module is designed to provide high-speed data transmission up to 622.08 Mbps over single-mode fiber. It has a Duplex LC Connector Interface and supports DDMI. The transceiver module has a wide operating temperature range from -40℃ ~+85℃ making it suitable for many industrial applications. This module is compatible with 1.25G SFP connections and works at 1310nm wavelength. It is a reliable and efficient solution for high-speed data transmission.
Features:
| Parameter |
Value |
| Product Name |
SDH STM-4/SONET OC-12 SFP Transceiver |
| Connector Type |
Duplex LC Connector Interface |
| Power Supply |
Single 3.3V Power Supply And TTL Logic Interface |
| Distance |
20km |
| Pluggable |
Hot Pluggable |
| Fiber Type |
SMF |
| Laser |
1310nm-FP |
| Temperature Range |
-40℃ ~+85℃ |
| Compliant |
Compliant With MSA SFP Specification |
| Data Rate |
Operating Data Rate Up To 622.08Mbps |
Technical Parameters:
Performance Specifications – Optical
( 1310nm FP and PIN, 20Km)
| Parameter |
Symbol |
Min |
Typ. |
Max |
Unit |
Note |
| Transmitter |
| Centre Wavelength |
λc |
1280 |
1310 |
1340 |
nm |
|
| Spectral Width*Note4 |
∆λ |
|
|
4 |
nm |
FP-LD |
| Average Output Power |
POUT |
-9.5 |
|
-3 |
dBm |
|
| Extinction Ratio |
ER |
9 |
|
|
dB |
|
| Average Power of OFF Transmitter |
POFF |
|
|
-45 |
dBm |
|
| Output Optical Eye |
Compliant with IEEE 802.3ah-2004 |
|
| Receiver |
| Centre Wavelength |
λc |
1200 |
|
1650 |
nm |
|
| Sensitivity*Note5 |
PIN |
|
|
-22 |
dBm |
|
| Receiver Overload |
Overload |
-3 |
|
|
dBm |
|
| Optical Return Loss |
|
12 |
|
|
dB |
|
| LOS Assert |
LOSA |
-35 |
|
|
dBm |
|
| LOS De-Assert |
LOSD |
|
|
-23 |
dBm |
|
| LOS Hysteresis |
|
0.5 |
|
4 |
dB |
|
Applications:
The Trixon TSS-1220-31DIR SFP Transciver Module is a high-performance, reliable and cost-effective transceiver module. It is designed for Single Mode fiber and equipped with Duplex LC Connector Interface. It is capable of transmitting data up to 20km with 1310nm FP laser, and it supports DDMI function. Moreover, it has an extended temperature range of -40℃ ~+85℃, making it suitable for a variety of applications. The Trixon TSS-1220-31DIR SFP Transciver Module is widely used in data centers, enterprises, fiber optic access networks, Gigabit Ethernet and fiber channel links. With its excellent performance, it is an ideal choice for enterprise networks, data centers and other applications requiring high speed and long distance data transmission.
