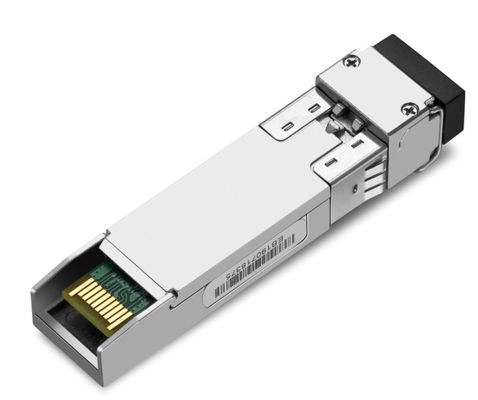

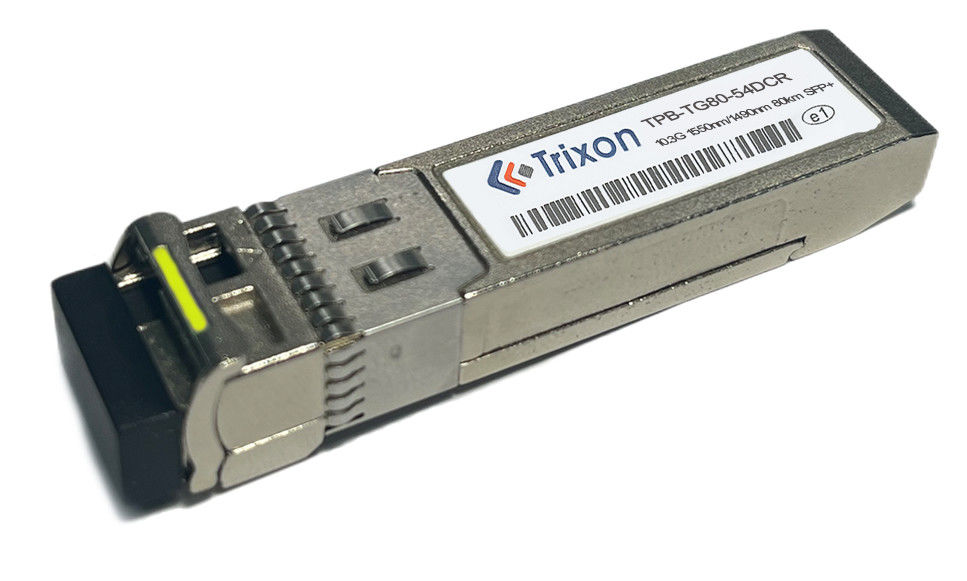

TPB-TG80-54DCR SFP+ 10.3Gbps 80km BIDI Transceiver 1550nm/1490nm

TPB-TG80-54DCR SFP+ 10.3Gbps 80km BIDI Transceiver 1550nm/1490nm
Features Gallery Product Description Request A Quote
Connector Type: LC
Data Rate: 10.3Gbps
Distance: Up To 80km
Fiber Type: Single-mode
Interface Type: Duplex
Temperature Range: 0℃~+70℃
Wavelength: T1550nm R1490nm

10.3Gbps BIDI Transceiver 1550nm


SFP+ BIDI Transceiver 1490nm


SFP+ BIDI Transceiver 1550nm

Basic Infomation
Place of Origin: China
Brand Name: Trixon
Certification: UL,TUV,FCC,CE,ROHS
Model Number: TPB-TG80-54DCR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

TPB-TG80-54DCR SFP+ 10.3Gbps 80km BIDI Transceiver 1550/1490nm

Product Description:

The Trixon 10GE BIDI SFP+ 80km is a small form factor pluggable transceiver that supports 10 Gigabit per second bidirectional data communication over optical fiber. With a maximum transmission distance of 80km, it complies with the SFP+ Multi-Source Agreement (MSA) standard (SFF-8431).

This SFP+ transceiver contains a built-in serializer/deserializer (SerDes) interface and fiber optic transmit/receive functions in a compact and hot-swappable module. It supports digital diagnostic monitoring and serial ID functions accessible through the standard 2-wire serial interface defined by the SFP+ MSA specification.

The Trixon 10GE BIDI SFP+ 80km is manufactured to be RoHS compliant and lead-free, meeting the restricted materials requirements of Directive 2002/95/EC and 2005/747/EC. Its small pluggable form factor, high speed capacity, and extended 80km reach make it an ideal solution for 10GbE optical interconnect applications.


Specifications Details
Operating data rate 10.3Gbps
Distance Up to 80km
Power supply Single 3.3V
Logic interface TTL
Connector interface Bi-directional single LC
Hot pluggable Yes
Compliant standards

MSA SFP Specification

Telcordia GR-253-CORE


Diagnostics monitoring Digital diagnostic monitor interface compatible with SFF-8472
Operating case temperature 0°C to +70°C (standard)



Technical Parameters:

Parameter Symbol Min Typ. Max Unit
Centre Wavelength λc 1540 1550 1560 nm
    1480 1490 1500 nm

Side Mode

Suppression Ratio

SMSR 30 - - dB
Spectral Width (-20dB) Δλ - - 1 nm
Average Output Power*note3 Pout -1 - 4 dBm
Extinction Ratio ER 6.5 - - dB
Average Power of OFF Transmitter Pout-off - - -30 dBm
Relative Intensity Noise RIN - - -128 dB/Hz
Output Optical Eye Compliant with IEEE802.3ae-2005
Centre Wavelength λc 1480 1490 1500 nm
    1540 1550 1560 nm
Receiver Sensitivity*note4  SEN - - -23 dBm
Receiver Overload  Pmax -7 - - dBm
LOS De-Assert  LOSD - - -24 dBm
LOS Assert LOSA -38 - - dBm
LOS Hysteresis  LOSH 0.5 -   dB

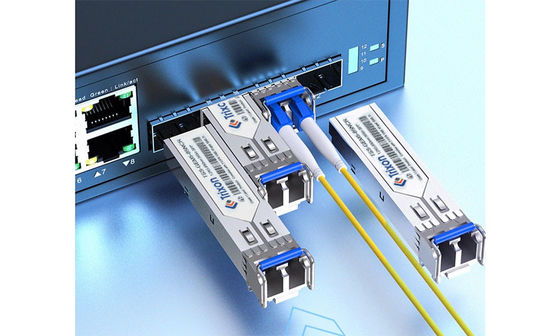

  • Data center server and switch interconnection
  • Computer room interconnection in metropolitan area network and wide area network
  • HD video transmission system
  • Network security device connections
  • Data center mass storage network
  • Interconnection of high-performance computer clusters
  • Interconnection of telecommunications equipment such as OLT and OTN
  • It mainly takes advantage of its high-speed two-way communication, long-distance transmission and low latency to be used in scenarios that require high network bandwidth and speed. Suitable for high-speed data interconnection and transmission.



Support and Services:

  • Technical Support: Provides assistance to customers for troubleshooting, diagnosing and resolving technical issues related to the product via phone, email, online chat, remote access, etc.
  • Software Upgrades/Updates: Provides bug fixes, new features, security patches, etc. to keep the software up-to-date. Can be delivered through online downloads, physical media, etc.
  • Hardware Repair/Replacement: Repairs or replaces defective hardware components covered under warranty. May provide RMA (Return Merchandise Authorization) handling.
  • Training: Provides training materials and classes on how to properly use and maintain the product. Can be online or onsite training.
  • Documentation: Provides user manuals, technical documents, knowledge bases, etc. to assist with product installation, usage, and maintenance.
  • Community Support: Online forums, discussion groups, etc. for customers to find solutions from peer users.
  • Professional Services: Customization, installation, implementation and consulting services for complex deployments.
  • Managed Services: End-to-end product support and management services for customers lacking expertise.
  • Warranty Support: Honors warranties on products in case of defects. Length and terms vary.
  • Maintenance Contracts: Paid service contracts that go beyond warranty period to provide enhanced support.

Packing and Shipping:

  • Design a strong case to protect the product.
  • Cushioning against shocks and impacts.
  • Sealed packaging is waterproof.
  • Use knockdown and tilt indicators.
  • Shipping bills, manuals and other product information.
  • Clear labeling.
  • Assembled on pallets for easy handling.
  • Generally, DHL, UPS or designated logistics will be selected.
  • Buy shipping insurance.
  • Track shipment status.
  • Handle product returns properly.
