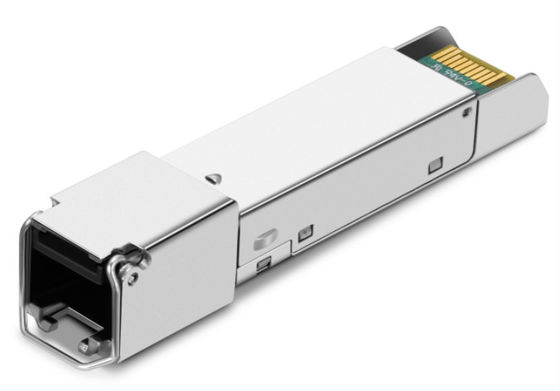

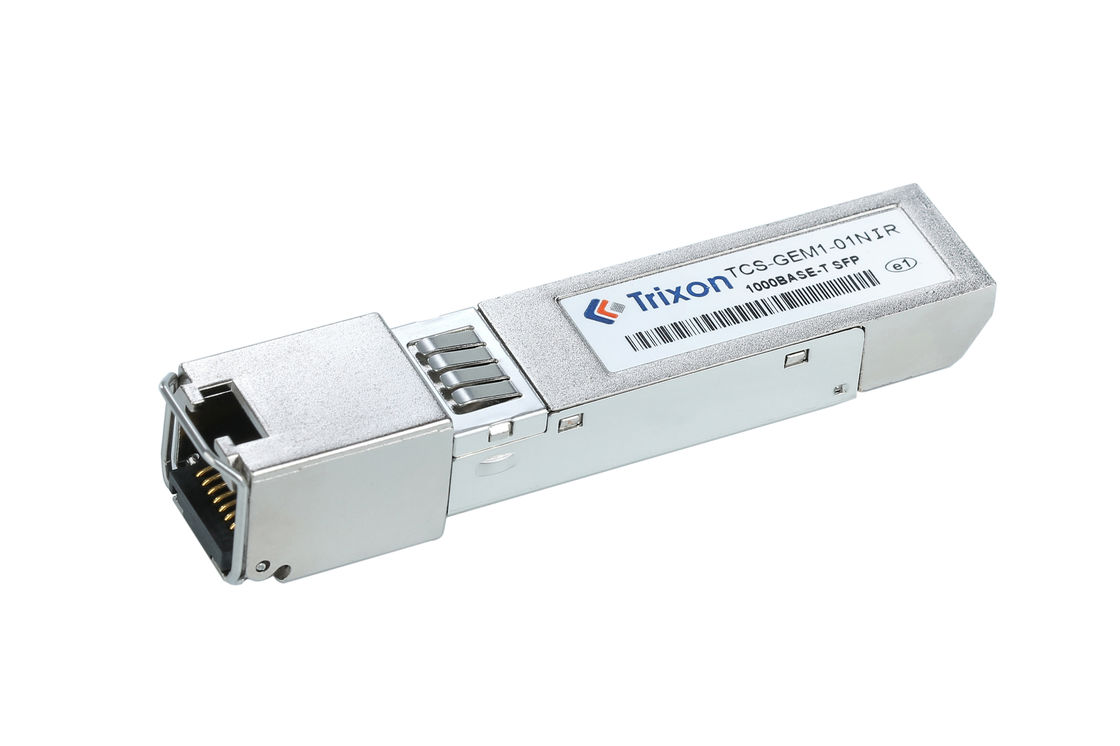

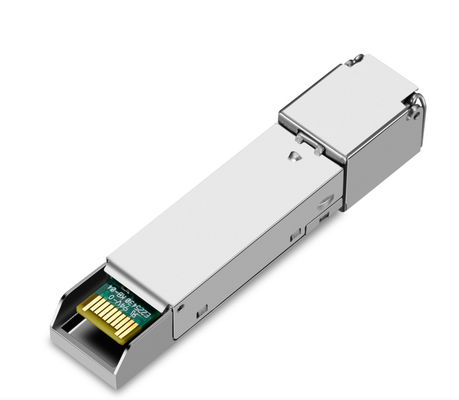

TCS-GEM1-01NIR 1.25G Copper 10/100/1000BASE-T Transceiver supporting 100m Distance,RJ45 -40℃~+85℃
The 1.25G Copper Transceiver provides high-speed and long-distance communication in data centers, telecommunications, and other applications. It supports data rate of 1.25Gbps, 10M, 100M and 1000M, and is capable of transmitting up to 100m. The Copper transceiver supports a wide operating temperature range from -40℃~+85℃, providing superior performance and reliability in even the most extreme conditions. With advanced features and superior performance, the 1.25G Copper Transceiver is ideal for high-speed transmission applications.
| Parameter | Specification |
|---|---|
| Connector | Compact RJ-45 Connector Assembly |
| Hot Pluggable | Yes |
| Product Name | 1.25G CopperTransceiver |
| Interface Type | RJ-45 |
| Operating Temperature | -40℃~+85℃ |
| Distance | 100m |
| Data Rate | 1.25Gbps,10M 100M 1000M |
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | TS | -40 | +85 | °C |
| Supply Voltage | VCC | -0.5 | 4.0 | V |
| Operating Humidity | - | 5 | 95 | % |
Note3: Exceeding any one of these values may destroy the device permanently.
| Parameter | Symbol | Min | Typical | Max | Unit |
| Power Supply Voltage | Vcc | 3.13 | 3.30 | 3.47 | V |
| Power Supply Current | Icc | - | - | 400 | mA |
| Surge current | Isurge | 30 | mA | ||
| Case Operating Temperature | STop | -5 | - | +70 | °C |
| ITop | -40 | - | +85 | ℃ | |
| Data Rate (note4) | - | 10 | - | 1000 | Mbps |
| Transmission Distance (note5) | - | 100 | m |
Industrial environment: Since the TCS-GEM1-01NIR has a wide operating temperature range of -40℃ to +85℃, it is ideally suited for use in harsh industrial environments. It can connect industrial automation equipment, sensors, monitoring systems, etc., providing reliable data transmission and network connections.
Outdoor applications: Due to its high operating temperature range, TCS-GEM1-01NIR can be used in outdoor environments. It can be used to connect outdoor network equipment, security cameras, wireless base stations, etc. to ensure reliable network connections and data transmission.
Remote monitoring: TCS-GEM1-01NIR is suitable for remote monitoring systems, such as video surveillance, security systems, etc. It can connect cameras and monitoring equipment to transmit video and data to a remote monitoring center to achieve real-time monitoring and remote management.
Military Applications: The TCS-GEM1-01NIR also has potential in military applications due to its durability and operating temperature range. It can be used in military communication networks, field command systems, military radars, etc. to provide reliable data transmission and network connections.
Extended Temperature Range: The TCS-GEM1-01NIR already has a wide operating temperature range of -40℃ to +85℃. However, if you have specific temperature requirements beyond this range, you can discuss with the manufacturer if they offer customization options for even higher or lower temperature ranges.
Cable Length: If you require a specific cable length for your installation, you can check with the manufacturer if they offer customization options to provide cables of different lengths to suit your specific needs.
Labeling and Branding: Depending on your requirements, it may be possible to have custom labeling or branding on the transceiver module. This can be useful for identification and branding purposes within your network infrastructure.
Additional Features: You can also inquire about the possibility of adding additional features or functionalities to the transceiver based on your specific requirements. This could include features like power monitoring, diagnostic capabilities, or enhanced security measures.
Our 1,25G Copper Transceiver product offers comprehensive technical support and service. Our team is available to answer any technical questions you may have, as well as provide assistance with the installation, configuration, and troubleshooting of the product. Additionally, we provide firmware updates, and if necessary, a replacement unit.
SGMII Transceiver is packaged and shipped in a single box containing a single unit. The box includes the Copper Transceiver and all necessary cables and accessories.
When shipping, the box should be secured with a thick layer of bubble wrap and placed in a sturdy cardboard box. This will ensure that the CopperTransceiver is not damaged in transit.
The Copper Transceiver should be handled with care and should not be dropped or subjected to any other physical force. Care should also be taken to ensure that the SGMII Transceiver is not exposed to extreme temperatures or humidity.
If any damage is observed upon receipt of the SGMII Transceiver, please contact the supplier immediately.
Reference Datasheet File code: DS070013
