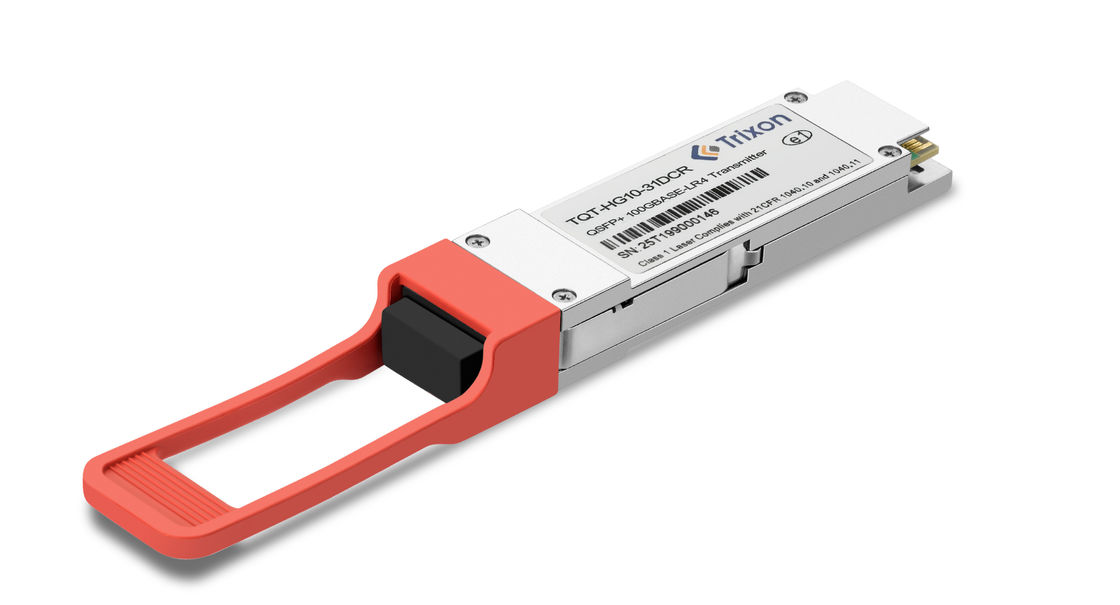

100G QSFP28 Transceiver QSFP 100gbase LR4 With SMF 1310nm TQT-HG10-31DCR

Negotiable
MOQ
Negotiable
Price
100G QSFP28 Transceiver QSFP 100gbase LR4 With SMF 1310nm TQT-HG10-31DCR
Features Gallery Product Description Request A Quote
Features
Specifications
Channel: 4 Independent LAN-WDM Channels
Distance: 10km
Low Power Consumption: < 2.0W
Form Factor: QSFP28
DDM: YES
Product Name: 100G QSFP28 LR4 Transmitter Module
Data Rate: 100G
Performance: Transmitter Only
Highlight:

Trixon 100G QSFP28 Transceiver with SMF 1310nm

,

Trixon qsfp 100g lr4 with SMF 1310nm

,

Trixon qsfp28 100gbase lr4 with SMF 1310nm

Basic Infomation
Place of Origin: CHINA
Brand Name: Trixon
Model Number: TQT-HG10-31DCR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

100G QSFP28 LR4 Transmitter Only for 10km Distance with SMF 1310nm TQT-HG10-31DCR

Product Description:

Meet the industry's latest standard, the 100G QSFP28 Transceiver is highly reliable and offers a superior performance. It supports 100Gbps data rate and is compatible with the IEEE 802.3ba-2010 standard. Its low power consumption of <2.0W and working temperature from 0 to 70°C makes it an ideal choice for networking and data center applications. This product also offers superior optical link budget performance with its SMF fiber type, making it perfect for long-distance transmission. Plus, with its compact QSFP28 form factor, it can easily fit into a 1RU space. For enhanced performance, this 100G QSFP28 Transceiver is the perfect solution.



Features:

  • Product Name: 100G QSFP28 Transceiver(Transmitter only)
  • Form Factor: QSFP28
  • Operating case temperature: 0~70°C
  • Data Rate: 100G
  • DDM: YES
  • Power: Single +3.3V Power Supply


Technical Parameters:

FeaturesDetails
Product Name100G QSFP28 LR4 Transmitter Module
Fiber TypeSMF
PowerSingle +3.3V Power Supply
Operating Case Temperature0~70°C
Wavelength1310nm
DDMYES
PerformanceTransmitter Only
Distance10km
Form FactorQSFP28
Channel4 Independent LAN-WDM Channels


Performance Specifications – Optical

ParameterSymbolMinTyp.MaxUnit
Transmitter
Center Wavelengthλ

1294.53

1299.02

1303.54

1309.09



1296.59

1301.09

1305.63

1310.19

nm
Side-mode Suppression ratioSMSR30--dB
Average Optical Power, each LanePavg-4.3-+4.5dBm
Extinction RatioER4--dB
Transmitter Eye Mask Definition Complied with IEEE802.3 Clause 88 100Gbase-LR4
Average Launch Power OFF Transmitter, each LanePoff---30dBm

Applications:

The 100G QSFP28 Transceiver is an advanced high-speed communication device from Trixon with model number TQT-HG10-31DCR. It is designed for optical communication systems and has a wide range of applications. It is made in China and has four independent LAN-WDM channels with SMF type fiber. The product name is 100G QSFP28 LR4 Transmitter Module, and it is powered by single +3.3V power supply with 1310nm wavelength. This transceiver is highly reliable and provides excellent performance.
The 100G QSFP28 Transceiver is ideal for applications such as data center interconnects, campus networks, and metropolitan area networks. It is an ideal solution for applications where high speed and reliable data transfer is required. With its high speed and low power consumption, the 100G QSFP28 Transceiver is perfect for networks of all sizes. It is also suitable for short-reach and long-reach applications, providing maximum flexibility. The 100G QSFP28 Transceiver is also suitable for high-density applications, as it can fit up to four transceivers in a single 1U rack.
The 100G QSFP28 Transceiver from Trixon is a robust and reliable device with excellent performance. It is designed to provide high-speed data transfer with minimal power consumption. It is also highly compatible with existing networks and can easily scale up as the network grows. With its low power consumption and high speed, it is perfect for applications such as data center interconnects, campus networks, and metropolitan area networks.



Customization:

Trixon 100G QSFP28 LR4 Transceiver(Transmitter only)

Brand Name: Trixon
Model Number: TQT-HG10-31DCR
Place of Origin: CHINA
Fiber Type: SMF
DDM: YES
Distance: 10km
Data Rate: 100G
Product Name: 100G QSFP28 LR4 Transmitter Module
Trixon 100G QSFP28 Transceiver is a high-performance transceiver module designed for 100G data rate applications. It is based on QSFP28 form factor and supports up to 10km transmission distance over single-mode fiber (SMF). The module is compliant with IEEE 802.3ba. It supports Digital Diagnostic Monitoring (DDM) functions and provides a wide range of optical performance monitoring. This module provides superior reliability and cost-effective solutions for high-speed interconnects.



Support and Services:

We provide full technical support and service for our 100G QSFP28 Transceiver.
Technical support includes:

  • Assistance with product installation, configuration, and troubleshooting
  • Phone, email, and webchat support
  • Helpful and knowledgeable customer service representatives
  • Live technical support 24/7

Service includes:

  • Full product warranty
  • Safe and secure online ordering
  • On-time delivery
  • 100% satisfaction guarantee


Packing and Shipping:

Packaging and Shipping for 100G QSFP28 Transceiver:

  • The product should be placed in a box with shock-proof material and packed according to the relevant regulations of international transportation.
  • The box should be clearly marked with the product name, shipping address, and contact information.
  • The product should be shipped via reliable shipping companies such as FedEx, UPS, or DHL.

Reference Datasheet File code: DS180011
