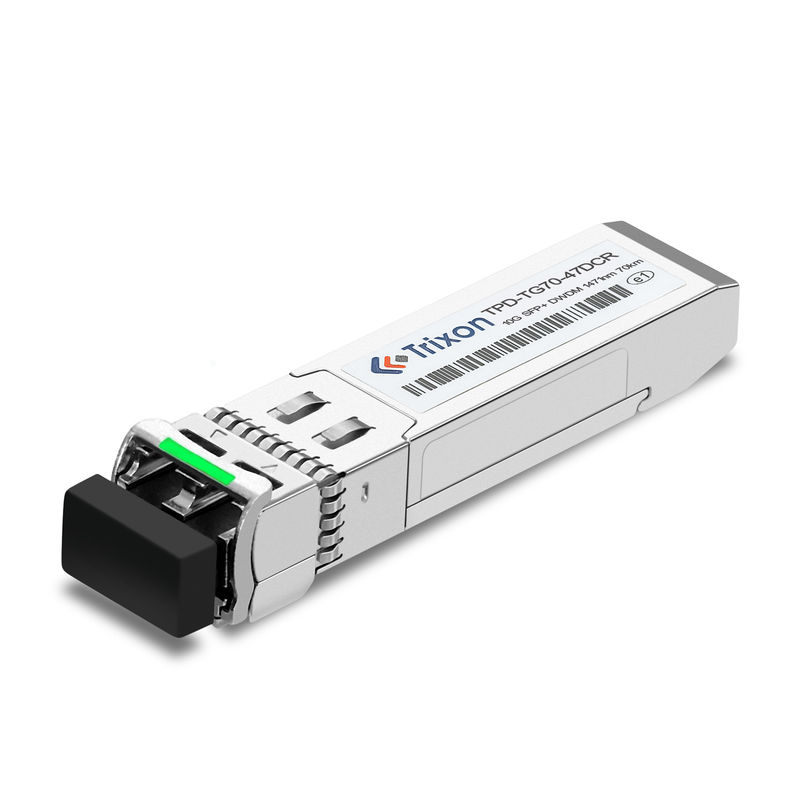

TPD-TG70-XXDCR 10G SFP+ DWDM 70km for All C-Band Wavelengths SMF Fiber,0℃ ~+70℃
Our 10G SFP+ DWDM Transceiver Module is a Small Form-Factor Pluggable Plus transceiver module offering 25dB Link Budget and up to 70km distance. It is available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid, and with DDM/DOM feature.
The 10G SFP+ DWDM Transceiver Module is designed to be compliant with the Multi-Source Agreement (MSA). It is hot-pluggable and supports full-duplex communication over single optical fiber. This transceiver module is widely used for data center applications, metro network, and access layer networks.
| Product Name | 10G SFP+ DWDM Transceiver Module |
|---|---|
| Optical Interface | Duplex LC Connector Interface |
| Wavelength | Available In All C-Band Wavelengths On The 100GHz DWDM ITU Grid |
| Distance | Up To 70km |
| DDM/DOM | Yes |
| Data Rate | 10.3 Gb/s |
| Temperature Range | 0℃ ~+70℃ |
| Link Budget | 25dB |
| Laser | Cooled 1550nm DWDM EML Laser |
| Fiber Type | SMF |
| (XX) Value | Channel |
Frequency (THz) |
Wavelength (nm) |
(XX) Value | Channel |
Frequency (THz) |
Wavelength (nm) |
| A0 | C13 | 191.3 | 1567.13 | C5 | C38 | 193.8 | 1546.92 |
| A1 | C14 | 191.4 | 1566.31 | C6 | C39 | 193.9 | 1546.12 |
| A2 | C15 | 191.5 | 1565.50 | C7 | C40 | 194.0 | 1545.32 |
| A3 | C16 | 191.6 | 1564.70 | C8 | C41 | 194.1 | 1544.53 |
| A4 | C17 | 191.7 | 1563.86 | C9 | C42 | 194.2 | 1543.73 |
| A5 | C18 | 191.8 | 1563.05 | D0 | C43 | 194.3 | 1542.94 |
| A6 | C19 | 191.9 | 1562.23 | D1 | C44 | 194.4 | 1542.14 |
| A7 | C20 | 192.0 | 1561.42 | D2 | C45 | 194.5 | 1541.35 |
| A8 | C21 | 192.1 | 1560.61 | D3 | C46 | 194.6 | 1540.56 |
| A9 | C22 | 192.2 | 1559.79 | D4 | C47 | 194.7 | 1539.77 |
| B0 | C23 | 192.3 | 1558.98 | D5 | C48 | 194.8 | 1538.98 |
| B1 | C24 | 192.4 | 1558.17 | D6 | C49 | 194.9 | 1538.19 |
| B2 | C25 | 192.5 | 1557.36 | D7 | C50 | 195.0 | 1537.40 |
| B3 | C26 | 192.6 | 1556.55 | D8 | C51 | 195.1 | 1536.61 |
| B4 | C27 | 192.7 | 1555.75 | D9 | C52 | 195.2 | 1535.82 |
| B5 | C28 | 192.8 | 1554.94 | E0 | C53 | 195.3 | 1535.04 |
| B6 | C29 | 192.9 | 1554.13 | E1 | C54 | 195.4 | 1534.25 |
| B7 | C30 | 193.0 | 1553.33 | E2 | C55 | 195.5 | 1533.47 |
| B8 | C31 | 193.1 | 1552.52 | E3 | C56 | 195.6 | 1532.68 |
| B9 | C32 | 193.2 | 1551.72 | E4 | C57 | 195.7 | 1531.90 |
| C0 | C33 | 193.3 | 1550.92 | E5 | C58 | 195.8 | 1531.12 |
| C1 | C34 | 193.4 | 1550.12 | E6 | C59 | 195.9 | 1530.33 |
| C2 | C35 | 193.5 | 1549.32 | E7 | C60 | 196.0 | 1529.55 |
| C3 | C36 | 193.6 | 1548.51 | E8 | C61 | 196.1 | 1528.77 |
| C4 | C37 | 193.7 | 1547.72 | E9 | C62 | 196.2 | 1527.99 |
(10.3Gbps, 25 dB Power budget)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1527.99 | XX | 1567.13 | nm | XX:Note1 | |
| fc | 191.3 | 196.2 | THz | ||||
| Average Output Power | POUT | 1 | 5 | dBm | |||
| Extinction Ratio | ER | 8.2 | dB | ||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | ||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | ||||
| Power consumption | 1.8 | W | |||||
| Output Optical Eye | Compliant with IEEE 802.3ae | ||||||
| Receiver | |||||||
| Sensitivity*Note4 | PAPD | -24 | dBm | w/o fiber | |||
| Sensitivity*Note5 | PAPD | -22 | dBm | with fiber | |||
| Receiver Overload | Overload | -7 | dBm | ||||
| LOS Assert | LOSA | -35 | dBm | ||||
| LOS De-Assert | LOSD | -25 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
| Receiver Reflectance | -27 | dB | |||||
Note4: Minimum average optical power measured at the BER less than 1E-12@pattern is PRBS231-1@ER=9dB.
Note5: loopback using 70km fiber (SMF-28)@6.125Gbps~10.3125Gbps
Note6: APD receiver, PRBS 2^31-1, BER 10^ -12
The Trixon TPD-TG70-XXDCR 10G SFP+ DWDM Transceiver Module provides a convenient and cost-effective solution for connecting 10GbE ports over distances of up to 70km. This Small Form-Factor Pluggable Plus Transceiver Module supports a data rate of 10.3Gb/s and is equipped with a cooled 1550nm DWDM EML laser that offers superior performance. It also supports Digital Diagnostic Monitoring (DDM/DOM) that helps ensure accurate and reliable 10GbE network operations. This product is ideal for applications such as data centers, telecom, and enterprise networks.
Wavelength Selection: The DWDM technology allows for multiple wavelengths within the C-Band spectrum (typically 1525nm to 1565nm) to be used for optical communication. If you have specific wavelength requirements within the C-Band, you can discuss your wavelength selection with the manufacturer. They may offer customization options to match your desired wavelengths.
Distance: The standard TPD-TG70-XXDCR module has a distance capability of 70km. If you require a longer or shorter transmission distance, you can discuss your requirements with the manufacturer to explore the availability of customized options.
Temperature Range: If the standard temperature range of 0℃ to +70℃ does not meet your operational environment, you can inquire about the possibility of customizing the temperature range to better suit your specific conditions.
Connector Type: The module may come with a specific connector type (e.g., LC, SC). If you require a different connector type to match your existing infrastructure, you can discuss the possibility of customization with the manufacturer.
Power Budget: If you have specific power budget requirements for your network, you can discuss with the manufacturer to determine if the module can be customized to meet those requirements.
Compatibility: If you have compatibility concerns with your existing equipment or network setup, you can discuss with the manufacturer to ensure that the customized module will be compatible with your specific environment.
We offer technical support and service for SFP+ Transceiver Module. Our service includes:
We guarantee the highest quality of service. Our team of experienced technicians are available to help you with any issues you may have.
If you have any questions or concerns, please do not hesitate to contact us.
The SFP+ Transceiver Module will be packaged in a box with cushioning materials to prevent damage while in transit. The box will be securely sealed to avoid moisture and dirt contamination. Shipping will be done via airfreight, which is the fastest method of transport.
Reference Datasheet File code: DS090042
