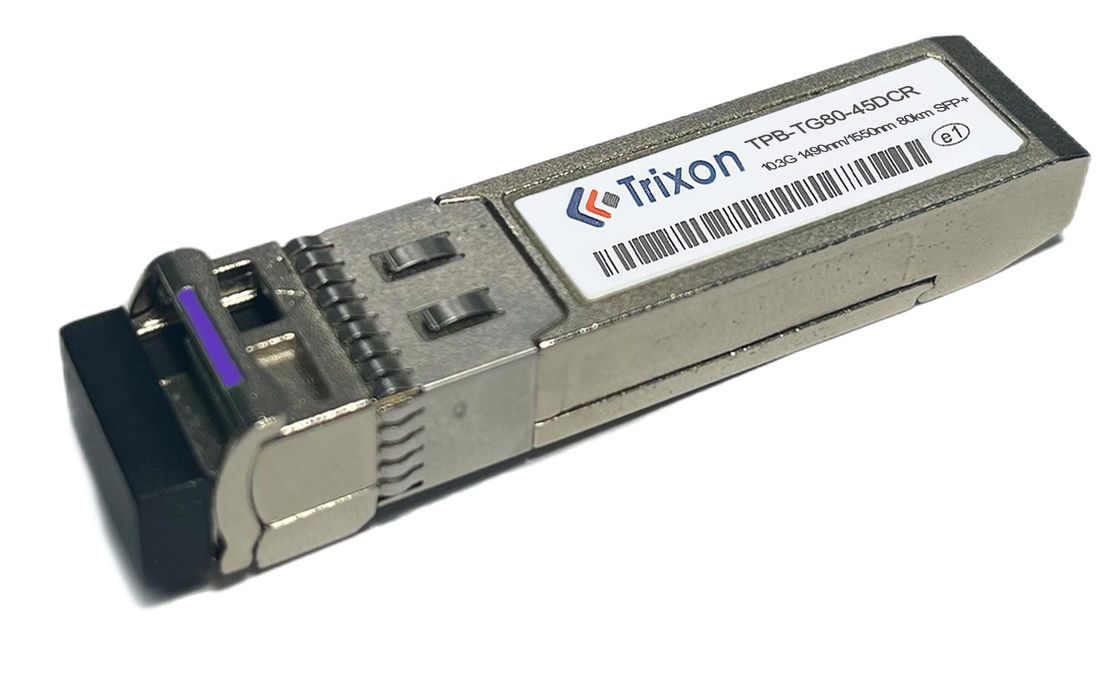

TPB-TG80-45DCR 10G SFP+ BIDI Bi-directional 80km, 1490nm/1550nm,0℃~+70℃,
SFP+ Transceiver Module is a high performance, cost effective module for serial optical data communication applications. It is compliant with Telcordia GR-253-CORE and IEEE802.3ae for 10.3 Gb/s data rate over single mode fiber. It is designed for bi-directional data communications over single LC connector optical interface. It supports operating temperature range from 0℃ to +70℃. It is suitable for short-distance data communication and telecom application.
| Attribute | Description |
|---|---|
| Product Name | 10G SFP+ BIDI Transceiver Module |
| Wavelength | 1490nm-EML 1550nm-APD |
| Compliant | Compliant With Telcordia GR-253-CORE And IEEE802.3ae |
| Temperature Range | 0℃~+70℃ |
| Distance | Up To 80km |
| Optical Interface | Bi-directional Single LC Connector Interface |
| Data Rate | 10.3 Gb/s |
| Fiber Type | SMF |
| DDM/DOM | Yes |
(1550nm/1490nm and 1490nm/1550nm EML/APD,80km-SMF)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1540 | 1550 | 1560 | nm |
| 1480 | 1490 | 1500 | nm | ||
|
Side Mode Suppression Ratio |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note3 | Pout | -1 | - | 4 | dBm |
| Extinction Ratio | ER | 6.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1480 | 1490 | 1500 | nm |
| 1540 | 1550 | 1560 | nm | ||
| Receiver Sensitivity*note4 | SEN | - | - | -23 | dBm |
| Receiver Overload | Pmax | -7 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -24 | dBm |
| LOS Assert | LOSA | -38 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | dB | |
Metropolitan Area Networks (MANs): The module can be used in MANs to establish high-speed and long-distance connections between different locations within a city or metropolitan area.
Wide Area Networks (WANs): It is suitable for long-haul data transmission over WANs, connecting geographically dispersed locations.
Fiber to the x (FTTx): The module can be deployed in FTTx networks, such as Fiber to the Home (FTTH) or Fiber to the Business (FTTB), to provide high-speed broadband services over long distances.
Data Centers: The module can be used for interconnecting data centers that are located far apart, enabling high-bandwidth and low-latency communication between data centers.
Wireless Backhaul: It can be employed in wireless network infrastructure for backhauling data from remote locations to the core network over long distances.
Internet Service Providers (ISPs): The module can be utilized by ISPs to extend their network reach and offer high-speed connectivity to their customers over extended distances.
Trixon TPB-TG80-45DCR Small Form-Factor Pluggable Plus Transceiver Module (SFP+ Transceiver Module) is compliant with Telcordia GR-253-CORE And IEEE802.3ae and features 1490nm-EML 1550nm-APD wavelength, 10.3 Gb/s data rate, and SMF fiber type.
At ABC Company, we provide comprehensive technical support and service for our SFP+ Transceiver Module. Our team of highly trained technical experts are available to answer any questions you have about our product. We offer a variety of services including:
We are committed to ensuring that our customers get the best possible experience with our SFP+ Transceiver Module. If you have any questions or need assistance with your product, please contact us today.
The SFP+ Transceiver Module is securely packaged in an anti-static bag and shipped in a corrugated box. The box is designed to protect the SFP+ Transceiver Module during transport and handling.
Reference Datasheet File code: DS200004
