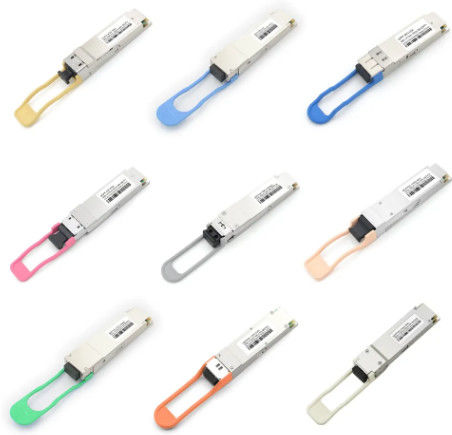

MMF Fiber Type AOC Transceiver Multi Mode 25Gbps 850nm TAS-X5A3-85NCR

MMF Fiber Type AOC Transceiver Multi Mode 25Gbps 850nm TAS-X5A3-85NCR
Features Gallery Product Description Request A Quote
Data Rate: 25Gbps
Wavelength: 850nm
Fiber Type: MMF
Fiber Mode: Multi Mode
Cable Type: Duplex
Product Name: AOC Transceiver
Optical Interface: AOC
Operating Temperature: -5~70°C

AOC Transceiver 25Gbps


MMF Fiber Type AOC Transceiver


AOC Multi Mode Transceiver 850nm

Basic Infomation
Place of Origin: CHINA
Brand Name: Trixon
Certification: UL,TUV,FCC,CE,ROHS
Model Number: TAS-X5A3-85NCR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

TAS-X5A3-85NCR Cost-Effective AOC Transceiver for 3m Max Distance -5-70°C MMF Fiber Type

Product Description:

AOC Transceiver

The Automatic Optical Connector (AOC) Transceiver is a type of high performance duplex fiber optic transceiver. It uses Multi-Mode Fiber (MMF) technology, allowing it to transmit data over distances of up to 3m. This transceiver was designed with Automatic Optical Connector technology, making it a reliable and efficient way to transfer data over short distances. This transceiver is a great choice for those who need to transfer data over short distances with fast speeds and reliable performance.


Product Name AOC Transceiver
Wavelength 850nm
Operating Temperature -5~70°C
Fiber Mode Multi-Mode
Fiber Type MMF
Max Distance 3m
Optical Interface AOC
Data Rate 25Gbps
Cable Type Duplex

Technical Parameters:

Absolute Maximum Ratings*Note4
Parameter Symbol Min Max Unit
Storage Temperature Tst -20 85 degC
Relative Humidity (non-condensation) RH - 85 %
Supply Voltage VCC -0.5 3.6 V
Voltage on LVTTL Input Vilvttl -0.5 VCC+0.5 V
LVTTL Output Current Lolvttl - 15 mA
Voltage on Open Collector Output Voco 0 6 V



It provides a reliable connection with high speed and stability, making it suitable for applications such as data center networks, cloud computing, enterprise networks, and high-performance computing. It is ideal for connecting multiple devices, as well as for connecting multiple nodes in a single network. It also supports advanced features such as QoS, dynamic bandwidth allocation, and traffic shaping. It is easy to install and provides a cost-effective solution for any application. With its advanced features and robust design, the Trixon TAS-X5A3-85NCR Automatic Optical Connector Transceiver is the perfect solution for any application that requires reliable and high-performance optical connectivity.



  • Length: The length of the AOC module can be customized according to actual needs. According to the transmission distance requirements, AOC optical cables of different lengths can be customized to adapt to various application scenarios.
  • Data transmission rate: The AOC module can support different data transmission rates as needed, such as 10Gbps, 25Gbps, 40Gbps, 100Gbps, etc. According to actual needs, AOC modules with corresponding rates can be customized.
  • Interface type: AOC modules can be customized with different interface types to adapt to different equipment and application requirements. Common interface types include SFP, QSFP, CXP, etc., which can be customized according to specific requirements.
  • Fiber type: The AOC module can use different types of optical fibers as needed, such as single-mode fiber (Single-Mode Fiber) or multi-mode fiber (Multi-Mode Fiber). The specific choice depends on the transmission distance and bandwidth requirements.
  • Other special needs: According to specific application scenarios and needs, the AOC module can also be customized. For example, special shell design, protective coating, anti-interference ability, etc.


Support and Services:

AOC Transceiver provides technical support and services to our customers.
Our technical support team is available to answer questions and resolve issues. Our staff of knowledgeable and experienced technicians can provide remote assistance and on-site support when necessary. We also offer an online knowledge base with helpful tips and tutorials.
We provide a variety of services to our customers, from installation and configuration to troubleshooting and repair. Our service plans are customized to meet the needs of each customer, and include extended warranties and on-site maintenance. We also offer training and consulting services.

Packing and Shipping:


Packaging and Shipping of AOC Transceiver

The AOC Transceiver is a versatile and easy-to-use device. It is designed to provide fast and reliable transmission of data for a wide range of applications. The product is packaged and shipped using high-quality materials to ensure that it arrives in perfect condition.


The AOC Transceiver is securely packaged to prevent any damage during shipping. It is packaged in a sturdy cardboard box with protective foam inserts to ensure that the product remains safe during transit. The box also contains an instruction manual, a warranty card, and the necessary cables and accessories needed for installation and use.


The AOC Transceiver is shipped using a reliable courier service. The package is tracked and insured to ensure its safe arrival at its destination. The package is typically delivered within three to five business days from the time of ordering.
Reference Datasheet file code:DS180007 (100G 25G AOC)
