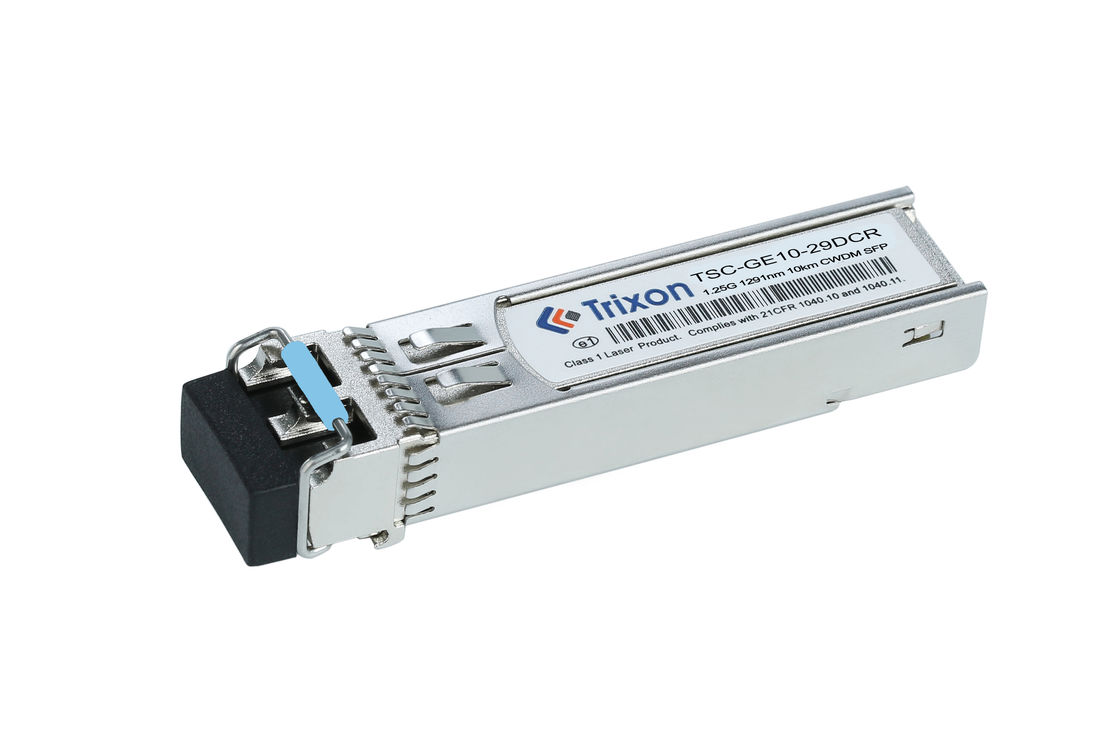

TSC-GE10-XXDCR CWDM 1.25G SFP 1270-1610nm Wavelength Data Rate 10km

TSC-GE10-XXDCR  CWDM 1.25G SFP 1270-1610nm  Wavelength Data Rate 10km
Features Gallery Product Description Request A Quote
Data Rate: 1.25G
Connector Type: LC
Warranty: 3 Years
Pluggable: Hot Pluggable
DDM: Yes
Distance: 10km
Power Supply: 3.3V
Basic Infomation
Place of Origin: China
Brand Name: Trixon
Certification: UL,TUV,FCC,CE,ROHS
Model Number: TSC-GE10-XXDCR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

Product Description:

The SFP CWDM optical transceivers are high performance, cost effective modules. They offer the customer a range of design options, including optional DDMI, standard or extend temperature ranges. They are designed to provide Gigabit Ethernet compliant connections. These transceivers are qualified in accordance withGR-468-CORE.



  • ParametersSpecification
    Connector TypeLC
    PluggableHot Pluggable
    Warranty3 Years
    Temperature Range0℃~70℃
    Wavelength1270 Nm-1610 Nm
    Power Supply3.3V
    Data Rate1.25G
    Product NameCWDM SFP Transciver Module

Technical Parameters:

Centre WavelengthλcXX-6.5XXXX+6.5nmXX:Note1
Spectral Width*Note4∆λ  1nm
Average Output PowerPOUT-9 0dBm
Extinction RatioER8.2  dB

Side Mode Suppression



Average Power of OFF


Output Optical EyeCompliant with IEEE 802.3ah-2004


Centre Wavelengthλc11001650nm
Sensitivity*Note5Pin-24 dBm ST
Receiver OverloadOverload0 dBm
Optical Return Loss 12 dB
LOS AssertLOSA-35 dBm
LOS De-AssertLOSD -23dBm ST
LOS Hysteresis 0.54dB


TSC-GE10-XXDCR is a CWDM 1.25G SFP module suitable for 10 kilometers transmission distance, with a wavelength range of 1270-1610 nanometers. It can be used in applications such as fiber optic network expansion, data center interconnection, remote monitoring and video transmission, and wireless base station connectivity.



  • Customized wavelength configuration: Based on your needs, we can adjust the wavelength range of the CWDM SFP module to suit the specific fiber optic network environment. You can specify a desired wavelength range or a specific number of wavelengths.
  • Customized transmission distance: If you need to cover a transmission distance of more than 10 kilometers, we can provide corresponding customized solutions according to your requirements. We can adjust the module's performance parameters to support longer transmission distances.
  • Customized data rates: If you need different data rates, we can provide customized CWDM SFP modules as per your requirements. Whether it's a higher rate or a lower rate, we can adjust it to your application needs.
  • Customized packaging and interfaces: We can provide different packaging and interface options based on your needs to ensure compatibility with your devices and systems. This includes different connection types (such as LC, SC, etc.) and mechanical dimensions

Support and Services:

SFP Transciver Module Technical Support & Services

We provide technical support and services for SFP Transciver Module products to ensure that your installation and maintenance process is smooth and effective.

  • 24/7 technical support
  • Product documentation
  • Troubleshooting
  • Software updates
  • Installation and setup assistance
  • Hardware replacement and repair

Packing and Shipping:

Packaging and Shipping of SFP Transciver Module

The SFP Transciver Module is packaged in a sturdy cardboard box with a foam insert to ensure that the product is secure and protected during transit. The box is labeled with the product name, serial number and other relevant information.
The package is then shipped via a reputable shipping service, such as FedEx or UPS. Tracking information is provided to ensure that the package is delivered to the desired destination safely and on time.
