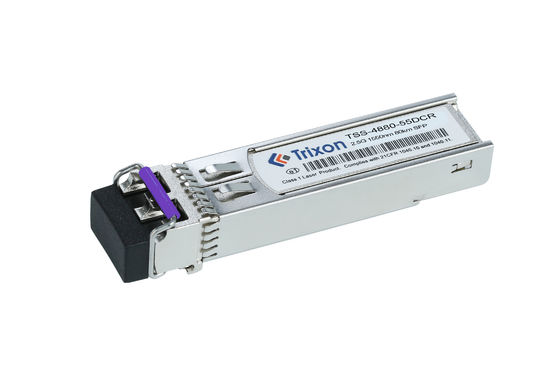

TSS-4880-55DCR 2.5G SFP Transceiver Module 80km Distance 1550nm -5C ~+70C Temperature Range
Product Description:
SFP Transciver Module is a high performance product designed for data communication and network applications. It provides up to 2.5G data rate with a maximum distance of 80km. This module is equipped with a LC connector type and DDMI feature, which allows it to operate in a temperature range of -5~70degree.
Features:
-
| Property |
Value |
| Warranty |
3 Years |
| Distance |
80km |
| Fiber Type |
Single-Mode |
| Temperature Range |
-5℃ ~+70℃ |
| Wavelength |
1550nm |
| Pluggable |
Hot Pluggable |
| Power Supply |
3.3V |
| DDM |
Yes |
| DDMI |
DDM |
| Data Rate |
2.5G |
Technical Parameters:
| Parameter |
Symbol |
Min |
Typ. |
Max |
Unit |
Note |
| Transmitter |
| Centre Wavelength |
λc |
1530 |
1550 |
1570 |
nm |
|
| Spectral Width*Note4 |
∆λ |
|
|
1 |
nm |
DFB-LD |
| Average Output Power |
POUT |
-2 |
|
+3 |
dBm |
|
| Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
| Average Power of OFF Transmitter |
POFF |
|
|
-45 |
dBm |
|
| Output Optical Eye |
Complies with STM-16/OC-48 eye masks when filtered |
|
| Receiver |
| Centre Wavelength |
λc |
1200 |
|
1600 |
nm |
|
| Sensitivity*Note5 |
PIN |
|
|
-28 |
dBm |
|
| Receiver Overload |
Overload |
-9 |
|
|
dBm |
|
| Optical Return Loss |
|
12 |
|
|
dB |
|
| LOS Assert |
LOSA |
-40 |
|
|
dBm |
|
| LOS De-Assert |
LOSD |
|
|
-29 |
dBm |
|
| LOS Hysteresis |
|
0.5 |
|
4 |
dB |
|
Applications:
.
- Telecom Networks: The TSS-4880-55DCR transceiver can be used in telecommunications networks to enable high-speed data transmission over long distances. It can connect network equipment such as switches, routers, and optical transport systems, allowing data to be transmitted reliably over fiber-optic cables.
- Metropolitan Area Networks (MANs): This transceiver module can be utilized in MANs, which cover larger geographical areas than local area networks (LANs). It enables data transmission between network nodes located in different parts of a city or metropolitan region.
- Wide Area Networks (WANs): WANs connect multiple LANs or MANs over long distances, often spanning multiple cities or even countries. The TSS-4880-55DCR transceiver can be deployed in WAN infrastructure to facilitate high-speed and long-range data transmission.
- Fiber Optic Backbone Networks: In large-scale network deployments, such as data centers or enterprise networks, fiber optic backbone networks are used to interconnect various network elements. The 2.5G SFP transceiver module with an 80km reach is suitable for establishing connections between backbone switches, providing high-speed and long-distance connectivity.
- Remote Monitoring and Surveillance: The transceiver's long-distance capability makes it suitable for applications like remote monitoring and surveillance systems. It can transmit video, audio, and data signals over extended distances, allowing for the remote monitoring of critical infrastructure, industrial sites, or security-sensitive areas.
- Utilities and Energy Sector: The TSS-4880-55DCR transceiver can be deployed in utility networks, such as power grids or oil and gas pipelines, to enable communication between various monitoring and control devices. It facilitates reliable data transmission over long distances, ensuring the efficient and secure operation of critical infrastructure.
- Research and Education Networks: Research institutions and educational facilities often require high-speed and long-range connectivity for data-intensive applications. The 2.5G SFP transceiver module can be used in these networks to support data transfer between different campuses or research facilities.
Customization:
Connector type: Transceiver modules may support different connector types such as LC, SC, or ST. You can inquire whether a specific connector type is suitable for your network infrastructure.
Temperature Range: Although the TSS-4880-55DCR transceiver module has a specified temperature range of -5°C to +70°C, you can discuss with the manufacturer the option of customizing the temperature range to better suit your operating environment .
Power Consumption: Based on your power consumption needs, you can customize the power consumption of the transceiver module. This is particularly useful in scenarios where power efficiency is required.
Distance Range: Although the TSS-4880-55DCR transceiver module has a distance range of 80km, you can inquire about custom short or long range module options depending on your specific network needs.
Wavelength: The operating wavelength of the transceiver module is usually 1550nm. If your network has specific wavelength requirements, check with the manufacturer for customization options.
Protocol Support: The TSS-4880-55DCR transceiver module may support standard protocols such as Ethernet or Fiber Channel. If you need support for a specific protocol or additional protocol functionality, inquire about customization options.
Support and Services:
SFP Transciver Module Technical Support and Service
We provide technical support and service for SFP Transciver Module. Our team of experienced technical support engineers provides comprehensive technical services, including:
- Installation and maintenance of SFP Transciver Module products
- Troubleshooting and diagnostics
- Configuration assistance and optimization
- Firmware and software updates
- Remote repair and service
Regardless of the scope of your project, our team can provide the technical services you need. Contact us today for more information.
Packing and Shipping:
Packaging and Shipping of SFP Transceiver Module
- The SFP Transceiver Module will be securely packaged in a static shielding bag.
- The static shielding bag will be placed in a corrugated cardboard box.
- The box will be labeled with the product name, model number, part number, and serial number.
- The box will be sealed with tape and placed in a larger cardboard box.
- The larger box will be marked with a label that includes the product name, shipping address, and return address.
- The larger box will be sealed securely with packing tape.
- The box will be shipped via a secure shipping carrier.
