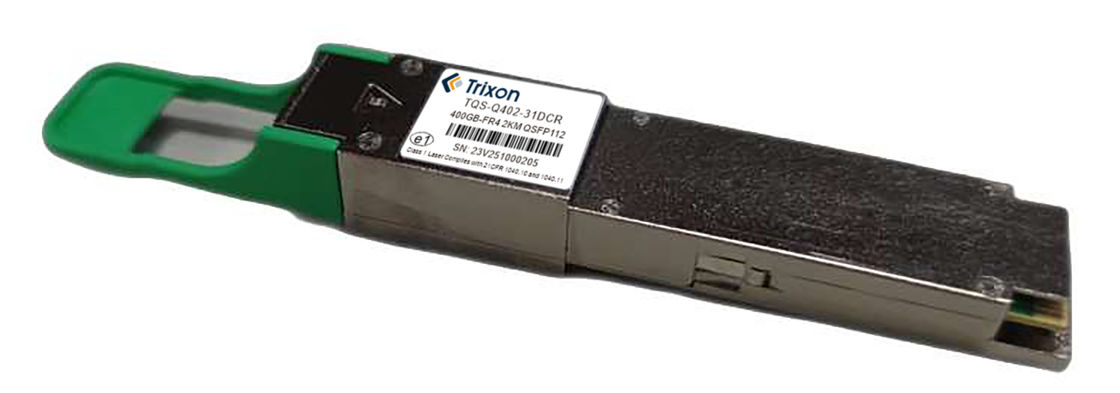

Name: 400G-FR4 2KM 400G Transceiver QSFP-112/ TQS-Q402-31DCR
Brand: Sichuan Trixon Communication Technology Corp.,Ltd
SKU: TQS-Q402-31DCR
Availability: InStock

Brand Name:	Trixon
Model Number:	TQS-Q402-31DCR
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,TUV,FCC,CE,ROHS

Fiber Type:

SMF

Data Rate:

425Gbps

Laser:

1310nm EML Laser

Distance:

2KM

Optical Interface:

MPO

Temperature:

0~+70℃

Highlight:

400G-FR4 400G Transceiver

TQS-Q402-31DCR 400G Transceiver

2KM QSFP-112 400G Transceiver

Product Description

Features:

Compliant with 400GBASE-FR4(IEEE802.3cu)
Compliant with IEEE802.3ck standard:400GAUI-4 C2M electrical interface
Compliant with QSFP-DD MSA HW Rev 6.2type 2 housing with duplex LC connector
Compliant with QSFP-DD CMIS Rev 5.0
Case operating temperature 0 to 70℃
Complies with EU Directive 2011/65/EU(RoHS compliant)
Class 1 Laser

Optical Performance

Parameter	Symbol	Min	Typ.	Max	Unit
Transmitter
Wavelength L1	λ1	1264.5	1271	1277.5	nm
Wavelength L2	λ2	1284.5	1291	1297.5	nm
Wavelength L3	λ3	1304.5	1311	1317.5	nm
Wavelength L4	λ4	1324.5	1331	1337.5	nm
SMSR		30			dB
Average launch power, each lane	Pout	-3.2		4.4	dBm
Outer OMA, each lane	OMAouter			3.7	dBm
Transmitter and dispersion eye closure for PAM4	TDECQ			3.4	dB
\| TDECQ - TECQ \|				2.5	dB
Optical Return Loss Tolerance	TOL			17.1	dB
Average POUT (Laser Turn off)	Poff		-	-16	dBm
Extinction Ratio,each lane	ER	3.5	-	-	dB
Transmitter transition time				17	ps
RIN17.1OMA	RIN			-136	dB/Hz
Transmitter Reflectance	Tr			-26	dB

Parameter	Symbol	Min	Typ.	Max	Unit
Receiver
Wavelength L0	λ0	1264.5	1271	1277.5	nm
Wavelength L1	λ1	1284.5	1291	1297.5	nm
Wavelength L2	λ2	1304.5	1311	1317.5	nm
Wavelength L3	λ3	1324.5	1331	1337.5	nm
Damage threshold, each lane	Pd	5.4			dBm
Average receive power, each lane*^Note1	Pa	-7.2	-	4.4	dBm
Receive power (OMAouter), each lane	RXoma	-	-	3.7	dBm
Receiver Reflectance				-26	dBm
Receiver Sensitivity (OMAouter), each lane for TECQ <1.4dB for 1.4=TECQ=3.4dB	SOMA	-	-	- 4.6 -6+TECQ	dBm
Stressed Receiver Sensitivity (OMAouter), each lane*^Note2		-	-	-2.6	dBm
Stressed eye closure for PAM4 (SECQ)			3.4		dB
OMAouter of each aggressor lane			1.4		dBm
