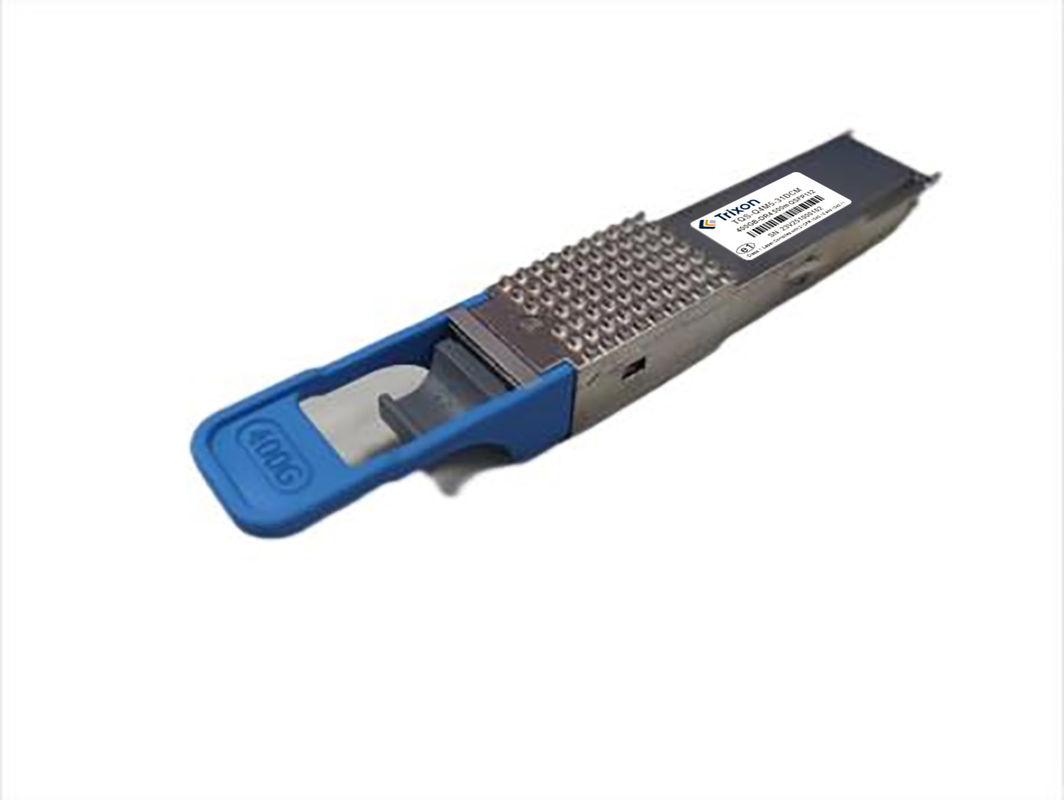

Name: 400G-DR4 500m 400G Transceiver QSFP112/ TQS-Q4M5-31DCM
Brand: Sichuan Trixon Communication Technology Corp.,Ltd
SKU: TQS-Q4M5-31DCM
Availability: InStock

Brand Name:	Trixon
Model Number:	TQS-Q4M5-31DCM
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,TUV,FCC,CE,ROHS

Fiber Type:

SMF

Data Rate:

425Gbps

Laser:

1310nm EML Laser

Distance:

500M

Optical Interface:

MPO

Temperature:

0~+70℃

Highlight:

400G-DR4 400G Transceiver

TQS-Q4M5-31DCM 400G Transceiver

QSFP112 400G Transceiver

Product Description

Features:

 Compliant with IEEE 802.3cu-2021: - 8x100GBASE-DR optical interface

 Compliant with IEEE 802.3ck-2022: - 8x100GAUI-1 C2M electrical interface

 Compliant with OSFP MSA HW Rev 5.0 Type 2

 Compliant with CMIS Rev 5.0

 Case operating temperature 0°C to 70°C

 Two wire serial Interface with digital diagnostic monitoring

 Complies with EU Directive 2011/65/EU (RoHS compliant)

 Class 1 Laser

Optical Performance

Parameter	Symbol	Min	Typ.	Max	Unit
Transmitter
Centre Wavelength	λ		1311		nm
SMSR		30			dB
Average launch power, each lane	Pout	–2.9		4	dBm
Outer OMA, each lane ^Note5	OMAouter	-0.8		4.2	dBm
Launch Power in OMAouter minus TDECQ, each lane	T_OMA	-2.2			dB
Transmitter and dispersion eye closure for PAM4	TDECQ			3.4	dB
TDECQ – 10log10(Ceq)				3.4	dB
Optical Return Loss Tolerance	TOL			21.4	dB
Average POUT (Laser Turn off)	Poff		-	-15	dBm
Extinction Ratio,each lane	ER	3.5	-	-	dB
Transmitter transition time				17	ps
RIN_17.1OMA	RIN			-136	dB/Hz
Transmitter Reflectance	Tr			-26	dB

Tags:

400G Transceiver

osfp 400g

400gbase SR4

Products Details

Home > Products >

400G Transceiver

400G-DR4 500m 400G Transceiver QSFP112/ TQS-Q4M5-31DCM

All Category

QSFP Transceiver Module

SFP Transceiver Module

SFP+ Transceiver Module

100G QSFP28 Transceiver

400G Transceiver

800G Transceiver

25G SFP28 Transceiver

40G QSFP+ Transceiver

Copper Transceiver

SGMII Transceiver

AOC Transceiver

DAC Transceiver

PON Transceiver

OSA Components

BOSA

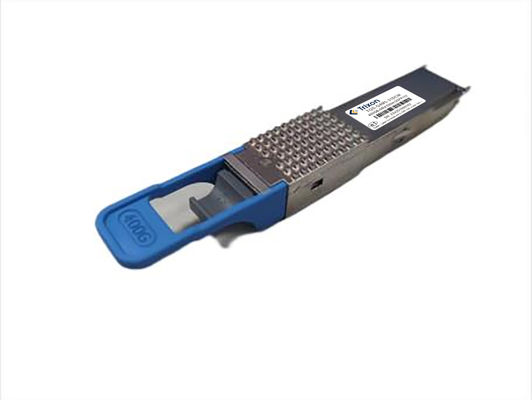

400G-DR4 500m 400G Transceiver QSFP112/ TQS-Q4M5-31DCM
