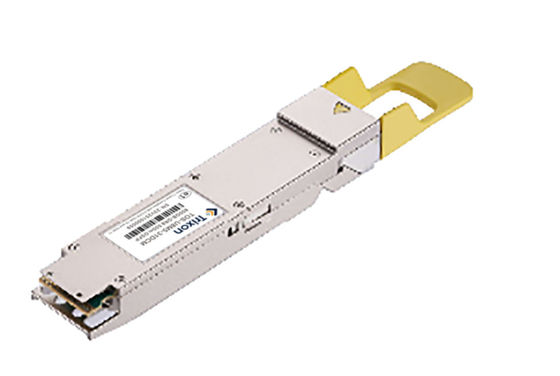

| Brand Name: | Trixon |
| Model Number: | TOS-Q4M5-31DCM |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
Features:
Compliant with IEEE 802.3cu-2021: - 8x100GBASE-DR optical interface
Compliant with IEEE 802.3ck-2022: - 8x100GAUI-1 C2M electrical interface
Compliant with OSFP MSA HW Rev 5.0 Type 2
Compliant with CMIS Rev 5.0
Case operating temperature 0°C to 70°C
Two wire serial Interface with digital diagnostic monitoring
Complies with EU Directive 2011/65/EU (RoHS compliant)
Class 1 Laser
Optical Performance
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Wavelength | λC | 1304.5 | 1311 | 1317.5 | nm | |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | |
| Average Launch Power, each lane | AOPL | -2.9 | - | 4.0 | dBm | 1 |
| Outer Optical Modulation Amplitude (OMAouter), each Lane | TOMA | -0.8 | - | 4.2 | dBm | |
|
Launch power in OMAouter minus TDECQ, each lane for extinction ratio >= 5 dB for extinction ratio < 5 dB |
TOMA-TDECQ |
-2.2 -1.9 |
- |
- |
dBm | |
| Transmitter and Dispersion Eye Closure for PAM4 (TDECQ), each lane | TDECQ | - | - | 3.4 | dB | |
| TDECQ – 10log10(Ceq), each lane | Ceq | - | - | 3.4 | dB | |
| Average Launch Power of OFF Transmitter, each lane | TOFF | - | - | -15 | dBm | |
| Extinction Ratio | ER | 3.5 | - | - | dB | |
| Transmitter transition time | Tr | 17 | ps | |||
| RIN15.5OMA | RIN | - | - | -136 | dB/Hz | |
| Optical return loss tolerance | ORL | - | - | 15.5 | dB | |
| Transmitter Reflectance | TR | - | - | -26 | dB | 2 |
|
|
