RoHS/CE/FCC Compliant SFP Optic Module for Single Fiber Communication System

Negotiable
MOQ
Negotiable
Price
RoHS/CE/FCC Compliant SFP Optic Module for Single Fiber Communication System
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Data Rate: Up To 1.25 Gbps
Distance: Up To 15km
Interface: Duplex LC Connector
Source: DFB
Mode: Single Mode
Hot Pluggable: Yes
Power Supply: Single 3.3V
Products Status: Stock
Highlight:

Single Fiber SFP Optic Module

,

RoHS SFP Optic Module

,

CE SFP Optic Module

Basic Infomation
Place of Origin: China
Brand Name: Trixon
Certification: UL,TUV,FCC,CE,ROHS
Model Number: TSB-GE03-35DIR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

Product Description:

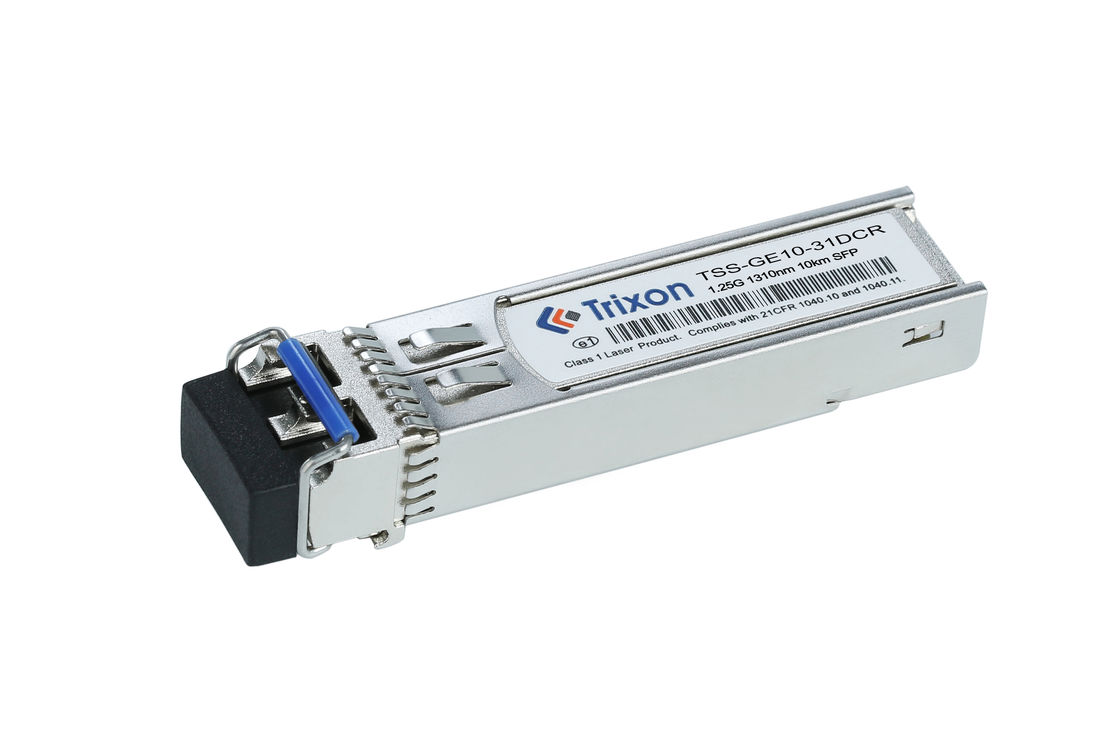

The SFP Transceiver Module uses a 1310nm-FP laser and comes equipped with an LC Connector. The use of a DFB source enhances the performance of the module, allowing for reliable and efficient data transmission.

The SFP Fiber Module is a versatile and cost-effective solution for expanding your network capabilities. It is compatible with a variety of networking devices and can be used for applications such as data centers, telecommunications, and enterprise networks.


Features:

  • Product Name: SFP Transceiver Module
  • Operating data rate: up to 1.25 Gbps
  • Interface: Duplex LC Connector
  • Compliant with: MSA SFP Specification SFF-8472, IEEE 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev 10.0
  • Form Type: SFP
  • Mode: Single Mode

This SFP Transceiver Module is also known as SFP Optic Module, SFP Mini-GBIC Module, or Gigabit Interface Converter Transceiver.


Technical Parameters:

Interface Duplex LC Connector
Power Supply Single 3.3V
Hot Pluggable Yes
Operating Case Temperature -5℃ ~+70℃
Connector LC Connector
Compliant with MSA SFP Specification SFF-8472, IEEE 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev 10.0
Voltage +3.3V
Product Category SFP Transceiver Module
Compliance RoHS/CE/FCC
Laser 1310nm-FP

Applications:

With its 1310nm-FP laser and Duplex LC Connector interface, the Trixon TSB-GE03-35DIR SFP Transceiver Module is compatible with a wide range of networking equipment. It is also certified by UL, TUV, FCC, CE, and ROHS, ensuring that it meets the highest standards of safety and quality.

Whether you need to connect switches, routers, servers, or other networking devices, the Trixon TSB-GE03-35DIR SFP Transceiver Module is an excellent choice. Its stock availability ensures that you can get your hands on it quickly, and its compliant with MSA SFP Specification SFF-8472, IEEE 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev 10.0 makes it a reliable and versatile option for a wide range of applications.

With a negotiable Minimum Order Quantity, Price, Payment Terms, Supply Ability, Delivery Time, and Packaging Details, the Trixon TSB-GE03-35DIR SFP Transceiver Module is a flexible and convenient choice for any project, large or small.

So if you're looking for a high-quality SFP Transceiver Module that is both reliable and versatile, look no further than the Trixon TSB-GE03-35DIR. Its Mini GBIC Module form factor, SFP Optic Module design, and SFP Gigabit Transceiver capabilities make it an excellent choice for a wide range of networking applications.


Support and Services:

The SFP Transceiver Module product technical support and services include:

  • Installation assistance
  • Troubleshooting and problem resolution
  • Configuration and setup guidance
  • Compatibility information
  • Product updates and downloads
  • Warranty and repair services

Packing and Shipping:

Product Packaging:

  • 1 x SFP Transceiver Module
  • 1 x User manual

Shipping:

  • Shipping method: Standard
  • Estimated delivery time: 5-7 business days
  • Shipping cost: Free

FAQ:

Q: What is the brand name of the SFP Transceiver Module?

A: The brand name is Trixon.

Q: What is the model number of the SFP Transceiver Module?

A: The model number is TSB-GE03-35DIR.

Q: What certifications does the SFP Transceiver Module have?

A: The SFP Transceiver Module is UL, TUV, FCC, CE, and ROHS certified.

Q: Where is the SFP Transceiver Module manufactured?

A: The SFP Transceiver Module is made in China.

Q: What are the payment terms for purchasing the SFP Transceiver Module?

A: The payment terms for purchasing the SFP Transceiver Module are L/C and D/P.
