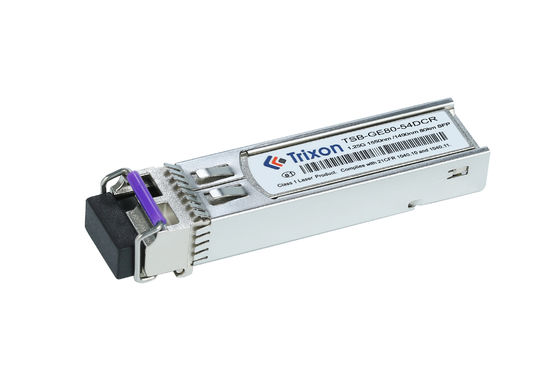

This SFP Transciver Module is fully compliant with MSA SFP Specification and it is designed with a duplex LC connector. It supports both 1310nm and 1550nm wavelengths, and provides up to 10km transmission distance over single-mode fiber (SMF). With a single 3.3V power supply and TTL logic interface, the module is highly reliable and provides a low power consumption solution.
| Parameter | Value |
|---|---|
| Temperature Range | -40℃ ~+85℃ |
| Product Name | 1.25G GBE Bi-directional SFP Transceiver |
| Distance | 10km |
| Wavelength | 1310nm/1550nm |
| Fiber Type | SMF |
| DDMI | YES |
| Data Rate | Operating Data Rate Up To 1.25Gbps |
| Connector Type | Single LC Connector Interface |
| Pluggable | Hot Pluggable |
| Compliant | Compliant With MSA SFP Specification |
(1310nm/1550nm ,FP/DFB and PIN, 10km)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1280 | 1310 | 1340 | nm | 1310nmTX/1550nmRX | |
| 1510 | 1550 | 1580 | nm | 1550nmTX/1310nmRX | |||
| Spectral Width*Note4 | ∆λ | 4 | nm | FP-LD | |||
| 1 | nm | DFB-LD | |||||
| Average Output Power | POUT | -9 | -3 | dBm | |||
| Extinction Ratio | ER | 10 | dB | ||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | ||||
| Output Optical Eye | Compliant with eye mask Telcordia GR-253-CORE and IEEE 802.3ah-2004 | ||||||
| Receiver | |||||||
| Centre Wavelength | λc | 1510 | 1580 | nm | 1310nmTX/1550nmRX | ||
| 1280 | 1340 | nm | 1550nmTX/1310nmRX | ||||
| Sensitivity*Note5 | PIN | -22 | dBm | ||||
| Receiver Overload | Overload | -3 | dBm | ||||
| Optical Return Loss | 12 | dB | |||||
| LOS Assert | LOSA | -35 | dBm | ||||
| LOS De-Assert | LOSD | -25 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
The Trixon TSB-GE10-35DIR is a 1.25G GBE bi-directional SFP transceiver with Digital Diagnostic Monitoring Interface (DDMI) capability. This transceiver is equipped with a LC optical connector and is compatible with SMF fiber up to 10km. It has a wavelength of 1310nm/1550nm, making it suitable for various applications such as Ethernet, Fibre Channel and SONET/SDH. Not only does it provide a cost-effective solution for 10G Ethernet applications, but it also provides superior performance and reliability. This transceiver is also designed to meet the stringent requirements of industrial and commercial applications, providing superior performance in any environment. With its superior performance and DDMI capability, the Trixon TSB-GE10-35DCR is the perfect choice for any 10G Ethernet application.
Wavelength: Depending on your requirements, you can choose from different wavelength combinations to suit your specific fiber and transmission distance needs.
Transmission distance: You can customize the transmission distance to adapt to different network architectures and transmission needs.
Operating temperature range: You can customize the operating temperature range according to the requirements of environmental conditions to ensure the reliability and stability of the device under various temperature conditions.
Compatibility: You can choose to customize the interface to be compatible with specific network devices or protocols to ensure seamless integration with existing equipment.
Special requirements: If you have any other special requirements, such as power budget, optical performance, size, etc., you can discuss in detail with the supplier and customize the TSB-GE10-53DIR.
Technical support and service for SFP Transciver Module include:
Packaging and Shipping of SFP Transciver Module:
Reference Datasheet File code:DS100033
