The 10G SFP+ CWDM Transceiver Module is compliant with SFF-8431 and SFF-8432, offering 24dB power budget (DML) and 14.5dB power budget (EML). It has a maximum power consumption of 1W for DML and 2W for EML. The module also provides Digital Diagnostic Monitoring (DDM) and Digital Optical Monitoring (DOM) functions, making it a reliable and cost-effective solution for high-speed optical network applications.
The SFP+ Transceiver Module is designed to provide a high-speed, low-cost solution for 10Gbps fibre-optic network applications. With its advanced optical and electrical performance, the module is able to deliver up to 10Gbps data rate over single-mode and multimode optical fibre. It is an ideal solution for high-speed 10Gbps Ethernet and Fibre Channel applications.
The 10G SFP+ CWDM Transceiver Module is a reliable and cost-effective solution for high-speed optical network applications. It is designed to provide superior performance and reliability in an economical package, making it an ideal choice for 10Gbps fibre-optic network applications.
| Attribute | Value |
|---|---|
| Data Rate | 10.3 Gb/s |
| Power Budget(dB) | 24dB(DML) 14.5dB (EML) |
| DDM/DOM | Yes |
| Temperature Range | 0℃ ~+70℃ |
| Optical Interface | Duplex LC Connector Interface |
| Fiber Type | SMF |
| Package | Hot Pluggable SFP+ MSA Package |
| Compliant | Compliant With SFF-8431 And SFF-8432 |
| Distance | 40km |
| Laser | CWDM DFB 1271~1451nm CWDM EML 1471~1571nm |
10.3Gbps 40KM DML(1271-1451) Power Budget 24dB
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note6 | ||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||
| Average Output Power | POUT | 2 | 7 | dBm | ||||
| Extinction Ratio | ER | 3.5 | dB | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||
|
Transmitter and Dispersion Penalty |
TDP | 3.5 | dB | |||||
| Optical Return Loss Tolerance | ORLT | 12 | dB | |||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||
| Sensitivity*Note4 | APD | -22 | dBm | |||||
| Receiver Overload | Overload | -7 | dBm | Note4 | ||||
| Receiver Reflectance | -12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -24 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
10.3Gbps 40KM EML(1471-1611) Power Budget 14.5dB
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note7 | ||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||
| Average Output Power | POUT | -1 | 5 | dBm | ||||
| Extinction Ratio | ER | 6 | dB | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||
|
Transmitter and Dispersion Penalty |
TDP | 3 | dB | |||||
| Optical Return Loss Tolerance | ORLT | 12 | dB | |||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||
| Sensitivity*Note4 | PIN | -15.5 | dBm | |||||
| Receiver Overload | Overload | 0.5 | dBm | |||||
| Receiver Reflectance | -12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -17 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||

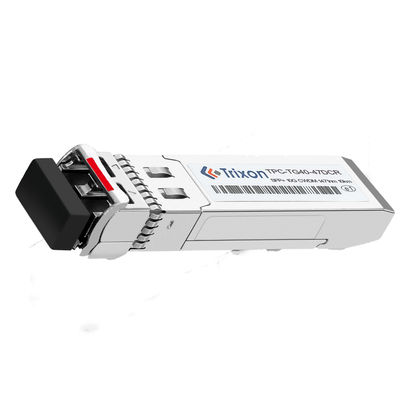

The SFP+ Transceiver Module, specifically the Trixon TPC-TG40-27~61DCR model, is a cutting-edge product originating from China. It is designed for compatibility with single-mode fiber (SMF) and operates within a temperature range of 0℃ to +70℃. This module incorporates DDM/DOM functionality and boasts a maximum power consumption of 1W for DML and 2W for EML. Equipped with a Duplex LC Connector Interface, it finds extensive utility in data centers, storage area networks, fiber channels, and various other applications.
The outstanding performance of the SFP+ Transceiver Module has made it a popular choice in data centers, storage area networks, fiber channels, and related fields. Its exceptional reliability ensures stable connections between different devices. Additionally, it offers low power consumption and can operate within a temperature range of 0℃ to +70℃. Crafted from top-quality materials and manufactured with precision, this module guarantees a long lifespan and consistently high performance. The inclusion of DDM/DOM functionality and the Duplex LC Connector Interface further simplifies installation and use.
For those seeking seamless device connectivity in data centers, storage area networks, fiber channels, and similar domains, Trixon's SFP+ Transceiver Module is an essential solution. Its affordability, reliability, low power consumption, and exceptional performance make it an ideal choice. The module's Duplex LC Connector Interface and temperature range of 0℃ to +70℃ ensure effortless installation and use. Additionally, its premium materials and precision manufacturing processes guarantee longevity and consistent high performance.
Contacting the Manufacturer: Establish contact with the manufacturer or supplier responsible for the TPC-TG40-27~61DCR transceiver module and initiate communication regarding their customization capabilities. Request their assistance and guidance in meeting your specific requirements.
Specify Customization Requirements: Clearly communicate the exact details of your customization needs to the manufacturer. Provide them with comprehensive information on desired specifications, performance parameters, wavelength requirements, temperature ranges, or any other specific features necessary for your application. The more specific and detailed you are, the better the manufacturer can understand and address your needs.
Consultation with the Manufacturer: Engage in in-depth discussions with the manufacturer to evaluate the feasibility of your customization requests. Seek their technical expertise and guidance, as they can provide valuable insights and recommendations based on their capabilities and experience. They will also inform you of any potential limitations or trade-offs associated with your requested customizations.
Cost and Lead Time Evaluation: Understand that customization may involve additional costs and impact lead times. Discuss these factors extensively with the manufacturer to gain clarity on pricing and production timelines associated with your customization requests. Consider the trade-offs between customization, cost, and timeline considerations.
Review and Finalize: Carefully review the proposed customization specifications, pricing details, and any other relevant factors provided by the manufacturer. Ensure that both parties have a clear understanding of the customization scope before finalizing the order. Seek clarification on any remaining questions or concerns to avoid misunderstandings.
By following these steps, you can effectively collaborate with the manufacturer to achieve the desired customization of the TPC-TG40-27~61DCR transceiver module for your specific requirements.
.
