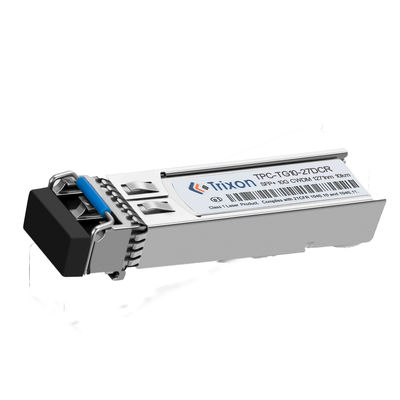

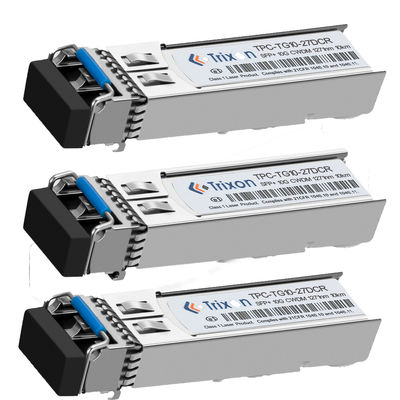

TPC-TG10-27~61DCR 10G SFP+ CWDM Transceiver Module 1271nm-1611nm 10km, 0℃ ~+70℃
Our 10G SFP+ CWDM Transceiver Module is a Small Form-Factor Pluggable Plus (SFP+) Transceiver Module that supports 10G Ethernet applications. It is designed to operate within a wide range of temperature from 0℃ to +70℃ and can support a maximum power consumption of 1W for DML and 2W for EML. It features a Duplex LC Connector Interface and utilizes CWDM DFB laser for 1271~1451nm and CWDM EML laser for 1471~1571nm. Our 10G SFP+ CWDM Transceiver Module supports high-speed data transmission and is ideal for use in various 10G Ethernet applications.
| Parameters | Specifications |
|---|---|
| Distance | 10km |
| Power consumption | 1W Maximum For DML,2W Maximum For EML |
| Fiber Type | SMF |
| Compliant | Compliant With SFF-8431 And SFF-8432 |
| Data Rate | 10.3Gb/s |
| Package | Hot Pluggable SFP+ MSA Package |
| Product Name | 10G SFP+ CWDM Transceiver Module |
| DDM/DOM | Yes |
| Temperature Range | 0℃ ~+70℃ |
| Optical Interface | Duplex LC Connector Interface |
( 10.3Gbps,10km 17.5dB High Power budget)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||||||||||||||||||||||||||||||||||||
| Transmitter | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note5 | ||||||||||||||||||||||||||||||||||||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||||||||||||||||||||||||||||||||||||
| Average Output Power | POUT | 2 | 7 | dBm | ||||||||||||||||||||||||||||||||||||||
| Extinction Ratio | ER | 3.5 | dB | |||||||||||||||||||||||||||||||||||||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||||||||||||||||||||||||||||||||||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
|
Transmitter and Dispersion Penalty |
TDP |
|
dB |
|
||||||||||||||||||||||||||||||||||||||
| Optical Return Loss Tolerance | ORLT | - | - | 12 | dB | |||||||||||||||||||||||||||||||||||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||||||||||||||||||||||||||||||||||||
| Receiver | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||||||||||||||||||||||||||||||||||||
| Sensitivity*Note4 | PIN | -15.5 | dBm | |||||||||||||||||||||||||||||||||||||||
| Receiver Overload | Overload | 0.5 | dBm | Note4 | ||||||||||||||||||||||||||||||||||||||
| Receiver Reflectance | -12 | dB | ||||||||||||||||||||||||||||||||||||||||
| LOS Assert | LOSA | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS De-Assert | LOSD | -17 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||||||||||||||||||||||||||||||||||||
( 10.3Gbps,10km 14.5dB Lower Power budget)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||||||||||||||||||||||||||||||||||||
| Transmitter | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note5 | ||||||||||||||||||||||||||||||||||||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||||||||||||||||||||||||||||||||||||
| Average Output Power | POUT | 0 | 5 | dBm | ||||||||||||||||||||||||||||||||||||||
| Extinction Ratio | ER | 3.5 | dB | |||||||||||||||||||||||||||||||||||||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||||||||||||||||||||||||||||||||||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
|
Transmitter and Dispersion Penalty |
TDP |
|
dB |
|
||||||||||||||||||||||||||||||||||||||
| Optical Return Loss Tolerance | ORLT | - | - | 12 | dB | |||||||||||||||||||||||||||||||||||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||||||||||||||||||||||||||||||||||||
| Receiver | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||||||||||||||||||||||||||||||||||||
| Sensitivity*Note4 | PIN | -15 | dBm | |||||||||||||||||||||||||||||||||||||||
| Receiver Overload | Overload | 0.5 | dBm | Note4 | ||||||||||||||||||||||||||||||||||||||
| Receiver Reflectance | -12 | dB | ||||||||||||||||||||||||||||||||||||||||
| LOS Assert | LOSA | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS De-Assert | LOSD | -17 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||||||||||||||||||||||||||||||||||||
