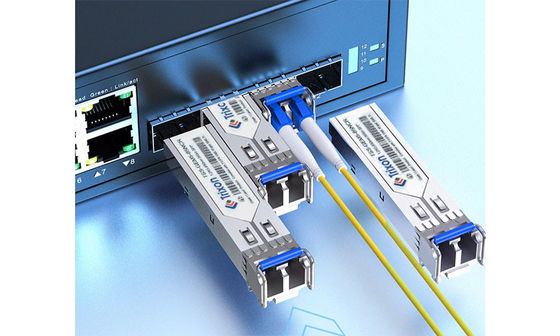

The 1.25G SFP transceiver with duplex LC connector, operating at 1310nm wavelength and reaching 10km over fiber optic cable, provides 1.25Gbps data rate, digital diagnostic monitoring, and compliance with industry standards including IEEE 802.3 for fast and reliable data transmission over short distance fiber links.
| Feature | Specification |
| Data Rate | Up to 1.25 Gbps |
| Transmission Distance | Up to 15km |
| Power Supply | Single 3.3V |
| Interface Type | TTL Logic Interface |
| Connector Interface | Duplex LC |
| Hot Pluggable | Yes |
| Compliance | MSA SFP Spec SFF-8472 |
| Network Compatibility | IEEE 802.3 and FC-PI-2 Rev 10.0 |
Technical Parameters:
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1270 | 1310 | 1355 | nm | |||
| Spectral Width*Note4 | ∆λ | 4 | nm | FP-LD | ||||
| Average Output Power | POUT | -9.5 | -3 | dBm | ||||
| Extinction Ratio | ER | 9 | dB | |||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | |||||
| Output Optical Eye | Compliant with IEEE 802.3ah-2004 | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1610 | nm | ||||
| Sensitivity*Note5 | PIN | -20 | dBm | |||||
| Receiver Overload | Overload | -3 | dBm | |||||
| Optical Return Loss | 12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -25 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
The 1.25G SFP transceiver with its 1310nm wavelength, 10km reach and 1.25Gbps capability is ideally suited for high-speed data transmission applications over short distance fiber links in data centers, local area networks, fiber access networks and network system connections where reliability, performance and compliance with industry standards are required.
Technical Assistance: Our dedicated team of technical support engineers is available to provide troubleshooting assistance and guidance for installation, configuration, and maintenance, ensuring optimal performance of our products.
Service Plans: We offer optional service plans with different response times, remote diagnostics capabilities, and repair services to minimize downtime and meet your specific needs.
Warranty Coverage: Our standard warranty provides 1-year coverage for defects and non-compliance with specifications. Additionally, we offer extended warranty options of up to 5 years for added peace of mind.
Comprehensive Documentation: We provide complete documentation, including user manuals, technical specifications, application notes, articles, and white papers, to help you utilize our products effectively.
Training Programs: We offer optional online or onsite training sessions conducted by experienced instructors, covering installation, usage, and management, to ensure that you have the necessary skills to maximize the benefits of our products.
Updates and Enhancements: We regularly provide firmware updates and patches to introduce new features, enhancements, and bug fixes. Detailed release notes accompany these updates to keep you informed.
Compliance Assistance: We offer support and guidance to help you navigate regulatory compliance requirements, including RoHS, WEEE, and other applicable standards.
Technical Consultation: Our team of experts is available to provide technical advice and consultation on integration, migration, capacity planning, and other aspects to optimize the effectiveness of our solutions within your specific environment.
Customer Support: We prioritize timely and responsive customer support through phone, email, or chat channels. Our team is ready to assist you with troubleshooting issues and answering any queries you may have.
The packaging and transportation precautions for this SFP module are briefly described as follows:
The core is to ensure module safety, ensure fast delivery, and provide customized packaging services.
Referece Datasheet file code: DS040040
