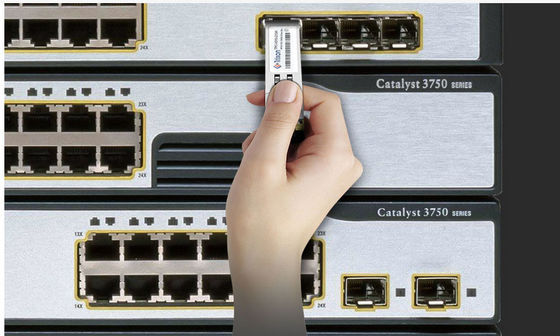

This SFP Transceiver Module is designed to meet the increasing demand for high capacity and high speed data transmission. It offers a high-performance, low-power 25G data link over a single mode fiber (SMF) with a transmission distance up to 15km. It adopts LC connector interface and supports hot-pluggable operation, making it easy for users to install and maintain. It is designed with a single 3.3V power supply and TTL logic interface, and is compliant to the SFP MSA standard and IEEE802.3. Furthermore, it is equipped with digital diagnostic monitoring interface (DDMI), which allows real-time monitoring of the module's operating parameters.
| Property | Value |
|---|---|
| Power Supply | Single 3.3V Power Supply And TTL Logic Interface |
| DDMI | YES |
| Data Rate | Operating Data Rate At 155.52Mbps |
| Wavelength | 1310nm/1550nm |
| Product Name | 1.25G STM-1/OC-3 Bi-directional SFP Transceiver |
| Pluggable | Hot Pluggable |
| Distance | 40km |
| Temperature Range | -40℃ ~+85℃ |
| Connector Type | Single LC Connector Interface |
| Fiber Type | SMF |
(1310nm/1550nm ,FP/DFB and PIN, 40km)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1280 | 1310 | 1340 | nm | 1310nmTX/1550nmRX | |
| 1530 | 1550 | 1570 | nm | 1550nmTX/1310nmRX | |||
| Spectral Width*Note4 | ∆λ | 4 | nm | 1310nm FP-LD | |||
| 1 | nm | 1550nm DFB-LD | |||||
| Average Output Power | POUT | -5 | 0 | dBm | |||
| Extinction Ratio | ER | 10 | dB | ||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | ||||
| Output Optical Eye | Compliant with eye mask Telcordia GR-253-CORE and ITU-T G.957 | ||||||
| Receiver | |||||||
| Centre Wavelength | λc | 1510 | 1600 | nm | 1310nmTX/1550nmRX | ||
| 1280 | 1340 | nm | 1550nmTX/1310nmRX | ||||
| Sensitivity*Note5 | PIN | -34 | dBm | ||||
| Receiver Overload | Overload | -10 | dBm | ||||
| Optical Return Loss | 12 | dB | |||||
| LOS Assert | LOSA | -45 | dBm | ||||
| LOS De-Assert | LOSD | -35 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
Trixon TSB-0340-35DIR SFP Transciver Module is a perfect choice for long-distance communication. Its single LC connector interface, hot pluggable design and DDMI (Digital Diagnostic Monitoring Interface) support make it an ideal choice for single-mode networks. With its capability of LR (long reach) transmission up to 15km, it is suitable for applications that demand high data rate transmission, such as 155.52Mbps. All these features make it an ideal solution for many network scenarios, such as enterprise data centers, campus networks, metropolitan area networks and other telecom networks.
Transmission Range: The standard specification for the TSB-0340-35DIR indicates a transmission range of 40 kilometers. If you need a different transmission range, make sure to clearly communicate your desired distance to the manufacturer for customization.
Wavelengths: The standard specification for the transceiver states that it operates at a wavelength of 1310 nanometers for transmitting and 1550 nanometers for receiving. If you require different wavelengths or specific wavelengths within that range, be sure to specify your customization requirements to the manufacturer.
Temperature Limits: The standard temperature limits for the TSB-0340-35DIR are -40°C to +85°C. If you have specific temperature range requirements, clearly communicate them to the manufacturer for customization.
Fiber Type: The transceiver is designed for use with Single Mode Fiber (SMF). If you have any specific requirements regarding fiber type or compatibility, make sure to convey those requirements to the manufacturer.
Additional Requirements: If there are any other customization needs, such as specific power consumption limits, connector types, or required certifications, clearly communicate those requirements to the manufacturer.
We offer technical support and services for our SFP Transceiver Module products. Our team of highly trained technical staff is available to answer any questions you may have about the product. We also provide installation and maintenance services, as well as troubleshooting and repair services. We strive to provide the best customer experience possible. If you have any questions or concerns, please don't hesitate to reach out to us.
Packaging and Shipping for SFP Transciver Module:
Reference Datasheet File code: DS100035
