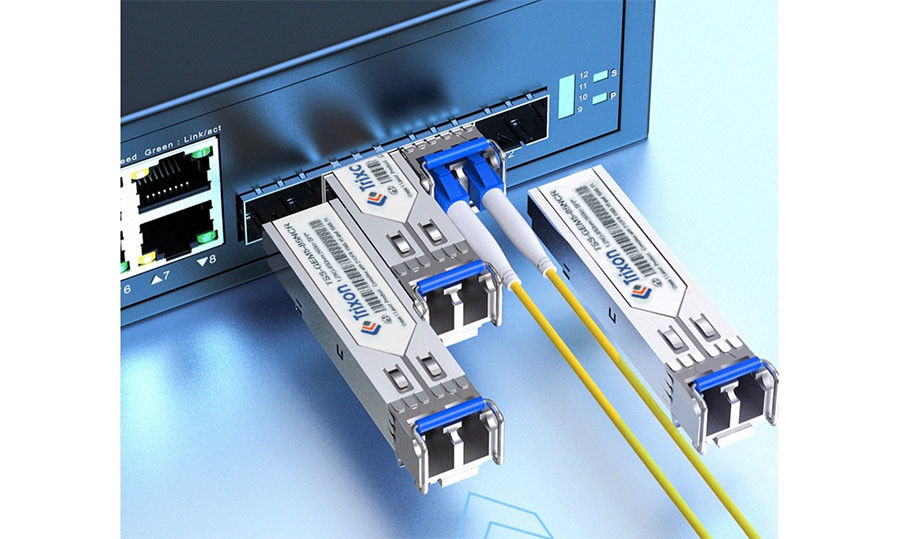

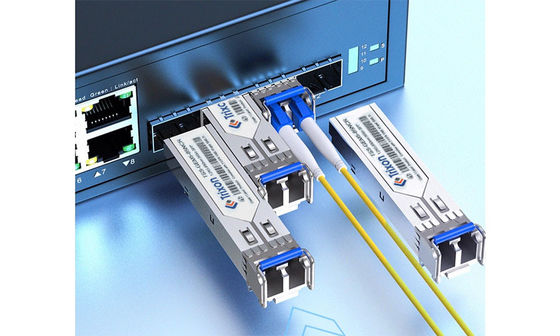

TPC-TG10-27~61DCR 10G SFP+ CWDM Transceiver Module 1271nm-1611nm 10km, 0℃ ~+70℃
Our 10G SFP+ CWDM Transceiver Module is a Small Form-Factor Pluggable Plus (SFP+) Transceiver Module that supports 10G Ethernet applications. It is designed to operate within a wide range of temperature from 0℃ to +70℃ and can support a maximum power consumption of 1W for DML and 2W for EML. It features a Duplex LC Connector Interface and utilizes CWDM DFB laser for 1271~1451nm and CWDM EML laser for 1471~1571nm. Our 10G SFP+ CWDM Transceiver Module supports high-speed data transmission and is ideal for use in various 10G Ethernet applications.
| Parameters | Specifications |
|---|---|
| Distance | 10km |
| Power consumption | 1W Maximum For DML,2W Maximum For EML |
| Fiber Type | SMF |
| Compliant | Compliant With SFF-8431 And SFF-8432 |
| Data Rate | 10.3Gb/s |
| Package | Hot Pluggable SFP+ MSA Package |
| Product Name | 10G SFP+ CWDM Transceiver Module |
| DDM/DOM | Yes |
| Temperature Range | 0℃ ~+70℃ |
| Optical Interface | Duplex LC Connector Interface |
( 10.3Gbps,10km 14.5dB Lower Power budget)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||||||||||||||||||||||||||||||||||||
| Transmitter | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note5 | ||||||||||||||||||||||||||||||||||||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||||||||||||||||||||||||||||||||||||
| Average Output Power | POUT | 0 | 5 | dBm | ||||||||||||||||||||||||||||||||||||||
| Extinction Ratio | ER | 3.5 | dB | |||||||||||||||||||||||||||||||||||||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||||||||||||||||||||||||||||||||||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
|
Transmitter and Dispersion Penalty |
TDP |
|
dB |
|
||||||||||||||||||||||||||||||||||||||
| Optical Return Loss Tolerance | ORLT | - | - | 12 | dB | |||||||||||||||||||||||||||||||||||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||||||||||||||||||||||||||||||||||||
| Receiver | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||||||||||||||||||||||||||||||||||||
| Sensitivity*Note4 | PIN | -15 | dBm | |||||||||||||||||||||||||||||||||||||||
| Receiver Overload | Overload | 0.5 | dBm | Note4 | ||||||||||||||||||||||||||||||||||||||
| Receiver Reflectance | -12 | dB | ||||||||||||||||||||||||||||||||||||||||
| LOS Assert | LOSA | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS De-Assert | LOSD | -17 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||||||||||||||||||||||||||||||||||||
The module enables efficient connectivity and supports bandwidth-intensive applications within data center infrastructure. It can be utilized in data center environments for high-speed data transmission between switches, routers, and servers.
In metropolitan area networks (MANs), the module provides high-bandwidth connectivity between different sites across metropolitan areas. It ensures reliable and high-speed communication in urban networking environments.
For telecommunications networks, the module facilitates high-speed data transmission over medium distances. It supports efficient communication between network nodes and caters to the increasing bandwidth demands of modern telecommunications infrastructure.
Within enterprise networks, the module is employed for interconnecting network segments, connecting remote offices, or establishing high-speed links between different locations. It ensures efficient and reliable communication within the enterprise network infrastructure.
In wireless backhaul applications, the module establishes high-speed connections between wireless base stations. It supports the transmission of data and voice traffic over medium distances, facilitating the expansion and optimization of wireless network coverage.
Contact the manufacturer: Reach out to the manufacturer or supplier of the TPC-TG10-27~61DCR transceiver module and inquire about their customization capabilities. Provide them with detailed information about your specific requirements.
Specify your customization requirements: Clearly communicate your customization needs to the manufacturer. This may include desired specifications, performance parameters, wavelength selection, temperature range adjustment, power consumption optimization, or any other specific features you require. The more detailed and specific you can be, the better the manufacturer can understand your needs.
Consult with the manufacturer: Engage in discussions with the manufacturer to explore the feasibility of your customization requests. They will be able to provide guidance, technical expertise, and recommendations based on their capabilities and experience. They can also advise you on any limitations or trade-offs associated with the customization.
Evaluate cost and lead time: Customization may involve additional costs and could impact lead times. Discuss these factors with the manufacturer to understand the pricing and production timeline associated with the customization. Consider the trade-offs between customization, cost, and time considerations.
Review and finalize: Once you have discussed and agreed upon the customization details, review the proposed specifications, pricing, and any other relevant factors. Ensure that both parties have a clear understanding of the customization scope before finalizing the order.
We understand the importance of providing comprehensive technical support and service for our SFP+ Transceiver Module. Our dedicated team of technical experts is here to assist you every step of the way.
Whether you need assistance with product installation and setup, troubleshooting and diagnostics, data transfer and network configuration, firmware and software updates, or general technical advice and best practices, we've got you covered. Our team is equipped with the knowledge and expertise to address your queries and ensure that you have a seamless experience with our SFP+ Transceiver Module.
We prioritize staying up-to-date with the latest information and advancements in the field, so you can rely on us for accurate and relevant product information. We are committed to providing prompt and effective support, helping you resolve any issues and optimize the performance of your SFP+ Transceiver Module.
Rest assured that we are here to assist you and provide the best possible technical support and service. Feel free to reach out to us if you have any questions or require assistance. Your satisfaction is our top priority.
The SFP+ Transceiver Module is securely packaged to ensure it arrives safely and undamaged. The module is placed in a protective foam shell, surrounded by bubble wrap and placed in a strong cardboard box.
We ship our SFP+ Transceiver Module via FedEx or USPS with tracking information provided. We also offer express shipping for customers who need their order faster.
Reference Datasheet File code: DS210002
