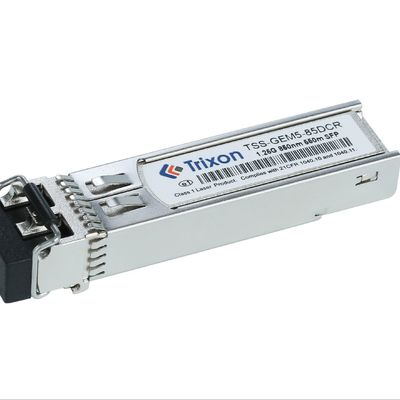

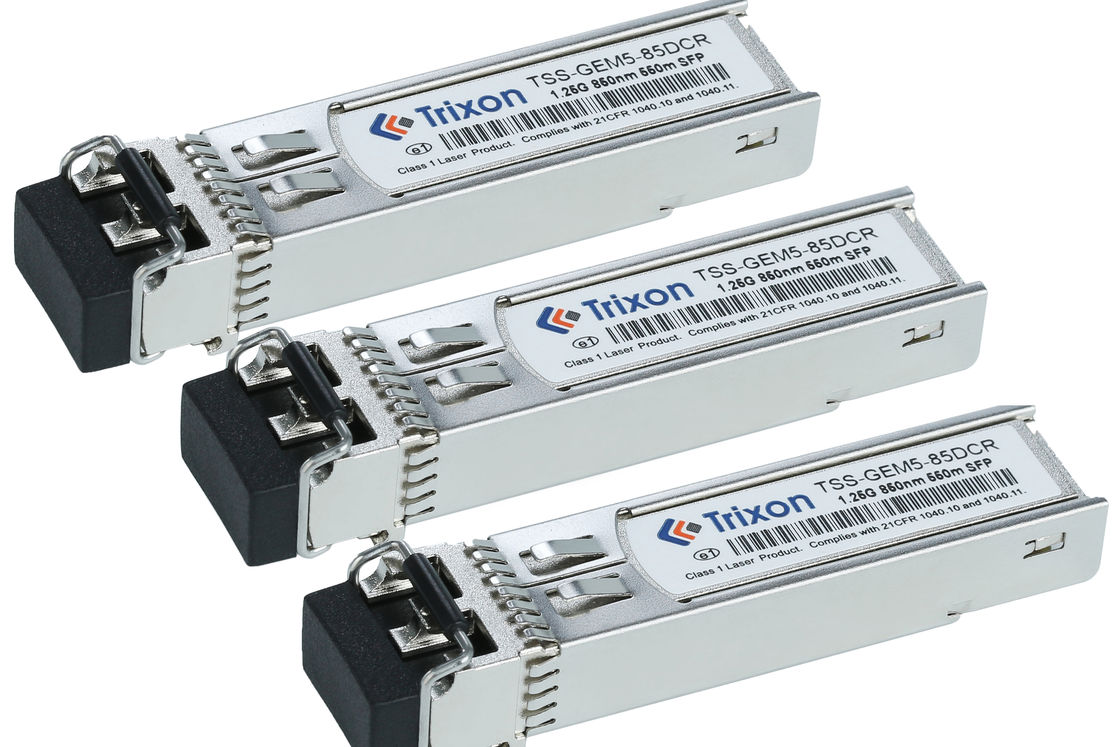

TSS-GEM5-85DIR 1.25G SR 850nm distance 550m SFP Transceiver Module DDM -40℃ ~+85℃
TSS-GEM5-85DIR is a high-performance SFP fiber optic transceiver module, used for network applications with a transmission data rate of 1.25G. It uses 850nm wavelength and is suitable for short-distance transmission, up to 550 meters.
The module uses a small SFP package for easy installation and replacement. It has a hot-swappable function and can be plugged and unplugged at any time while the network is running without interrupting the network connection.
TSS-GEM5-85DIR is a multi-mode optical fiber transmission module suitable for short-distance data transmission needs. It is commonly used in data centers, enterprise networks, and other applications that require fast and reliable data transmission.
The module operates at 850nm wavelength, providing reliable fiber transmission performance. It can transmit data up to 550 meters and is suitable for medium-distance network connections.
The TSS-GEM5-85DIR fiber optic transceiver module is a high-quality, reliable solution suitable for various 1.25G network applications. Whether in data centers, enterprise networks or other short-distance transmission scenarios, it provides excellent performance and reliability.
| Warranty | 3 Years |
| Data Rate | 1.25Gbps |
| Product Name | SFP Transceiver Module |
| Power Supply | 3.3V |
| Connector Type | LC |
| Distance | 550m |
| DDMI | YES |
| Temperature Range | -40℃ ~+85℃ |
| Wavelength | 850nm |
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 830 | 850 | 870 | nm | |||
| Spectral Width*Note4 | ∆λ | 0.85 | nm | VSCEL-LD | ||||
| Average Output Power | POUT | -9.5 | -3 | dBm | ||||
| Extinction Ratio | ER | 9 | dB | |||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | |||||
| Output Optical Eye | Compliant with IEEE 802.3ah-2004 | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 830 | 870 | nm | ||||
| Sensitivity*Note5 | PIN | -17 | dBm | |||||
| Receiver Overload | Overload | 0 | dBm | |||||
| Optical Return Loss | 12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -25 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
Data Center Networks: In data centers, the TSS-GEM5-85DIR module can be used to connect key components such as servers, network switches, and storage devices. It provides fast and reliable data transmission to support high-speed communication needs within the data center.
Enterprise Networks: The TSS-GEM5-85DCR module can be used for local area network (LAN) or wide area network (WAN) connections in enterprise networks. It can connect devices between different floors, offices or branches and supports high-speed data transmission and communication.
Video surveillance systems: In video surveillance systems, the TSS-GEM5-85DIR module can be used to connect cameras, monitors, and video recording equipment. It can transmit high-quality video signals and support real-time monitoring and recording functions.
Wireless network infrastructure: The TSS-GEM5-85DIR module can be used in wireless network infrastructure such as Wi-Fi access points and base stations. It provides stable data transmission and supports wireless network expansion and coverage.
Telecom operator network: In the network of telecom operators, the TSS-GEM5-85DIR module can be used for the connection between optical fiber transmission equipment and optical fiber splitters. It supports high-speed data transmission and signal transmission, meeting telecom operators' requirements for network performance and reliability.
Our customized module services offer you groundbreaking opportunities. By working closely with our engineers, you can create a custom design based on your unique needs, ensuring the module exactly meets your technical specifications and performance requirements.
We have advanced technology and advanced manufacturing equipment to flexibly respond to various challenges. Our team will work with you to understand your goals and provide the best customized solution to meet your budget and time requirements.
Not only that, we are also committed to providing customized modules of high quality and reliability. Our products undergo rigorous testing and quality control to ensure they can operate stably in a variety of environmental conditions and provide superior performance.
Working with us, you gain unique competitive advantages and market differentiation. Whether you are in data centers, telecommunications networks, industrial automation or other fields, our customized modules will bring you outstanding performance and reliability.
We offer a complete range of technical support and service for our SFP Transciver Module products. Our team of experienced engineers are on hand to provide detailed advice and guidance related to installation and set up, troubleshooting, and maintenance of the SFP Transciver Module.
We also offer a range of customer service options, including telephone support, email support, and online chat support, to help ensure that your product is up and running as quickly as possible.
Our team of technicians are also available to provide on-site assistance should you need it, and can be contacted directly by phone or email.
If you have any questions or queries about our SFP Transciver Module product, please don't hesitate to get in touch.
SFP Transceiver Module Packaging and Shipping:
The SFP Transceiver Module will be wrapped in a bubble wrap and placed in a cardboard box for shipping. The box will be securely sealed with tape. The package will be labeled with the product name and barcode. The package will be transported using standard shipping services.
Reference Datasheet file code:DS040040 (1.25G SFP)
