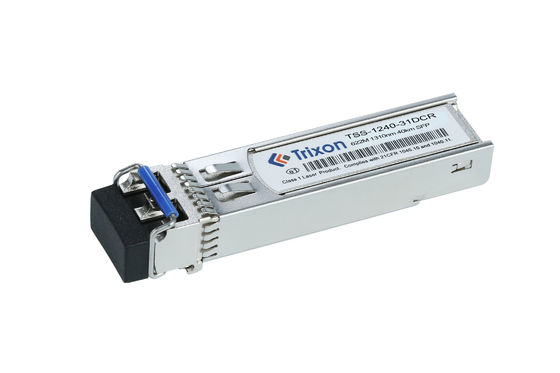

The SDH STM-4/SONET OC-12 SFP Transceiver is a hot-pluggable optical transceiver for 40km optical communication. It is designed to support 1.25Gbps data rate and 10Km transmission distance. The transceiver is with single 3.3V power supply and TTL logic interface. It is compliant with SFP MSA and SFF-8472 with duplex LC receptacle. The transceiver is with 1310nm-FP laser and is suitable for SMF. It is designed to work at temperature range from -5℃ to +70℃.
| Parameter | Value |
|---|---|
| Product Name | SDH STM-4/SONET OC-12 SFP Transceiver |
| DDMI | YES |
| Distance | 40km |
| Power Supply | Single 3.3V Power Supply And TTL Logic Interface |
| Connector Type | Duplex LC Connector Interface |
| Compliant | Compliant With MSA SFP Specification |
| Fiber Type | SMF |
| Laser | 1310nm-FP |
| Pluggable | Hot Pluggable |
| Data Rate | Operating Data Rate Up To 622.08Mbps |
( 1310nm DFB and PIN, 40Km)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1280 | 1310 | 1340 | nm | |||
| Spectral Width*Note4 | ∆λ | 1 | nm | DFB-LD | ||||
| Average Output Power | POUT | -3 | +2 | dBm | ||||
| Extinction Ratio | ER | 9 | dB | |||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | |||||
| Output Optical Eye | Compliant with IEEE 802.3ah-2004 | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1200 | 1650 | nm | ||||
| Sensitivity*Note5 | PIN | -25 | dBm | |||||
| Receiver Overload | Overload | -3 | dBm | |||||
| Optical Return Loss | 12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -26 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
