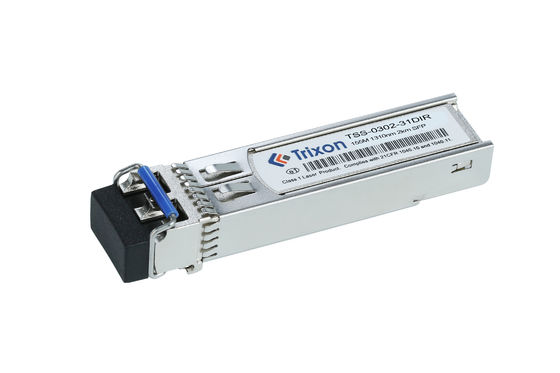

The SFP Transceiver Module is a high-performance, cost-effective, and low-power transceiver module designed for use in FTTx and other fiber-optic applications. With a maximum operating distance of 2km and a 1310nm-FP laser, this transceiver module offers up to 155.52 Mbps of data rate on single-mode fiber (SMF) with digital diagnostics monitoring interface (DDMI) support. The module is designed to operate over a wide temperature range of -40℃ ~+85℃ and a wide operating voltage range of 0 to 70°V.
| Parameter | Value |
|---|---|
| Compliant | Compatible With SFF-8472 |
| Temperature Range | -40℃ ~+85℃ |
| Laser | 1310nm-FP |
| Distance | 2km |
| DDMI | YES |
| Power Supply | Single 3.3V Power Supply And TTL Logic Interface |
| Product Name | SDH STM-1/SONET OC-3 SFP Transceiver |
| Connector Type | Duplex LC Connector Interface |
| Pluggable | Hot Pluggable |
| Data Rate | Operating Data Rate Up To 155.52 Mbps |
(1310nm FP and PIN, 2km)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1280 | 1310 | 1340 | nm | ||
| Spectral Width*Note4 | ∆λ | 4 | nm | FP-LD | |||
| Average Output Power | POUT | -20 | -15 | dBm | |||
| Extinction Ratio | ER | 8.2 | dB | ||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | ||||
| Output Optical Eye | Compliant with eye mask Telcordia GR-253-CORE and ITU-T G.957 | ||||||
| Receiver | |||||||
| Centre Wavelength | λc | 1200 | 1650 | nm | |||
| Sensitivity*Note5 | PIN | -28 | dBm | ||||
| Receiver Overload | Overload | -8 | dBm | ||||
| Optical Return Loss | 12 | dB | |||||
| LOS Assert | LOSA | -45 | dBm | ||||
| LOS De-Assert | LOSD | -35 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
Telecom operator network: This optical module transmitter is suitable for telecom operator networks and is used for the transmission of SDH STM-1 and SONET OC-3 standards. It can transmit high-speed data and communication signals in telecommunications networks, ensuring reliable signal transmission and network connections.
Optical fiber access network: In the optical fiber access network, the optical module transmitter can be used to transmit optical fiber signals to user terminals to achieve fast broadband access services.
Enterprise network connection: This optical module transmitter is suitable for connection needs in enterprise networks and can be used to connect network equipment between different office buildings and departments to achieve high-speed and stable data transmission.
Data center interconnection: In a data center environment, this optical module transmitter can be used to interconnect different devices and networks, supporting high-speed data transmission and communication between data centers.
Medical image transmission: This optical module transmitter can be used for image transmission applications in the medical field, such as transmitting medical images and data from imaging equipment to workstations or storage devices.
Transmission distance: Based on your actual needs, you can discuss with the manufacturer or supplier whether the transmission distance can be adjusted. If a longer transmission distance or a shorter transmission distance is required, the manufacturer may be able to provide a customized solution accordingly.
Wavelength: This optical module transmitter supports bidirectional transmission of 1550nm and 1490nm. If you require a different combination of wavelengths, you can discuss with the manufacturer whether a custom wavelength configuration can be provided.
Operating temperature range: The operating temperature range of this optical module transmitter is -40℃ ~ +85℃. If your application requires a wider or narrower operating temperature range, you can discuss with the manufacturer whether custom adjustments are possible.
Functional requirements: This optical module transmitter supports DDMI function and can provide digital diagnosis and monitoring interfaces. If you have other specific functional requirements, such as additional diagnostic capabilities or interface requirements, you can discuss with the manufacturer whether customization is possible.
