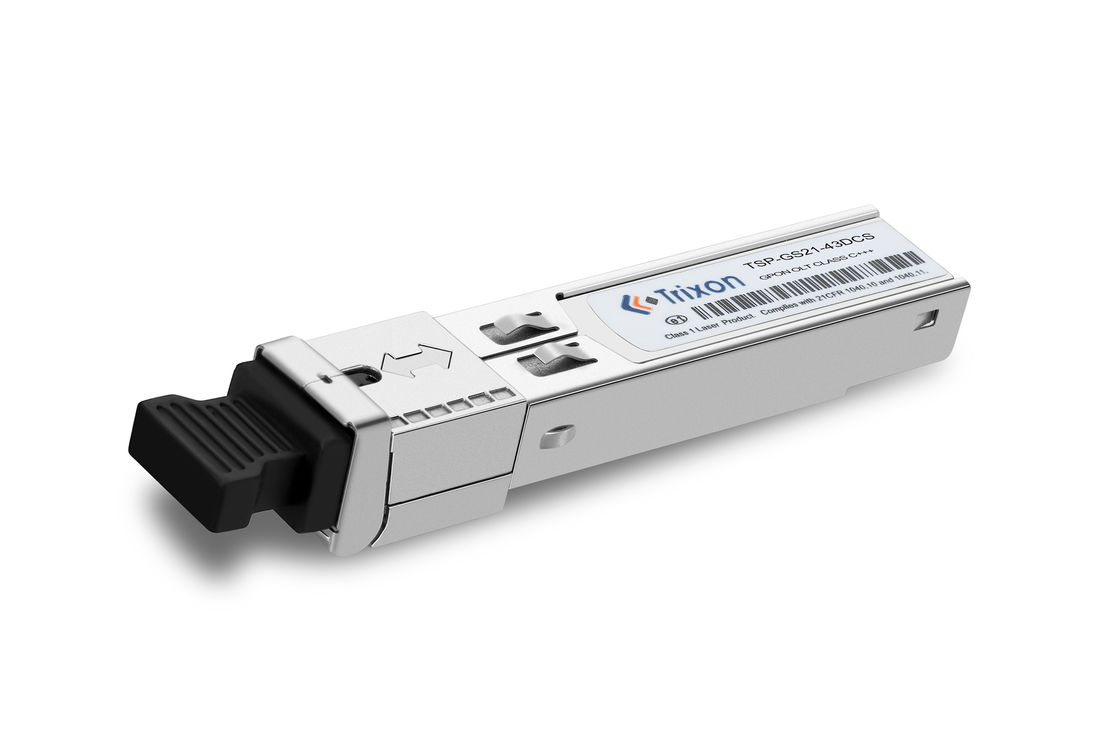

TSP-GS21-43DCS GPON OLT Class C+++ support 20km Transmission Distance TX 2.488Gbps RX 1.244Gbps 0℃~+70℃ SC/UPC
PON Transceiver is a high-performance, single-mode GPON OLT C++ transceiver module with Class C++ optical components and a single SC/UPC connector interface. It offers an operating temperature range of 0℃ to +70℃ and provides precise digital burst RSSI function to monitor the input optical power level. It is designed to work with the GPON OLT C++ systems and provide reliable, high-speed connections with low latency. With its superior performance and reliability, the PON Transceiver offers an ideal solution for a wide variety of applications.
| Parameter | Value |
|---|---|
| Optical Components | DFB |
| Data Rate | TX 2.488Gbps RX 1.244Gbps |
| Application | Class C+++ |
| Wavelength | 1490nm DFB-LD Transmitter And 1310nm Burst-mode APD-TIA Receiver |
| Connector Type | Single SC/UPC Connector Interface |
| Power Supply | Single 3.3V Power Supply And TTL Logic Interface |
| Operating Temperature | 0℃~+70℃ |
| Interface Type | SC/UPC |
| Performance | Digital Burst RSSI Function To Monitor The Input Optical Power Level |
| Transmission Distance | Distance Up To 20km |
| Optical Interface | SC/UPC |
| Bail color | Blue |
Performance Specifications – Optical
(CLASS C+++)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| 9μm Core Diameter SMF | 20 | Km |
| Data Rate |
TX 2.488 RX 1.244 |
Gbps | |||
| Transmitter | |||||
| Centre Wavelength | λC | 1480 | 1490 | 1500 | nm |
| Spectral Width (-20dB) | Δλ | 1 | nm | ||
| Average Output Power | AOP | +7 | +10 | dBm | |
| Extinction Ratio | ER | 8.2 | dB | ||
| Average Power of OFF Transmitter | -39 | dBm | |||
| Transmitter Dispersion Penalty | TDP | 1 | dB | ||
| Output Optical Eye | Compliant with ITU-T G.984.2 | ||||
| Receiver | |||||
| Centre Wavelength | 1260 | 1310 | 1360 | nm | |
| Sensitivity*note3 | SEN | -33 | dBm | ||
| Receiver Overload | SAT | -12 | dBm | ||
|
Receiver Burst Mode Dynamic Range |
15 | dB | |||
| Optical Return Loss | -20 | dB | |||
| LOS De-Assert | -33 | dBm | |||
| LOS Assert | -45 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB | ||
Note3: Minimum average optical power measured at the BER less than 1E-10, back to back. The measure pattern is PRBS 223-1+72CID@1244Mbps.
Trixon TSP-GS21-43DCS PON Transceiver is designed and manufactured in China to meet the highest standards of performance. It features a single SC/UPC connector interface, making it ideal for fiber-optic networks. It is compatible with the GPON OLT C++ standard, providing exceptional performance in terms of digital burst RSSI function to monitor the input optical power level. This transceiver is designed to meet the Class C+++ requirements of the industry, and is ideal for applications where high-speed data transmission is required.
The Trixon TSP-GS21-43DCS PON Transceiver is designed to provide a reliable and stable connection, making it perfect for GPON OLT C++ applications. It has a digital burst RSSI function that allows it to monitor the input optical power level, ensuring the highest level of performance. This transceiver also features a single SC/UPC connector interface, which is easy to install and maintain. This makes it ideal for fiber-optic networks.
The Trixon TSP-GS21-43DCS PON Transceiver is designed to provide maximum performance in terms of data transmission. It is designed to meet the Class C+++ requirements of the industry, making it perfect for applications where high-speed data transmission is required. It also features a digital burst RSSI function to monitor the input optical power level, ensuring the highest level of performance.
The Trixon TSP-GS21-43DCS PON Transceiver is the perfect solution for fiber-optic networks. It is compatible with the GPON OLT C++ standard, making it reliable and stable. It also features a single SC/UPC connector interface, which is easy to install and maintain. In addition, it has a digital burst RSSI function to monitor the input optical power level, ensuring the highest level of performance. This makes it ideal for applications where high-speed data transmission is required.
We offer a customized service for Trixon PON Transceiver, Model Number: TSP-GS21-43DCS. It is manufactured in China and features a transmission distance of up to 20km. It operates at 1490nm DFB-LD transmitter and 1310nm Burst-mode APD-TIA receiver with single mode fiber. The optical components are DFB with single 3.3V power supply and TTL logic interface.
The PON Transceiver supports TX 2.488Gbps and RX 1.244Gbps with Class C++. It is designed for various applications, such as FTTH/FTTB/FTTC, Metro Ethernet, and CATV. The transceiver's excellent quality and performance make it an ideal choice for PON networks.
If you are interested in purchasing this PON Transceiver, please contact us for more information. We are happy to provide additional customization services to meet your specific requirements.
Our PON Transceiver products come with a full range of technical support and services. We offer free online troubleshooting, phone support, and email support. We also provide a wide range of technical documents and resources to help you get the most out of your PON Transceiver products. Our team of technical experts is available via email or phone to answer any questions and provide help with installation, configuration, and troubleshooting.
PON transceivers are delicate and require special care and protection during shipping. To ensure that PON transceivers arrive at the destination in perfect condition, the following steps should be taken when packaging and shipping them:
Reference Datasheet File code: DS900008
