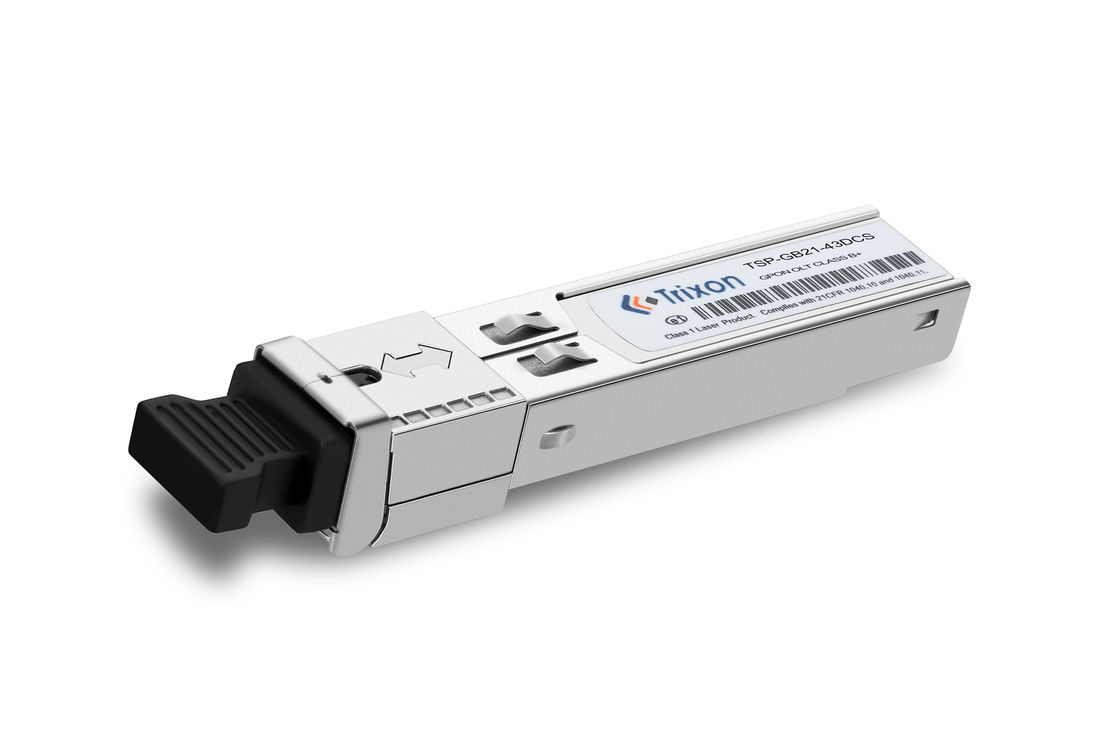

GPON TSP-GB21-43DCS OLT Class B+TX 2.488Gbps RX 1.244Gbps 0℃~+70℃ SC/UPC for Single Mode Fiber Type
The PON Transceiver is an advanced optical transceiver that offer high performance, reliability and cost-effectiveness. It features a digital burst RSSI function to monitor the input optical power level, a single SC/UPC connector interface, a transmission distance up to 20km, an operating temperature from 0℃ to +70℃, and a Class B+ application. Equipped with a bail color blue, a class C++ optical interface SC/UPC, and an optical power monitor, the PON Transceiver provides a reliable and cost-efficient solution for fiberoptic networks.
| Performance | Description |
|---|---|
| Digital Burst RSSI Function To Monitor The Input Optical Power Level | GPON OLT C++, Optical Interface SC/UPC, Optical Interface SC/UPC |
| Operating Temperature | 0℃~+70℃ |
| Transmission Distance | Distance Up To 20km |
| Optical Components | DFB |
| Connector Type | Single SC/UPC Connector Interface |
| Data Rate | TX 2.488Gbps RX 1.244Gbps |
| Fiber Type | Single Mode |
| Wavelength | 1490nm DFB-LD Transmitter And 1310nm Burst-mode APD-TIA Receiver |
| Interface Type | SC/UPC |
| Power Supply | Single 3.3V Power Supply And TTL Logic Interface |
Performance Specifications – Optical
(CLASS B+)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| 9μm Core Diameter SMF | 20 | Km | |||
| Data Rate |
TX 2.488 RX 1.244 |
Gbps | |||
| Transmitter | |||||
| Centre Wavelength | λC | 1480 | 1490 | 1500 | nm |
| Spectral Width (-20dB) | Δλ | 1 | nm | ||
| Average Output Power | AOP | +1.5 | +5 | dBm | |
| Extinction Ratio | ER | 8.2 | dB | ||
| Average Power of OFF Transmitter | -39 | dBm | |||
| Transmitter Dispersion Penalty | TDP | 1 | dB | ||
| Output Optical Eye | Compliant with ITU-T G.984.2 | ||||
| Receiver | |||||
| Centre Wavelength | 1260 | 1310 | 1360 | nm | |
| Sensitivity*note3 | SEN | -28 | dBm | ||
| Receiver Overload | SAT | -8 | dBm | ||
| Optical Return Loss | -20 | dB | |||
| LOS De-Assert | -32 | dBm | |||
| LOS Assert | -45 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB | ||
TSP-GB21-43DCS GPON OLT equipment is usually deployed in the central office or data center of a network service provider and is used for core control and management of optical fiber access networks.
Due to the high-speed transmission rates it supports and the long transmission distance of optical fiber, the device is suitable for providing high-speed broadband access, IPTV, video on demand, VoIP telephony and other IP-based services.
It can be used for broadband access of enterprise networks and residential networks, as well as large-scale network deployment such as campus networks and metropolitan area networks.
TSP-GB21-43DCS is suitable for small and medium-sized GPON network deployment. It can connect multiple ONU (Optical Network Unit) devices to provide high-speed optical fiber access services for multiple users.
Configuration: GPON OLT devices typically offer a range of configuration options, including network settings, QoS (Quality of Service) parameters, VLAN (Virtual Local Area Network) settings, and security features. You can customize these settings based on your specific network requirements.
Management and Monitoring: GPON OLT devices often provide management interfaces, such as a web-based graphical user interface (GUI) or a command-line interface (CLI). These interfaces allow you to customize and manage various aspects of the device, such as user accounts, network monitoring, and firmware updates.
Integration with Network Infrastructure: GPON OLT devices are typically part of a larger network infrastructure. You can customize the integration of the OLT device with other network components, such as routers, switches, and servers, to ensure seamless connectivity and optimal performance.
Service Provisioning: GPON OLT devices support the provisioning of different services, such as internet access, IPTV, VoIP, and more. You can customize the configuration and allocation of these services based on the specific needs of your network and subscribers.
Our technical support team is committed to providing PON Transceiver customers with the highest level of service and support. We offer a range of services tailored to meet your unique needs and requirements, including:
Installation and Setup: Our team of qualified technicians can assist you with installing and setting up your PON Transceiver device.
Technical Support: Our team is available to answer any questions you may have about your PON Transceiver device and provide troubleshooting assistance.
Product Upgrades: Our team can provide assistance with upgrading your PON Transceiver device to the latest version.
Warranty Support: We offer a one-year limited warranty on all PON Transceiver devices, and our team is available to assist with any warranty-related issues.
For more information about our technical support and service offerings, please contact us.
PON Transceiver products will be packaged in accordance with industry standards. They will be securely wrapped and packaged in shock-proof containers with foam inserts to protect them during shipping. The packages will be correctly labelled in accordance with international shipping regulations. All shipments will be tracked and insured for the full value of the product.
Reference Datasheet File code: DS900008
