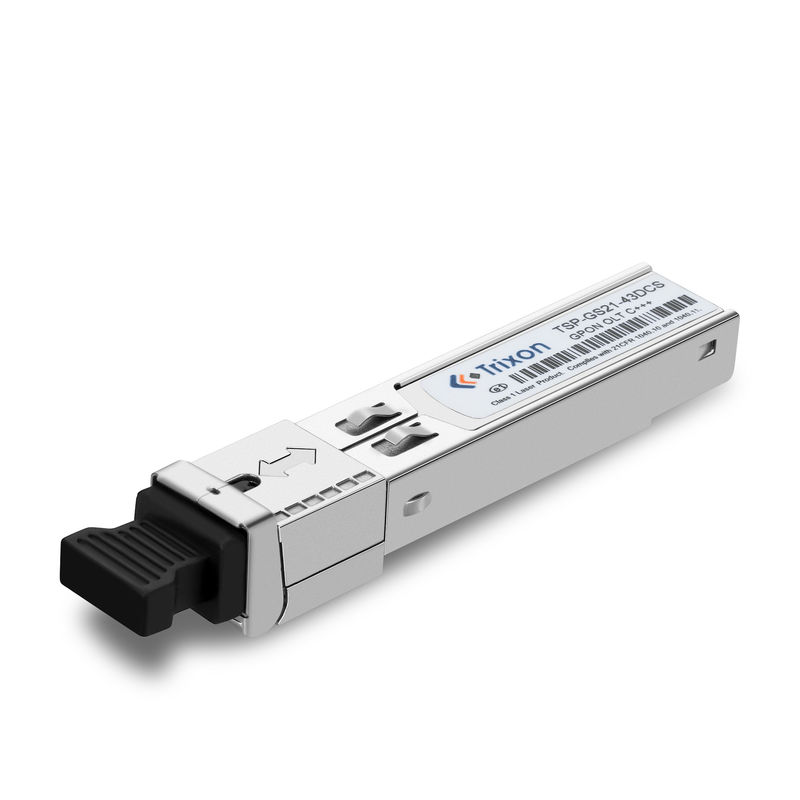

TSP-GQ21-43DCS GPON OLT Class C+ with 20km Transmission Distance - PON Transceiver Offered SC/UPC 0℃~+70℃
PON Transceiver is an optical transceiver designed for Passive Optical Network (PON) applications. It meets the requirements of the Class C+ protocol, and provides a maximum data rate of 2.488Gbps for transmitting and 1.244Gbps for receiving. It is equipped with a single 3.3V power supply and TTL Logic Interface, and is suitable for single mode fiber. The operating temperature range is from 0℃ to +70℃, which provides good reliability and stability.
| Performance | Digital Burst RSSI Function To Monitor The Input Optical Power Level |
|---|---|
| Fiber Type | Single Mode |
| Wavelength | 1490nm DFB-LD Transmitter And 1310nm Burst-mode APD-TIA Receiver |
| Data Rate | TX 2.488Gbps RX 1.244Gbps |
| Connector Type | Single SC/UPC Connector Interface |
| Application | Class C+ |
| Product Name | PON Transceiver |
| Operating Temperature | 0℃~+70℃ |
| Transmission Distance | Distance Up To 20km |
| Power Supply | Single 3.3V Power Supply And TTL Logic Interface |
Performance Specifications – Optical
(CLASS C+)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| 9μm Core Diameter SMF | 20 | Km | |||
| Data Rate |
TX 2.488 RX 1.244 |
Gbps | |||
| Transmitter | |||||
| Centre Wavelength | λC | 1480 | 1490 | 1500 | nm |
| Spectral Width (-20dB) | Δλ | 1 | nm | ||
| Average Output Power | AOP | +3 | +7 | dBm | |
| Extinction Ratio | ER | 8.2 | dB | ||
| Average Power of OFF Transmitter | -39 | dBm | |||
| Transmitter Dispersion Penalty | TDP | 1 | dB | ||
| Output Optical Eye | Compliant with ITU-T G.984.2 | ||||
| Centre Wavelength | 1260 | 1310 | 1360 | nm | |
| Sensitivity*note3 | SEN | -30 | dBm | ||
| Receiver Overload | SAT | -12 | dBm | ||
|
Receiver Burst Mode Dynamic Range |
15 | dB | |||
| Optical Return Loss | -20 | dB | |||
| LOS De-Assert | -33 | dBm | |||
| LOS Assert | -45 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB |
Fiber-to-the-Home (FTTH) Deployments: The OLT is used in FTTH networks to provide high-speed broadband connectivity to residential users. It enables the delivery of voice, data, and video services over a single fiber optic cable, offering faster and more reliable internet access.
Multi-Dwelling Unit (MDU) Environments: In apartment buildings or other multi-dwelling units, the OLT can be used to efficiently distribute fiber connectivity to multiple tenants. It allows for centralized management and control of the fiber network, ensuring reliable and consistent service for all users.
Enterprise Networks: The TSP-GQ21-43DCS GPON OLT is suitable for deploying GPON networks in corporate environments. It enables efficient data transmission, supports high-bandwidth applications, and provides secure and reliable connectivity for businesses.
Campus Networks: The OLT can be used in educational institutions, corporate campuses, or large-scale residential communities to establish a robust fiber optic network infrastructure. It facilitates high-speed internet access, seamless communication, and efficient data transfer within the campus environment.
Service Provider Networks: Telecommunication service providers can utilize the TSP-GQ21-43DCS GPON OLT to offer high-speed broadband services to their customers. It enables service providers to deliver reliable internet connectivity, IPTV (Internet Protocol Television), VoIP (Voice over Internet Protocol), and other value-added services to their subscribers.
Transmission Distance: The standard transmission distance for the OLT is 20km. However, it can be customized to support longer distances based on the network infrastructure and deployment needs.
Temperature Range: The OLT is designed to operate within a temperature range of 0℃ to +70℃. If there are specific temperature requirements for the deployment environment, the OLT can be customized to operate within a wider or narrower temperature range accordingly.
PON Transceiver Compatibility: While the OLT supports SC/UPC PON transceivers by default, it can be customized to support other connector types such as LC/UPC or SC/APC based on the network infrastructure and equipment compatibility.
Interface Configuration: The OLT can be customized to include specific interface configurations based on the deployment needs. This can include the number and type of Ethernet ports, uplink interfaces, management interfaces, and other connectivity options.
Management and Monitoring Features: Customization can also be done on the management and monitoring features of the OLT. This can include specific software functionalities, remote management capabilities, network monitoring tools, and integration with existing network management systems.
