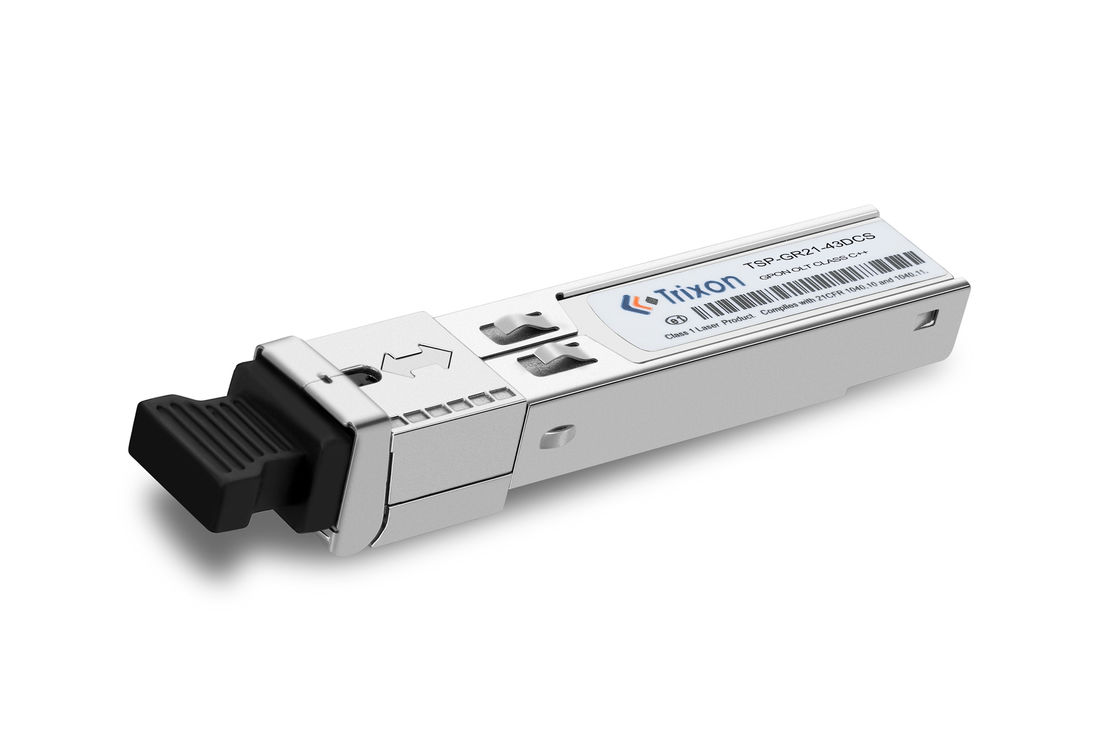

GPON OLT Transceiver Module Class C++ DFB TX 2.488Gbps RX 1.244Gbps 0℃~+70℃ TSP-GR21-43DCS
PON Transceiver is a single-mode optical transceiver designed for Passive Optical Network (PON) applications. It features a 1490nm DFB-LD transmitter and 1310nm burst-mode APD-TIA receiver, with a data rate of TX 2.488Gbps and RX 1.244Gbps, and a transmission distance of up to 20km. It is powered by a single 3.3V power supply and is equipped with a TTL logic interface. It is compliant with the SC/UPC standard and is designed for single-mode fiber applications. This transceiver is ideal for FTTH, FTTB, and FTTP networks. It is highly reliable and optimized for long-distance, high-speed communications.
| Parameter | Value |
|---|---|
| Product Name | PON Transceiver |
| Connector Type | Single SC/UPC |
| Optical Components | DFB |
| Operating Temperature | 0℃~+70℃ |
| Transmission Distance | Distance Up To 20km |
| Data Rate | TX 2.488Gbps RX 1.244Gbps |
| Performance | Digital Burst RSSI Function To Monitor The Input Optical Power Level |
| Interface Type | SC/UPC |
| Application | Class C++ |
| Power Supply | Single 3.3V Power Supply And TTL Logic Interface |
Performance Specifications – Optical
(CLASS C++)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| 9μm Core Diameter SMF | 20 | Km | |||
| Data Rate |
TX 2.488 RX 1.244 |
Gbps | |||
| Transmitter | |||||
| Centre Wavelength | λC | 1480 | 1490 | 1500 | nm |
| Spectral Width (-20dB) | Δλ | 1 | nm | ||
| Average Output Power | AOP | +5 | +9 | dBm | |
| Extinction Ratio | ER | 8.2 | dB | ||
| Average Power of OFF Transmitter | -39 | dBm | |||
| Transmitter Dispersion Penalty | TDP | 1 | dB | ||
| Output Optical Eye | Compliant with ITU-T G.984.2 | ||||
| Receiver | |||||
| Centre Wavelength | 1260 | 1310 | 1360 | nm | |
| Sensitivity*note3 | SEN | -32 | dBm | ||
| Receiver Overload | SAT | -12 | dBm | ||
|
Receiver Burst Mode Dynamic Range |
15 | dB | |||
| Optical Return Loss | -20 | dB | |||
| LOS De-Assert | -33 | dBm | |||
| LOS Assert | -45 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB | ||
The Trixon TSP-GR21-43DCS PON Transceiver is the ideal choice for applications needing a high-speed, long distance optical connection. It is designed with a Class C++ optical interface and a Single SC/UPC Connector, allowing for data transmission up to 2.488Gbps and 1.244Gbps for receive and transmit respectively. With a maximum transmission distance of 20km, the Trixon TSP-GR21-43DCS PON Transceiver is perfect for a wide range of applications. It utilizes DFB optical components to ensure a reliable and secure connection. It is the perfect choice for those looking for a PON transceiver with superior performance.
Trixon TSP-GR21-43DCS PON Transceiver is a single-mode optical transceiver used for Class C++ applications. It is manufactured in China with an operating temperature range of 0℃~+70℃. The transceiver features a data rate of TX 2.488Gbps RX 1.244Gbps and a wavelength of 1490nm DFB-LD Transmitter and 1310nm Burst-mode APD-TIA Receiver. It is equipped with an optical interface SC/UPC for both the transmitter and receiver and offers a DFB optical components.
Our PON Transceiver is supported by a team of knowledgeable technical support engineers. We provide a range of services to ensure your product is running at optimal performance, including:
All PON Transceiver products will be securely packaged in strong cardboard boxes. The box will include the product, accessories, and any user manuals.
Shipping will be by a reliable courier service. We will email customers a tracking code so that they can track their package's progress. Delivery times will vary depending on the destination.
Reference Datasheet File code: DS900008
|
