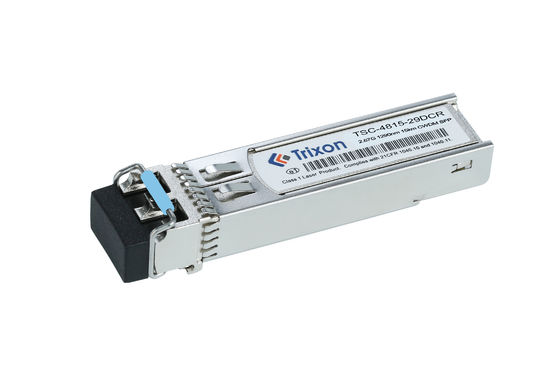

This OC-48/STM-16 SFP CWDM Transceiver is designed for 1.25Gbps data rate, and based on Dual LC connector interface for duplex SMF fiber transmission. It is a high performance and cost-effective product which supports DDMI (Digital Diagnostic Monitoring Interface) function. With the support of single +3.3V power supply, the optical transceiver is compliant with IEEE 802.3z 1000BASE-SX and SFF-8472 standard, and supports 1310nm and 1550nm CWDM wavelengths.
This device is designed to meet the requirements for high-density, high-port-count applications in the data center, enterprise core and aggregation layer, as well as metropolitan area access. And its compact size and low power consumption make it an ideal solution for SFP-based systems.
| Product Name | OC-48/STM-16 SFP CWDM Transceiver |
|---|---|
| Compliant | Compliant With MSA SFP Specification SFF-8472 |
| Laser | CWDM |
| Distance | 15km |
| Connector Type | Duplex LC Connector Interface |
| Fiber Type | SMF |
| Data Rate | Operating Data Rate Up To 2.5 Gbps |
| Pluggable | Hot Pluggable |
| DDMI | YES |
| Temperature Range | -5℃ ~+70℃ |
(15Km)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | λc-7.5 | λc | λc+7.5 | nm | |||
| Spectral Width*Note4 | ∆λ | 1 | nm | DFB-LD | ||||
| Average Output Power | POUT | -5 | 0 | dBm | ||||
| Extinction Ratio | ER | 8.2 | dB | |||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | |||||
| Output Optical Eye | Complies with STM-16/OC-48 eye masks when filtered | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1200 | 1600 | nm | ||||
| Sensitivity*Note5 | PIN | -18 | dBm | |||||
| Receiver Overload | Overload | 0 | dBm | |||||
| Optical Return Loss | 12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -25 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
The transceiver is primarily used in optical communication networks that require a data rate of 2.5 Gbps.
It is suitable for applications based on OC-48 (Optical Carrier 48) and STM-16 (Synchronous Transport Module 16) communication standards.
The transceiver supports CWDM (Coarse Wavelength Division Multiplexing) technology, which allows multiple optical signals to be transmitted simultaneously over a single fiber by utilizing different wavelengths.
It can be used in various network applications, including telecommunications, data centers, enterprise networks, and metro/access networks.
Data Rate: Transceiver modules can be customized to support different data rates based on the requirements of the network. Common data rates include 1Gbps, 10Gbps, 25Gbps, and higher.
Transmission Distance: The transmission distance of a transceiver module can be customized to meet specific network requirements. Depending on the technology used, modules can support short-reach (e.g., a few meters), medium-reach (e.g., up to 10 kilometers), or long-reach (e.g., up to 80 kilometers or more) applications.
Temperature Range: The temperature range of a transceiver module can be customized to ensure optimal performance in specific environmental conditions. This customization allows the module to operate reliably in temperature extremes, such as in industrial or outdoor environments.
Connector Interface: Transceiver modules can be customized to support different types of connector interfaces, such as LC, SC, or MPO connectors. The choice of connector interface depends on the specific network equipment and cabling infrastructure being used.
Protocols and Standards: Transceiver modules can be customized to support various protocols and standards, such as Ethernet, Fibre Channel, SONET/SDH, or specific industry standards.
Wavelengths: For modules using wavelength division multiplexing (WDM) technologies, customization options may include specific wavelength channels or combinations to support specific network architectures or requirements.
Form Factor: Transceiver modules come in various form factors, such as SFP, SFP+, QSFP, or CFP. Depending on the network equipment, customization may involve selecting the appropriate form factor for compatibility.
We offer comprehensive technical support and service for our SFP transceiver module products.
We provide detailed product information, technical advice and solutions to help customers make the best choice for their requirements.
The packaging and shipping of SFP Transceiver Module requires:
Reference Datasheet File code: DS210006
|
|
