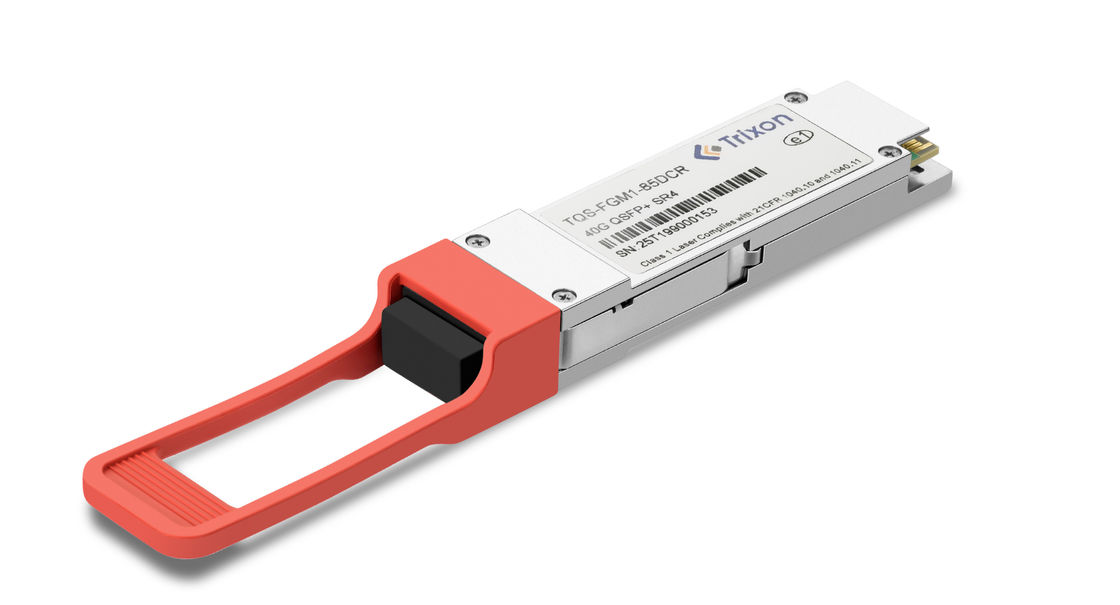

MTP 40G QSFP+ Transceiver Module SR4 Distance 100M With Wavelength 850nm MMF

Negotiable
MOQ
Negotiable
Price
MTP 40G QSFP+ Transceiver Module SR4 Distance 100M With Wavelength 850nm MMF
Features Gallery Product Description Request A Quote
Features
Specifications
Wavelength: 850nm
Low Power Consumption: < 1.5W
Temperature Range: 0~70℃
Distance: 100m
Connector: MTP/MPO Optical Connector
DDM: Support
Channel: 4 Independent Full-duplex Channels
Fiber Type: MMF
Highlight:

Trixon 40G QSFP+ SR4 Transceiver 850nm MMF

,

Trixon qsfp 40g sr4 850nm MMF

,

Trixon qsfp 40g sr4 100M

Basic Infomation
Place of Origin: CHINA
Brand Name: Trixon
Model Number: TQS-FGM1-85DCR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

40G QSFP+ SR4 Transceiver Module Distance 100M with wavelength 850nm MMF 0~70℃ TQS-FGM1-85DCR

Product Description:

The 40G QSFP+ SR4 Transceiver Module is a high-performance optical transceiver designed for 40G Ethernet applications. It offers a low power consumption of less than 1.5 Watts and an extended temperature range from 0 to 70℃. This 40G QSFP+ transceiver module is compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 standards. It transmits and receives over 4 parallel multimode fibers (MMF) at a wavelength of 850nm, providing a data rate of 40Gbps up to 100m. This 40G QSFP+ transceiver module is designed for use in data center and high-end computing applications.

The 40G QSFP+ SR4 Transceiver module is designed with cutting-edge technology, offers enhanced features, and superior performance. It supports digital diagnostics (DDM/ DOM) for real-time monitoring of the optical link and temperature, voltage, and bias current of the transceiver. This 40G QSFP+ transceiver module supports digital diagnostics, which is compliant with SFF-8436. The module is compliant with RoHS and is 100% tested for compatibility and quality.

The 40G QSFP+ SR4 Transceiver module has been designed to meet the most stringent requirements of the 40G Ethernet applications. It is a reliable solution for data centers and high-end computing applications. It has been designed with advanced features, such as Hot-pluggable, Low power consumption, and Digital Diagnostics, which make it an ideal choice for data centers and high-end computing applications.



Features:

  • Product Name: 40G QSFP+ Transceiver
  • Data Rate: 41.25Gbps(4*10.3Gbps)
  • Temperature Range: 0~70℃
  • Connector: MTP/MPO Optical Connector
  • Low power consumption: < 1.5W
  • Channel: 4 Independent Full-duplex Channels


Technical Parameters:

Property Value
Product Name 40G QSFP+ SR4 Transceiver
Temperature Range 0~70℃
Channel 4 Independent Full-duplex Channels
Distance 100m
Low power consumption < 1.5W
DDM Support
Wavelength 850nm
Connector MTP/MPO Optical Connector
Data Rate 41.25Gbps(4*10.3Gbps)
Fiber Type MMF



Performance Specifications – Optical

Parameter Symbol Min Typ. Max Unit
Transmitter
Center Wavelength λC 840 850 860 nm
RMS Spectral Width Pm - - 0.65 nm
Average Optical Power, each Lane Pavg -7.6 - 2.4 dBm
Optical Modulation Amplitude (OMA) Poma -5.6 - +3 dBm
TDP, each Lane   - - 3.5 dB
Extinction Ratio ER 3 - - dB
Relative Intensity Noise Rin - - -128 dB/Hz
Optical Return Loss Tolerance   - - 12 dB
Transmitter Eye Mask Definition   Complied with IEEE802.3ba
Average Launch Power OFF Transmitter, each Lane Poff - - -30 dBm
Receiver
Center Wavelength λC 830 850 860 nm
Average Power at Receiver Input, each Lane*note5   -9.5 - 2.4 dBm
Damage Threshold   2.4     dB
Receiver Reflectance   - - -12 dB
Los Assert LosA -30 - - dBm
Los Dessert LosD - - -14 dBm
Los Hysteresis LosH 0.5 - - dB

Note5:measured with a PRBS 231-1 test pattern @10.3125Gbps

Applications:

Trixon 40G QSFP+ Transceiver Module (Model: TQS-FGM1-85DCR) is designed with 4 independent full-duplex channels, MTP/MPO optical connector, 850nm wavelength, 100m distance and temperature range from 0-70℃, making it ideal for a wide range of applications. This 40G QSFP+ Transceiver Module is made in China, offering superior quality and reliability. With its high speed and long transmission distance, it is an ideal solution for data centers, LANs, SANs, and other high-speed applications. It supports data rates of up to 40Gbps, making it an ideal choice for high-performance computing, storage, and networking applications. The 40G QSFP+ Transceiver Module can be used to connect equipment in data centers, LANs, SANs, and other high-speed applications, providing a reliable and efficient way to transfer data between systems. It is also suitable for use in industrial automation, medical imaging, and other applications that require a reliable and high-speed connection.



Customization:

40G QSFP+ Transceiver Module

Brand Name: Trixon

Model Number: TQS-FGM1-85DCR

Place of Origin: CHINA

Connector: MTP/MPO Optical Connector

Distance: 100m

Data Rate: 41.25Gbps(4*10.3Gbps)

Low power consumption: < 1.5W

Product Name: 40G QSFP+ SR4 Transceiver

Trixon TQS-FGM1-85DCR 40G QSFP+ Transceiver Module

Trixon TQS-FGM1-85DCR 40G QSFP+ Transceiver Module is a device that is used to transmit and receive data over optical fiber. It supports data rates up to 41.25Gbps and transmission distances of up to 100m. It has a low power consumption of < 1.5W and comes with MTP/MPO Optical Connector.



Support and Services:

40G QSFP+ Transceiver Technical Support and Service

We have a team of experienced engineers to provide technical support for your 40G QSFP+ transceiver. Our technical support services include:

  • Assistance in installation, configuration, and troubleshooting
  • 24/7 remote monitoring and support
  • On-site technical support
  • Software updates
  • Hardware repair and replacement

We also provide regular maintenance and service for your 40G QSFP+ transceiver. This includes:

  • Testing and inspection of hardware components
  • Software diagnostics and updates
  • Cleaning and dusting of components
  • Replacement of worn or defective parts

If you have any questions or concerns, please contact us at any time.



Packing and Shipping:

Packaging and Shipping

40G QSFP+ Transceiver is shipped in a static-safe package. The package should be handled with care to avoid any damage. The package is designed to protect the transceiver from dust, moisture, or other environmental hazards. The package must be opened carefully to ensure the safety of the transceiver.

The 40G QSFP+ Transceiver should be shipped via a reliable shipping company. It is important to ensure that the package is properly labeled and tracked to avoid any delays or losses. The package should be inspected upon receipt to ensure that the transceiver is in good condition.



Reference Datasheet File code: DS180028
