Brand Name: | Trixon |
Model Number: | TQS-FGM1-85DCR |
MOQ: | Negotiable |
Price: | Negotiable |
Packaging Details: | Negotiable |
Payment Terms: | L/C D/P |

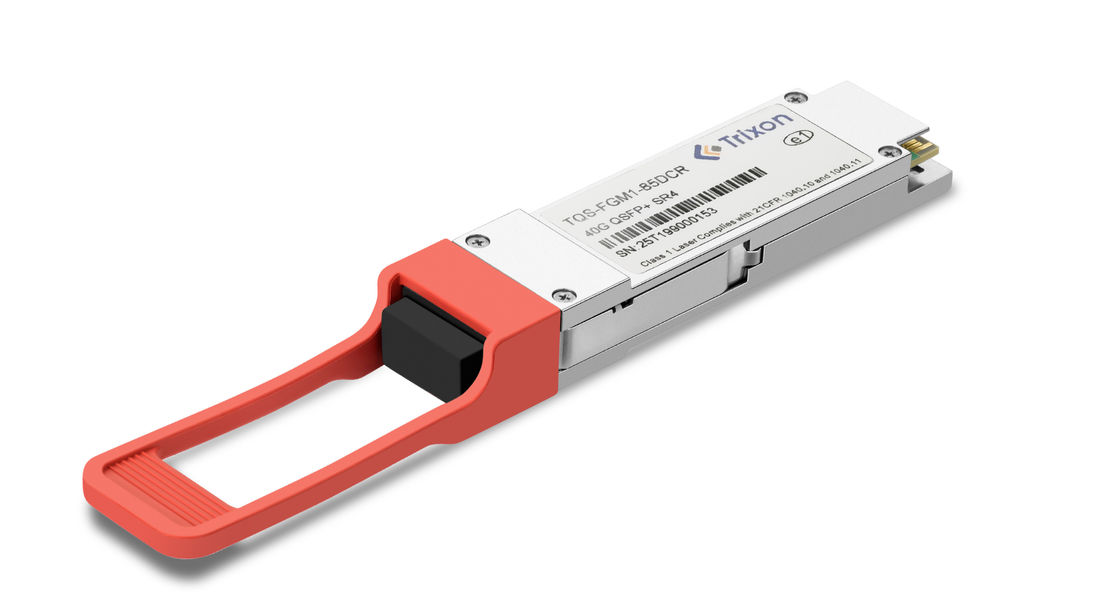

40G QSFP+ SR4 Transceiver Module Distance 100M with wavelength 850nm MMF 0~70℃ TQS-FGM1-85DCR
The 40G QSFP+ SR4 Transceiver Module is a high-performance optical transceiver designed for 40G Ethernet applications. It offers a low power consumption of less than 1.5 Watts and an extended temperature range from 0 to 70℃. This 40G QSFP+ transceiver module is compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 standards. It transmits and receives over 4 parallel multimode fibers (MMF) at a wavelength of 850nm, providing a data rate of 40Gbps up to 100m. This 40G QSFP+ transceiver module is designed for use in data center and high-end computing applications.
The 40G QSFP+ SR4 Transceiver module is designed with cutting-edge technology, offers enhanced features, and superior performance. It supports digital diagnostics (DDM/ DOM) for real-time monitoring of the optical link and temperature, voltage, and bias current of the transceiver. This 40G QSFP+ transceiver module supports digital diagnostics, which is compliant with SFF-8436. The module is compliant with RoHS and is 100% tested for compatibility and quality.
The 40G QSFP+ SR4 Transceiver module has been designed to meet the most stringent requirements of the 40G Ethernet applications. It is a reliable solution for data centers and high-end computing applications. It has been designed with advanced features, such as Hot-pluggable, Low power consumption, and Digital Diagnostics, which make it an ideal choice for data centers and high-end computing applications.
Property | Value |
---|---|
Product Name | 40G QSFP+ SR4 Transceiver |
Temperature Range | 0~70℃ |
Channel | 4 Independent Full-duplex Channels |
Distance | 100m |
Low power consumption | < 1.5W |
DDM | Support |
Wavelength | 850nm |
Connector | MTP/MPO Optical Connector |
Data Rate | 41.25Gbps(4*10.3Gbps) |
Fiber Type | MMF |
Performance Specifications – Optical
Parameter | Symbol | Min | Typ. | Max | Unit |
Transmitter | |||||
Center Wavelength | λC | 840 | 850 | 860 | nm |
RMS Spectral Width | Pm | - | - | 0.65 | nm |
Average Optical Power, each Lane | Pavg | -7.6 | - | 2.4 | dBm |
Optical Modulation Amplitude (OMA) | Poma | -5.6 | - | +3 | dBm |
TDP, each Lane | - | - | 3.5 | dB | |
Extinction Ratio | ER | 3 | - | - | dB |
Relative Intensity Noise | Rin | - | - | -128 | dB/Hz |
Optical Return Loss Tolerance | - | - | 12 | dB | |
Transmitter Eye Mask Definition | Complied with IEEE802.3ba | ||||
Average Launch Power OFF Transmitter, each Lane | Poff | - | - | -30 | dBm |
Receiver | |||||
Center Wavelength | λC | 830 | 850 | 860 | nm |
Average Power at Receiver Input, each Lane*note5 | -9.5 | - | 2.4 | dBm | |
Damage Threshold | 2.4 | dB | |||
Receiver Reflectance | - | - | -12 | dB | |
Los Assert | LosA | -30 | - | - | dBm |
Los Dessert | LosD | - | - | -14 | dBm |
Los Hysteresis | LosH | 0.5 | - | - | dB |
Note5:measured with a PRBS 231-1 test pattern @10.3125Gbps
Trixon 40G QSFP+ Transceiver Module (Model: TQS-FGM1-85DCR) is designed with 4 independent full-duplex channels, MTP/MPO optical connector, 850nm wavelength, 100m distance and temperature range from 0-70℃, making it ideal for a wide range of applications. This 40G QSFP+ Transceiver Module is made in China, offering superior quality and reliability. With its high speed and long transmission distance, it is an ideal solution for data centers, LANs, SANs, and other high-speed applications. It supports data rates of up to 40Gbps, making it an ideal choice for high-performance computing, storage, and networking applications. The 40G QSFP+ Transceiver Module can be used to connect equipment in data centers, LANs, SANs, and other high-speed applications, providing a reliable and efficient way to transfer data between systems. It is also suitable for use in industrial automation, medical imaging, and other applications that require a reliable and high-speed connection.
Brand Name: Trixon
Model Number: TQS-FGM1-85DCR
Place of Origin: CHINA
Connector: MTP/MPO Optical Connector
Distance: 100m
Data Rate: 41.25Gbps(4*10.3Gbps)
Low power consumption: < 1.5W
Product Name: 40G QSFP+ SR4 Transceiver
Trixon TQS-FGM1-85DCR 40G QSFP+ Transceiver Module is a device that is used to transmit and receive data over optical fiber. It supports data rates up to 41.25Gbps and transmission distances of up to 100m. It has a low power consumption of < 1.5W and comes with MTP/MPO Optical Connector.
We have a team of experienced engineers to provide technical support for your 40G QSFP+ transceiver. Our technical support services include:
We also provide regular maintenance and service for your 40G QSFP+ transceiver. This includes:
If you have any questions or concerns, please contact us at any time.
40G QSFP+ Transceiver is shipped in a static-safe package. The package should be handled with care to avoid any damage. The package is designed to protect the transceiver from dust, moisture, or other environmental hazards. The package must be opened carefully to ensure the safety of the transceiver.
The 40G QSFP+ Transceiver should be shipped via a reliable shipping company. It is important to ensure that the package is properly labeled and tracked to avoid any delays or losses. The package should be inspected upon receipt to ensure that the transceiver is in good condition.
Reference Datasheet File code: DS180028
