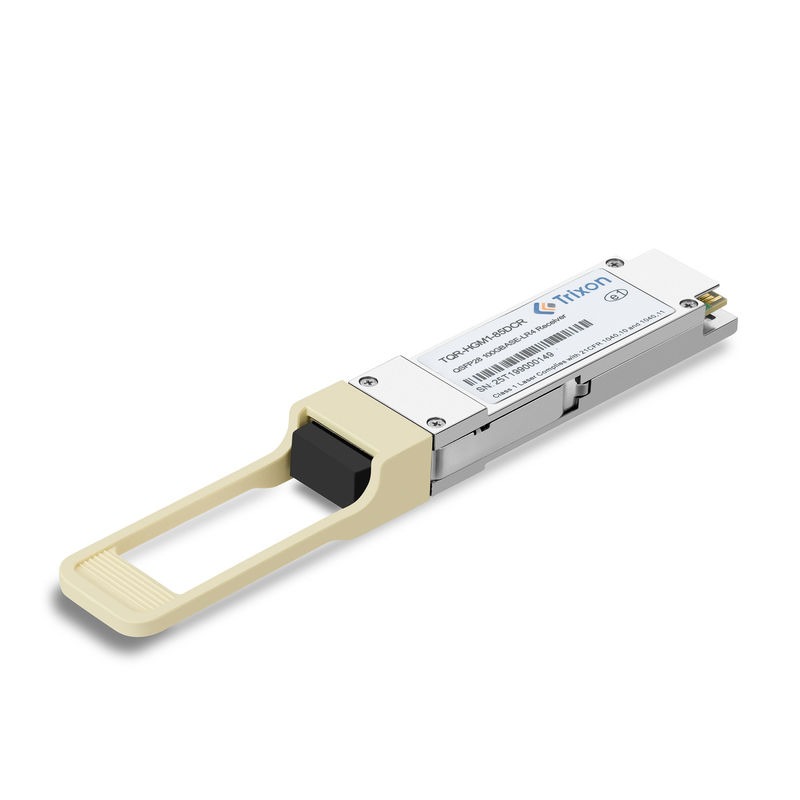

100G QSFP28 SR4 Transceiver Receiver only 0~70°C 850nm distance 100M,TQR-HGM1-85DCR
The 100G QSFP28 Transceiver is a high-performance, reliable, and cost-effective transceiver module designed for 100Gbps data rate applications. It is compliant with the QSFP28 MSA and IEEE802.3ba standards and supports 100Gbps data rate with SR4 optical interface. It provides 100m transmission distance over OM3 and OM4 multimode fiber. The low power consumption of less than 2.0W and operating temperature range from 0 to 70°C makes it an ideal choice for data center and high-performance computing applications. The product name is 100G QSFP28 SR4 Receiver Module.
| Parameter | Value |
|---|---|
| Product Name | 100G QSFP28 SR4 Receiver Module |
| Channel | 4 Independent Full-duplex Channels |
| Performance | Only Receiver |
| Low power consumption | < 2.0W |
| Operating case temperature | 0~70°C |
| Fiber Type | MMF |
| Power | Single +3.3V Power Supply |
| Wavelength | 850nm |
| Distance | 100m |
| DDM | YES |
Performance Specifications – Optical
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Receiver | |||||
| Center Wavelength | Λr | 830 | 850 | 860 | nm |
| Average Power at Receiver Input, each Lane | -10.3 | - | 2.4 | dBm | |
| Receiver Reflectance | - | - | -12 | dB | |
| Los Assert | LosA | -30 | - | - | dBm |
| Los Dessert | LosD | - | - | -7.5 | dBm |
| Los Hysteresis | LosH | 0.5 | - | - | dB |
The 100G QSFP28 Transceiver from Trixon with model number TQR-HGM1-85DCR is a high-performance transceiver and widely used in data networks. It is manufactured in CHINA and has a maximum data rate of 100G. This transceiver is equipped with a digital diagnostic monitoring (DDM) feature, which allows users to monitor the performance of the transceiver. It supports multi-mode fiber (MMF) cable with a maximum distance of 100m. This 100G QSFP28 Transceiver consists of 4 independent full-duplex channels, which allows data to be transmitted in both directions simultaneously. It is suitable for applications such as high-speed network infrastructure, data center interconnect, and enterprise networking.
Brand Name: Trixon
Model Number: TQR-HGM1-85DCR
Place of Origin: CHINA
Fiber Type: MMF
Low power consumption: < 2.0W
DDM: YES
Wavelength: 850nm
Data Rate: 100G
We offer full technical support and service for 100G QSFP28 Transceiver. Our team has the expertise and experience to ensure your product is working optimally and efficiently. We provide a full range of services, including installation, troubleshooting, maintenance, and upgrades. Our knowledgeable technicians are available 24/7 to provide you with the highest level of customer service. We are committed to providing the highest quality and most reliable products for your business needs.
Packaging and Shipping for 100G QSFP28 Transceiver(Receiver only).
Reference Datasheet File code:DS180012
