| Brand Name: | Trixon |
| Model Number: | TPS-X5M1-85DCR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |

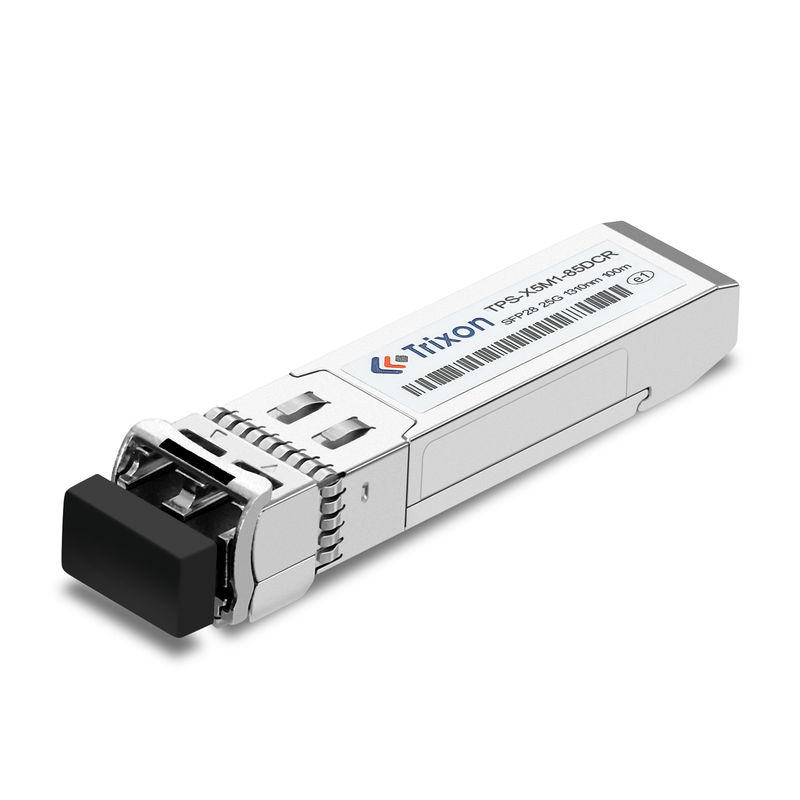

25G SFP28 SR 850nm-VCSEL 100M distance,Optical Transceiver 0℃~ +70℃,MMF,TPS-X5M1-85DCR
The 25G SFP28 Transceiver is a BIDI optical transceiver that enables 25Gbps data rate up to 100m over a duplex LC connector, and it supports a wide temperature range from 0℃ to +70℃. This transceiver is compliant with the SFP28 MSA and IEEE802.3by and operates with a single +3.3V power supply. It is designed to help system engineers achieve higher levels of integration, port density, and power efficiency for their 25G networks.
| Attribute | Value |
|---|---|
| Product Name | 25GBASE-SR Transceiver |
| Data Rate | 25.78Gbps |
| Fiber Type | MMF, OM4 Multi-mode Fiber |
| Wavelength | 850nm-VCSEL |
| Connector | Duplex LC Optical Connector |
| Power | +3.3V |
| Distance | 100m |
| Temperature Range | 0℃~ +70℃ |
| DDM/DOM | Yes |
| Compliant | Compliant With SFF-8431 And SFF-8432 |
Performance Specifications – Optical
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λt | 840 | 850 | 860 | nm |
| RMS Spectral Width | δλt | - | - | 0.6 | nm |
| Average Optical Power, each Lane | Pavg | -8.4 | - | +2.4 | dBm |
| TDP | - | - | 4.3 | dB | |
| Extinction Ratio | ER | 2 | - | - | dB |
| Average Launch Power OFF Transmitter, each Lane | Poff | - | - | -30 | dBm |
|
Receiver |
|||||
| Center Wavelength | Λr | 830 | 850 | 860 | nm |
| Rx Sensitivity Note 5 | - | -10.3 | dBm | ||
| Receiver Reflectance | - | - | -12 | dB | |
| LOS De-Assert | LOSD | -13 | dBm | ||
| LOS Assert | LOSA | -30 | dBm | ||
| LOS Hysteresis | LOSH | 0.5 | dB | ||
Note5: Measured with a test pattern, @25.78Gb/s, BER<5E-5. Informative Only
The 25G SFP28 Transceiver from Trixon is a high-speed, low-cost, and highly reliable optical transceiver for 25G networking applications. The model number for this transceiver is TPS-X5M1-85DCR. It is compliant with SFF-8431 and SFF-8432, and can be powered by +3.3V. It has an operating temperature range from 0℃ to +70℃, and is equipped with a duplex LC optical connector. This 25GBASE-SR Transceiver is perfect for applications such as data center networks, enterprise networks, metro networks, and storage systems, providing a cost-effective way to extend the reach of your network and increase the speeds of your data transfer. It supports BIDI (Bi-directional) communication, and is an ideal choice for high-density, high-bandwidth 25G Ethernet applications. The Trixon 25G SFP28 Transceiver is designed and manufactured with high-quality components to provide reliable and long-lasting performance. The product is manufactured in CHINA, and is backed by a comprehensive warranty.
25G SFP28 Transceiver, made by Trixon, model number TPS-X5M1-85DCR. This transceiver is equipped with DDM/DOM, temperature range 0℃~ +70℃, power +3.3V and distance 100m. It is a 25GBASE-SR Transceiver.
Our 25G SFP28 Transceiver product comes with full technical support and service. Our team of engineers and technicians are available by phone and email to provide any help you may need.
We offer 24/7 technical support for customers who need help with installation, troubleshooting, and maintenance. We also provide firmware and software updates to ensure that the product is always up-to-date and running optimally.
For customers who need a more hands-on approach, we offer on-site visits from our technicians. We can provide personalized training and support to ensure that you get the most out of your product.
We also provide a full warranty on all our products, so you can be sure that you are covered in case of any defects or malfunctions.
At
Packaging and Shipping: 25G SFP28 Transceiver
Reference Datasheet File code: DS240008
|
|
