The 10G SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module, specifically designed for high-speed communication links that require 10G bandwidth. It is equipped with Duplex LC Connector Interface and is compatible with SMF (Single-Mode Fiber) cables. It features a wavelength of 1310nm-DFB, allowing for efficient and reliable data transmission. This module is also DDM/DOM (Digital Diagnostic Monitoring) enabled, providing greater accuracy and reliability in its performance. The 10G SFP+ Transceiver Module is an ideal choice for any 10G network application.
| Properties | Details |
|---|---|
| Fiber Type | SMF |
| Wavelength | 1550nm-EML |
| Distance | 80km |
| Product Name | 10G SFP+ Transceiver Module |
| DDM/DOM | Yes |
| Compliant | Compliant With MSA SFP Specification |
| Temperature Range | -5℃~+70℃ |
| Data Rate | Operating Data Rate Is 11.3Gbps |
| Optical Interface | Duplex LC Connector Interface |
Performance Specifications – Optical
(1550nm EML and APD,80km)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1530 | - | 1565 | nm |
|
Side Mode Suppression Ratio |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 0.3 | nm |
| Average Output Power*note13 | Pout | 0 | - | 4 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 3.0 | dB |
| Optical Return Loss Tolerance | ORLT | - | - | 21 | dB |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1260 | - | 1570 | nm |
| Receiver Sensitivity*note14 | SEN | - | - | -23 | dBm |
| Receiver Overload | Pmax | -7 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -24 | dBm |
| LOS Assert | LOSA | -36 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Note13: Output is coupled into a 9/125um SMF. The typical value is +2dBm.
Note14: Measured with a PRBS 231-1 test pattern @10.3125Gbps, BER≤10-12.

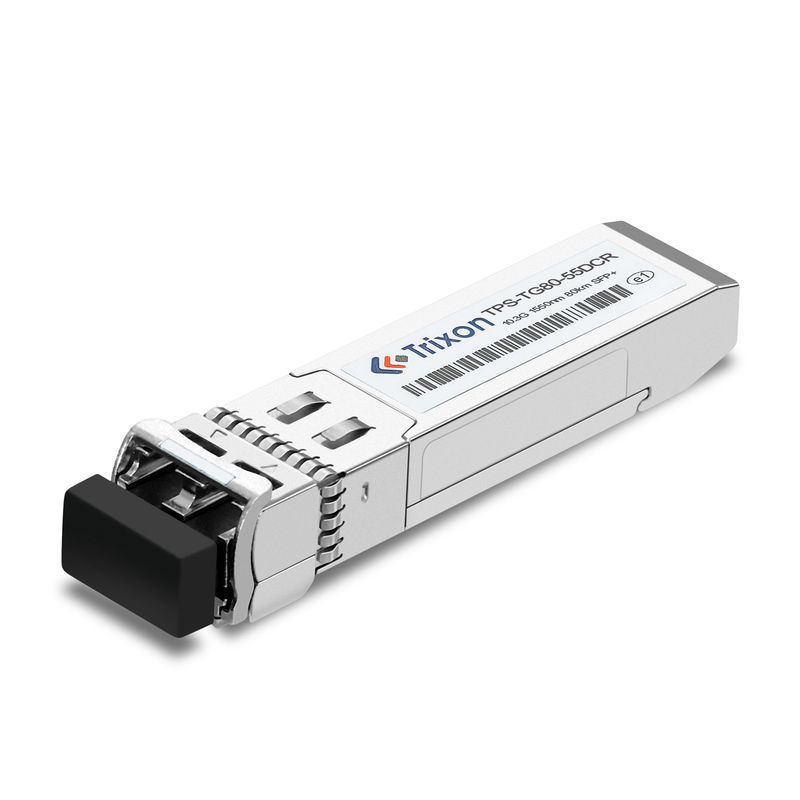

Trixon TPS-TG80-55DCR SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module with a Duplex LC Connector Interface. It is compliant with MSA SFP Specification, with a Fiber Type of SMF and a Wavelength of 1310nm-DFB. It has a Temperature Range of -5℃~+70℃.
The Trixon TPS-TG80-55DCR SFP+ Transceiver Module is designed for various applications and scenarios, such as optical communication networks, data centers and enterprise networks. It can be used in 10 Gigabit Ethernet (10G), Fibre Channel and InfiniBand applications. It is suitable for short-range, high-speed interconnects, including switches and routers.
The Trixon TPS-TG80-55DCR SFP+ Transceiver Module offers a cost-effective solution for data center, enterprise, and storage applications. It is one of the most reliable and cost-effective solutions for high-speed interconnects. It is a great choice for customers who need to expand their network bandwidth and performance.
Transmission Distance: You may have the option to customize the transmission distance of the transceiver module. This allows you to tailor it to meet the specific requirements of your network infrastructure, whether you need shorter or longer reach capabilities.
Wavelength: Customizing the wavelength of the transceiver module can be beneficial if you have specific wavelength requirements for compatibility with your existing network components or to optimize performance in your network environment.
Temperature Range: If your application requires operation in extreme temperature conditions beyond the standard range of -5℃ to +70℃, you can request customization for an extended temperature range to ensure reliable performance in challenging environments.
Digital Diagnostic Monitoring (DDM): You may have the option to include DDM functionality in the transceiver module. DDM provides real-time monitoring and reporting of critical parameters such as optical power, temperature, and voltage, enabling better network management and troubleshooting.
Labeling and Branding: Custom labeling and branding options may be available to incorporate your company's logo or specific identification markings on the transceiver module.
Additional Testing and Compliance: If your application requires specific testing or compliance certifications, you can discuss these requirements with the supplier to ensure the transceiver module meets your desired standards.
The technical support and services for SFP+ Transceiver Module include:
Reference Datasheet File code: DS090010
