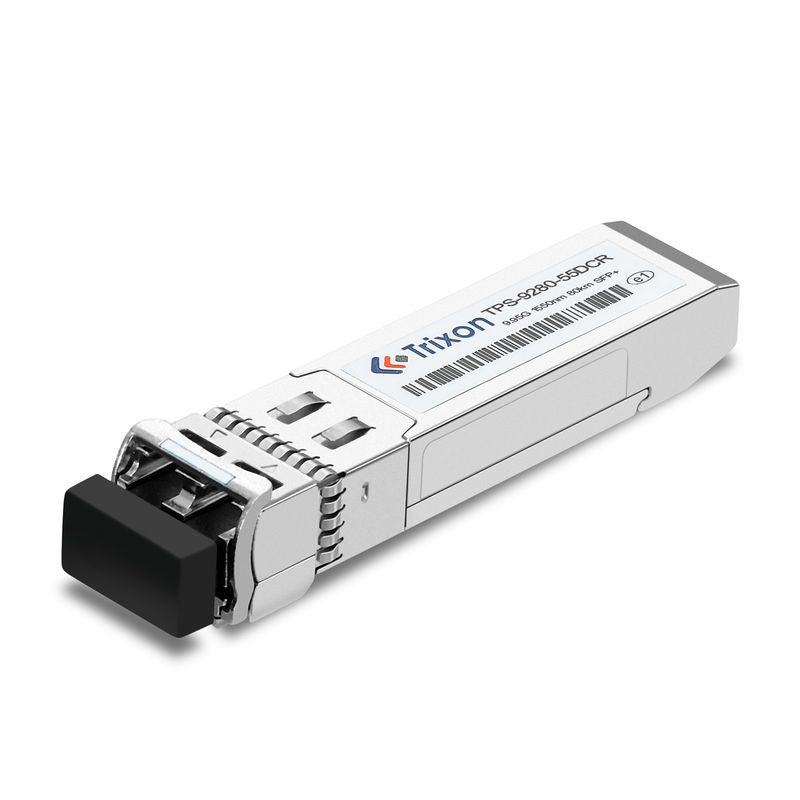

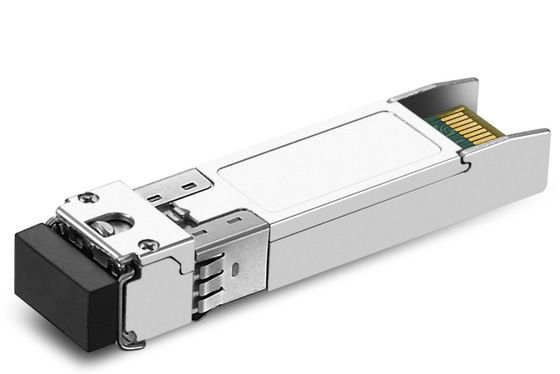

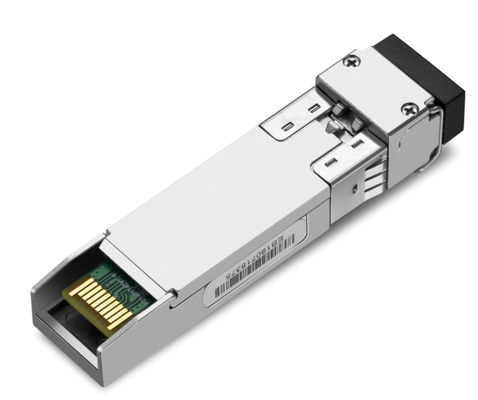

TPS-9280-55DCR 9.95Gbps OC192/STM64 SFP+ Transceiver Module 80km -5℃~+70℃,1550nm-DFB,with CDR
The OC192/STM64 SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module that is designed for use with Single-Mode Fiber (SMF). It features a Duplex LC Connector Interface and is capable of delivering up to 10km of transmission distance. This transceiver module provides excellent performance in a wide temperature range (-5℃~+70℃). It is an ideal solution for high-speed data transmission in OC192/STM64 networks.
| Parameter | Value |
|---|---|
| Data Rate | 9.95Gbps |
| Wavelength | 1550nm-DFB |
| Distance | 80km |
| Optical Interface | Duplex LC Connector Interface |
| DDM/DOM | Yes |
| Compliant | Compliant With MSA SFP Specification |
| Temperature Range | -5℃~+70℃ |
| Fiber Type | SMF |
| Product Name | OC192/STM64 SFP+ Transceiver Module |
Performance Specifications – Optical
(1550nm EML and APD,80km, OC-192 IR-2/STM S-64.2b)
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1530 | - | 1565 | nm |
|
Side Mode |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 0.3 | nm |
| Average Output Power*note13 | Pout | 0 | - | 4 | dBm |
| Extinction Ratio | ER | 9 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2.0 | dB |
| Optical Return Loss Tolerance | ORLT | - | - | 21 | dB |
| Output Optical Eye | Compliant with OC192/STM64 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1260 | - | 1570 | nm |
| Receiver Sensitivity*note14 | SEN | - | - | -24 | dBm |
| Receiver Overload | Pmax | -7 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -22 | dBm |
| LOS Assert | LOSA | -36 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Note11: Output is coupled into a 9/125um SMF. The typical value is +2dBm.
Note12: Measured with a PRBS 231-1 test pattern @9.95Gbps, BER≤10-12.
Telecommunications Networks: The module can be used in telecommunications networks for high-speed transmission of OC192/STM64 signals. It enables service providers to extend their network reach and offer reliable connectivity for voice, data, and video services over long distances.
Backbone Networks: The module is suitable for backbone networks that require high-capacity and long-distance connectivity. It can be deployed to establish connections between network nodes or data centers, supporting the efficient transmission of large volumes of data.
Metropolitan Area Networks (MANs): MANs connect various locations within a city or metropolitan area. The TPS-9280-55DCR module can be used in MANs to establish high-speed and long-distance connections, facilitating efficient communication between different sites.
Wide Area Networks (WANs): WANs connect geographically dispersed locations, such as offices, branches, or data centers. The module allows for high-speed and reliable data transmission over long distances, supporting efficient communication and collaboration between remote locations.
Fiber to the x (FTTx): The module can be deployed in FTTx networks, such as Fiber to the Home (FTTH) or Fiber to the Business (FTTB), to provide high-speed broadband services over long distances. It enables service providers to deliver high-bandwidth connections to residential and commercial customers.
Network Infrastructure Upgrades: The TPS-9280-55DCR module can be used in network infrastructure upgrades or expansions, where higher data rates and longer transmission distances are required. It allows for seamless integration and improvement of existing networks without significant infrastructure changes.
Temperature Range: The standard temperature range for the TPS-9280-55DCR module is -5°C to +70°C. If you require a different temperature range to match your specific operational environment, you can discuss your requirements with the manufacturer. They may offer customization options to accommodate a wider or narrower temperature range.
Connector Type: The module may come with a specific connector type, such as LC or SC. If you require a different connector type to match your existing infrastructure, you can discuss the possibility of customizing the connector type with the manufacturer.
Compatibility: If you have compatibility concerns with your existing equipment or network setup, you can discuss with the manufacturer to ensure that the customized module will be compatible with your specific environment. This may involve adjusting parameters or configurations to ensure seamless integration.
Power Budget: If you have specific power budget requirements for your network, you can discuss with the manufacturer to determine if the module can be customized to meet those requirements. This may involve adjusting the power consumption or sensitivity of the module.
Labeling and Branding: If you require specific labeling or branding on the module, such as custom logos or serial numbers, you can discuss these customization options with the manufacturer. They may be able to accommodate your branding requirements.
Testing and Certification: If you require additional testing or certification for the module to meet specific industry standards or compliance requirements, you can discuss these customization needs with the manufacturer. They may be able to provide tailored testing or certification processes.
