| Brand Name: | Trixon |
| Model Number: | TPL-X520-LXDIR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |

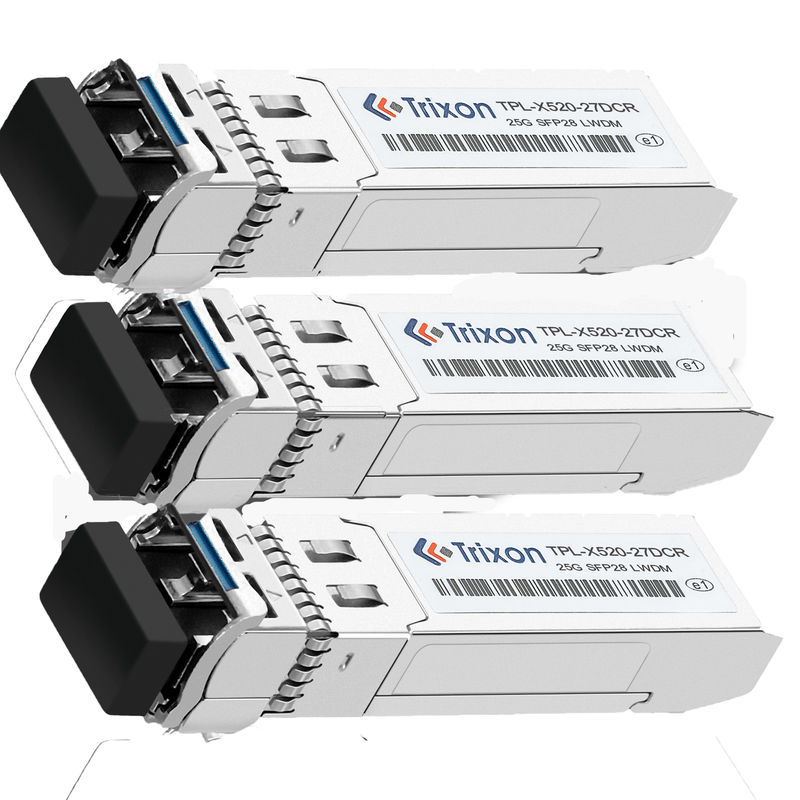

25G SFP28 LWDM Optical Transceiver SMF Fiber Type,20km,-40℃~ +85℃,TPL-X520-LXDIR
This 25G SFP28 transceiver is a high-performance, cost-effective module for short-distance optical network communications. It supports 25GBASE data rate and is compliant with SFP28 MSA standards. The fiber type of this transceiver is SMF (Single-Mode Fiber). It is capable of transmitting data up to 20km with Duplex LC optical connector. This transceiver is also equipped with Digital Diagnostics Monitoring (DDM) and Digital Optical Monitoring (DOM), which allows users to monitor the performance of the transceiver. This 25G SFP28 BIDI transceiver can provide an ideal solution for 25G networks, especially for LWDM (Low Water-Peak Wavelength Division Multiplexing) applications.
| Parameter | Value |
|---|---|
| Product Name | 25GBASE LWDM Transceiver |
| Wavelength | LWDM-1269.23nm~1318.35nm |
| Temperature Range | -40℃~ +85℃ |
| Voltage Supply | 3.3V |
| DDM/DOM | Yes |
| Compliant | SFP28 MSA Compliant |
| Distance | 20km |
| Fiber Type | SMF |
| Data Rate | 25Gbps |
| Connector | Duplex LC Optical Connector |
| Part No. | Data Rate |
Laser | Fiber Type |
Distance*Note1 | Optical Interface |
Temp. *Note2 | DDMI |
| TPL-X520-L1DIR | 25Gbps | LWDM-1269.23nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L2DIR | 25Gbps | LWDM-1273.54nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L3DIR | 25Gbps | LWDM-1277.89nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L4DIR | 25Gbps | LWDM-1282.26nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L5DIR | 25Gbps | LWDM-1286.66nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L6DIR | 25Gbps | LWDM-1291.10nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L7DIR | 25Gbps | LWDM-1295.56nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L8DIR | 25Gbps | LWDM-1300.05nm | SMF | 20km | LC | IT | Y |
| TPL-X520-L9DIR | 25Gbps | LWDM-1304.58nm | SMF | 20km | LC | IT | Y |
| TPL-X520-LADIR | 25Gbps | LWDM-1309.14nm | SMF | 20km | LC | IT | Y |
| TPL-X520-LBDIR | 25Gbps | LWDM-1313.73nm | SMF | 20km | LC | IT | Y |
| TPL-X520-LCDIR | 25Gbps | LWDM-1318.35nm | SMF | 20km | LC | IT | Y |
Performance Specifications – Optical
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λt | LWDM | nm | ||
| Spectral Width(-20dB) | Pm | - | - | 1 | nm |
| Average Optical Power, each Lane | Pavg | 0 | - | 6 | dBm |
| TDP, each Lane | - | - | 3.2 | dB | |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Receiver | |||||
| Center Wavelength | Λr | LWDM | nm | ||
| Average Power at Receiver Input, each Lane | - | -17 | dBm | ||
| Receiver Overload | -4 | - | dBm | ||
| LOSS De-Assert | LOSd | - | -18 | dBm | |
| LOSS Assert | LOSa | -30 | - | dBm | |
| LOSS Hysteresis | 0.5 | - | dB | ||
The Trixon TPL-X520-LXDIR 25G SFP28 Optical Transceiver is an excellent option for short-range transmission requirements, supporting distances of up to 20km over single-mode fiber. This transceiver incorporates BIDI functionality and utilizes high-quality components to ensure consistent and dependable performance. It adheres to the 25GBASE-LWDM standard and is equipped with a Duplex LC Optical Connector. The inclusion of DDM/DOM enables monitoring and maintenance, making it well-suited for optical network applications in enterprises, data centers, and storage environments. With its exceptional reliability and performance, the Trixon TPL-X520-LXDIR 25G SFP28 Optical Transceiver provides a reliable and efficient solution for your network requirements.
Transmission Distance: You can customize the transceiver's transmission distance based on your specific requirements. Options may include shorter distances for data center or campus networks, or longer distances for metro or long-haul applications.
Wavelength: Depending on your network infrastructure and compatibility requirements, you may customize the transceiver's wavelength. Common options include 850nm for multi-mode fiber or 1310nm/1550nm for single-mode fiber.
Connector Type: The transceiver can be customized with different connector types, such as LC, SC, or MPO, to align with your existing network infrastructure.
Temperature Range: If your deployment environment requires extended temperature support, you can discuss customization options for operating temperature ranges to ensure optimal performance in extreme conditions.
Power Consumption: Customizing power consumption may be beneficial if you have specific power constraints or energy efficiency requirements for your network.
Digital Diagnostics Monitoring (DDM): DDM functionality allows real-time monitoring of the transceiver's operating parameters. You can discuss with the manufacturer about customizing the DDM features based on your monitoring needs.
Tailored Transmission Distance: The transceiver's transmission distance can be customized to meet your specific needs. This can include shorter distances for data center or campus networks, or longer distances for metro or long-haul applications.
Wavelength Customization: Depending on your network requirements and compatibility, the transceiver's wavelength can be customized. This may involve options such as 850nm for multi-mode fiber or 1310nm/1550nm for single-mode fiber.
Connector Type: Customization options are available for the transceiver's connector type. This can include LC, SC, or MPO connectors to align with your existing network infrastructure.
Extended Temperature Range: If your deployment environment requires extended temperature support, customization options can be explored to ensure optimal performance in extreme conditions.
Power Consumption: Customizing power consumption can be beneficial if you have specific power constraints or energy efficiency requirements for your network.
Digital Diagnostics Monitoring (DDM): Customization options for DDM functionality can be discussed to meet your specific monitoring needs.
The 25G SFP28 Transceiver is packaged and shipped in a cardboard box. The box is made of strong cardboard and is designed to provide a secure and safe packaging that can withstand shocks, vibrations and other environmental factors. The box also contains all the necessary components for installation.
The box is labeled with the product name, size, weight, and other necessary information. The box also contains instructions for proper installation. The box is also provided with a tracking number so that customers can track the shipment.
The 25G SFP28 Transceiver is shipped via standard shipping carriers such as FedEx, UPS, and USPS. Shipping times and rates depend on the destination and the carrier selected.
Reference Datasheet File code: DS240005
|
|
