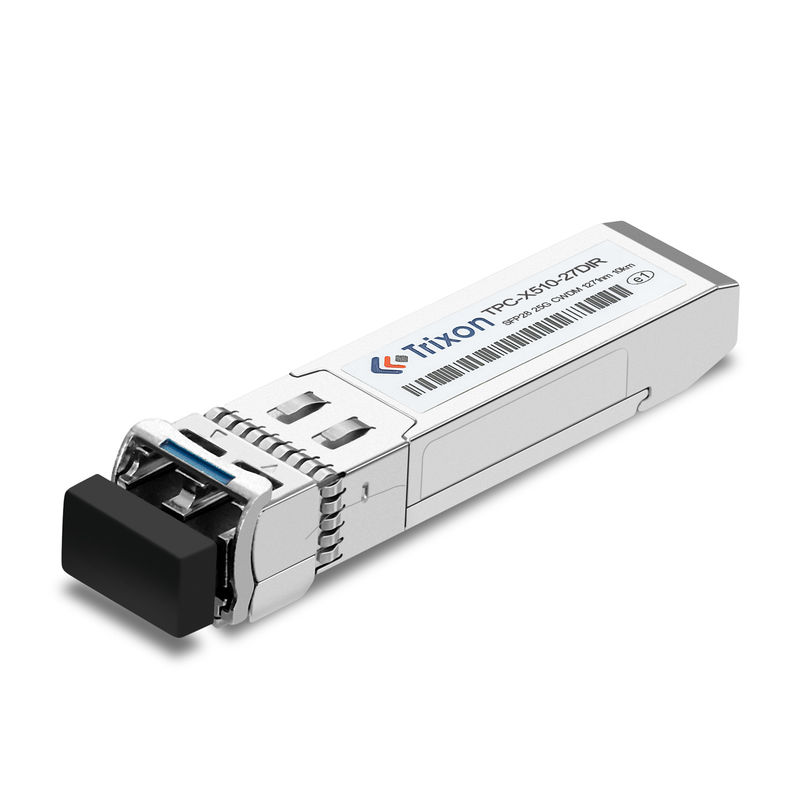

25G SFP28 Optical Transceiver with CWDM-1271nm-1371nm Wavelength,10km,-40~+85℃,TPC-X510-27~37DIR
The 25G SFP28 Transceiver is a high performance, cost effective, and reliable BIDI optical module. It is compliant with SFP28 MSA and IEEE 802.3by specifications. This 25G SFP28 transceiver is designed for 25G Ethernet, 25G Fibre Channel, and other applications. The device is capable of transmitting up to 10km distance on single-mode fiber. It is designed with built-in DDM/DOM technology to provide real-time monitoring of the optical link performance. The module supports 3.3V voltage supply and a wide temperature range of -40℃ to +85℃. With low power consumption, high reliability, and good EMI performance, it is the ideal solution for 25G SFP28 optical data transmission.
| Attribute | Value |
|---|---|
| Product Name | 25GBASE-LR CWDM Transceiver |
| Data Rate | Up To 28Gbps |
| Temperature Range | -40~+85℃ |
| Wavelength | CWDM-1271nm~1371nm |
| Connector | LC |
| Compliant | SFP28 MSA Compliant |
| DDM/DOM | Yes |
| Voltage Supply | 3.3V |
| Distance | 10km |
| Fiber Type | SMF |
| Keywords | BIDI, 25G SFP28 Optical Transceiver, BIDI SFP28, SFP28 BIDI |
Performance Specifications – Optical
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λt | λ-6.5 | λ*note5 | λ+6.5 | nm |
| Spectral Width(-20dB) | Pm | - | - | 1 | nm |
| Average Optical Power, each Lane | Pavg | 0 | - | +6 | dBm |
| TDP, each Lane | 1271-1311 | 1 | dB | ||
| 1331-1351 | 4 | dB | |||
| 1371 | - | - | 4.5 | dB | |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Receiver | |||||
| Center Wavelength | Λr | 1260 | 1310 | 1410 | nm |
| Rceiver Sensitivity | - | -14*note6 | dBm | ||
| Receiver Overload | 3 | - | dBm | ||
| LOSS De-Assert | LOSd | - | -17 | dBm | |
| LOSS Assert | LOSa | -30 | - | dBm | |
| LOSS Hysteresis | 0.5 | - | dB | ||
Note5: The available transmitter center wavelengths (λ) are: 1271nm, 1291nm, 1311nm , 1331nm, 1351nm and 1371nm.
Note6: Receiver sensitivity is informative. Shall be measured with conformance test signal for . BER =5E-5
This 25G SFP28 Transceiver from Trixon is the ideal choice for 25GBASE-LR CWDM applications. Delivering advanced capabilities in a small form factor, this transceiver supports 25G transmission up to 10 km over single-mode fiber and provides BIDI support. With a CWDM wavelength of 1271nm~1371nm, this transceiver is designed with a durable LC connector, and works within a temperature range of -40°C to +85°C. It also features DDM/DOM support for real-time monitoring of the optical link.
This 25G SFP28 Transceiver from Trixon is the perfect solution for high-performance 25G Ethernet networks. It is a reliable and cost-effective choice for data centers, enterprise networks, and wide area networks.
Brand Name: Trixon
Model Number: TPC-X510-27~37DiR
Place of Origin: CHINA
Product Name: 25GBASE-LR CWDM Transceiver
DDM/DOM: Yes
Compliant: SFP28 MSA Compliant
Fiber Type: SMF
Connector: LC
Keywords: BIDI, BIDI, 25G SFP28 Optical Transceiver
Trixon 25G SFP28 Optical Transceiver is a fully compliant transceiver with DDM/DOM support. It supports 25Gbps data rates and reaches up to 10km with SMF. The transceiver is compliant with SFP28 MSA and supports LC type connector for easy installation. It is ideal for high speed BIDI applications.
25G SFP28 Transceiver provides technical support and services for its customers. Our technical support team can provide direct assistance with any questions or issues related to the product. We also provide a range of services such as installation, maintenance and troubleshooting. Our team of experts can help diagnose any issue you may have and provide the best solution.
For more information on our technical support and services for the 25G SFP28 Transceiver, please contact our team at info@example.com.
The 25G SFP28 Transceiver is packaged and shipped in a secure, well-sealed box with bubble wrap. The box also includes operating instructions, warranty information, and a contact card for customer service. All components should be inspected upon receipt and before installation. The box should be stored in a cool, dry location to prevent damage and deterioration.
Reference Datasheet File code: DS090034
